MedVault® 2.5 | USER GUIDE
KNOX COMPANY | 800-552-5669 | TECHSUPPORT@KNOXBOX.COM | KNOXBOX.COM | OPE-MVUSER-0471-B | PAGE 9 of 15
5. Pull the hinge lock away from the hinge. Set aside the hinge lock and screws for safe keeping.

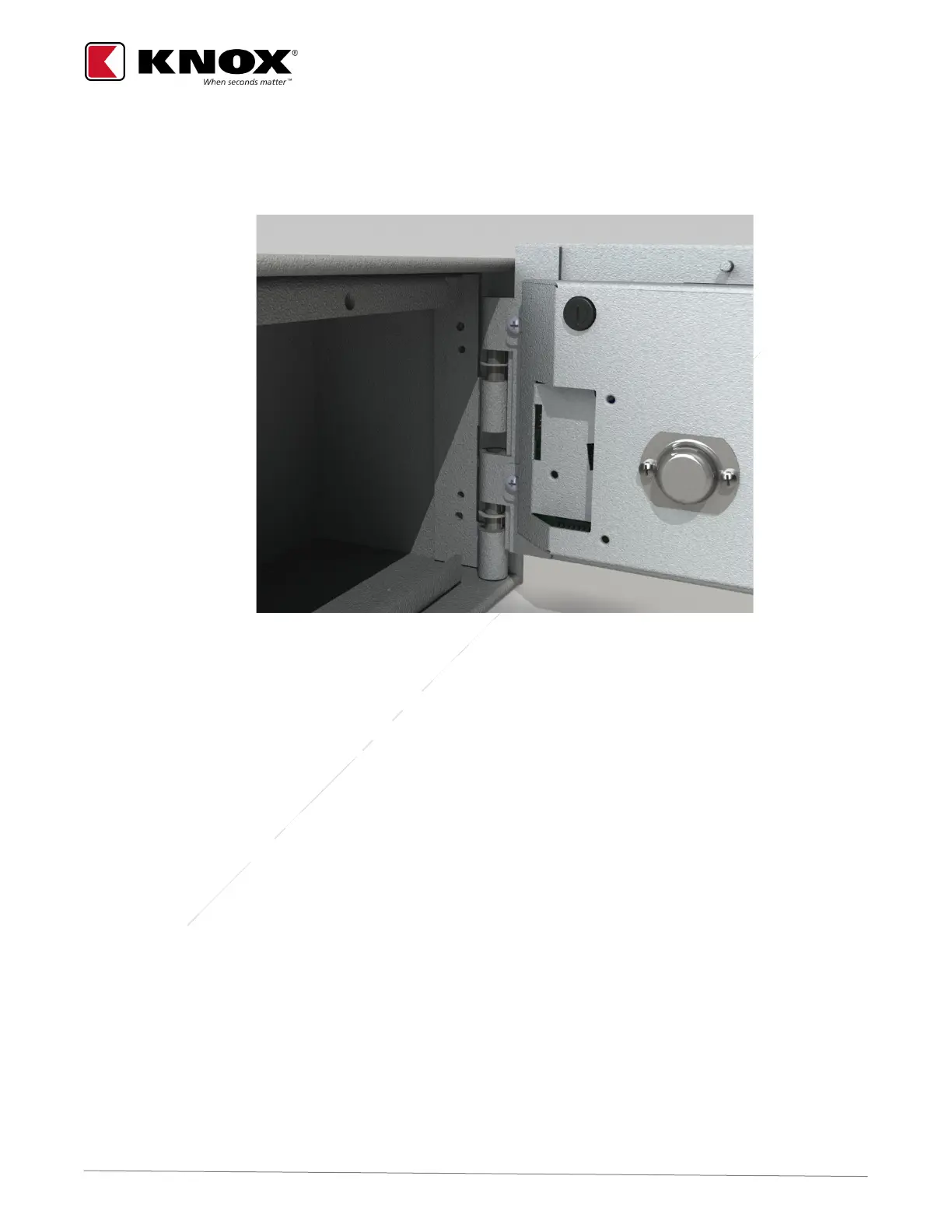

6. Slide the door up and pull toward you to remove the door from the hinge pins. Note picture is of Mini
MedVault
7. Reattach wire access panel with screws to door for shipping.
8. Reattach the hinge lock to the door with the two security screws, tightened finger-tight, for safe-keeping.
9. Retain the Knox security screw removal bit for reassembly.
Attaching the Door
To reattach the door:
1. Remove the temporarily attached hinge lock by removing the two security screws (if attached).
2. Position the door, interior side facing left, hinges facing away from you, with the hinge knuckles just above
and touching the hinge pins.
For MedVault Mini, push the knuckles in and down to slip the knuckles over the two hinge pins
simultaneously. A rubber mallet may be used to assist sliding the door on the pins. Avoid using metal
tools as these could damage the door and affect door security.
3. Reinstall the hinge lock by placing it back in its original position, with its knuckles inserted between the
door hinge knuckles.
4. Install the hinge lock security screws and finger-tighten.
5. Use the Knox security screw removal bit to further tighten the security screws. DO NOT OVER-TIGHTEN.
6. Use a screwdriver to open the door wire cover.
