OPERATING INSTRUCTIONS
You can replace the new line in another way:
WARNING
• To prevent serious personal injury, remove the
battery pack from the tool before servicing,
cleaning, changing attachments or removing
material from the unit.
a. Remove the remaining lines rst, if not, go
directly to step b.
• Press the two release tabs on the spool base
and remove the spool retainer. Remove the
line.
• Reinstall the spool retainer in such a way that
the threading hole on the spool retainer is
aligned with one of the eyelets (Fig. 9e).
b. Rotate the bump head to make sure that the
arrow on the cutting head cover is aligned with
the arrow on the bump head (Fig. 9f).
c. Insert the new line into the eyelet marked LINE
IN. Feed the line until the end of the line comes
out of the other side eyelet of the spool base
(Fig. 9f).
d. Pull the line from the other side until equal
amounts of line appear on both sides.
e. Hold the spool base and rotate the bump head
in the direction indicated by the arrow to wind
the cutting line into the cutting head (Fig. 9g).
f. Push down on the bump head and check for
proper release of the cutting line.

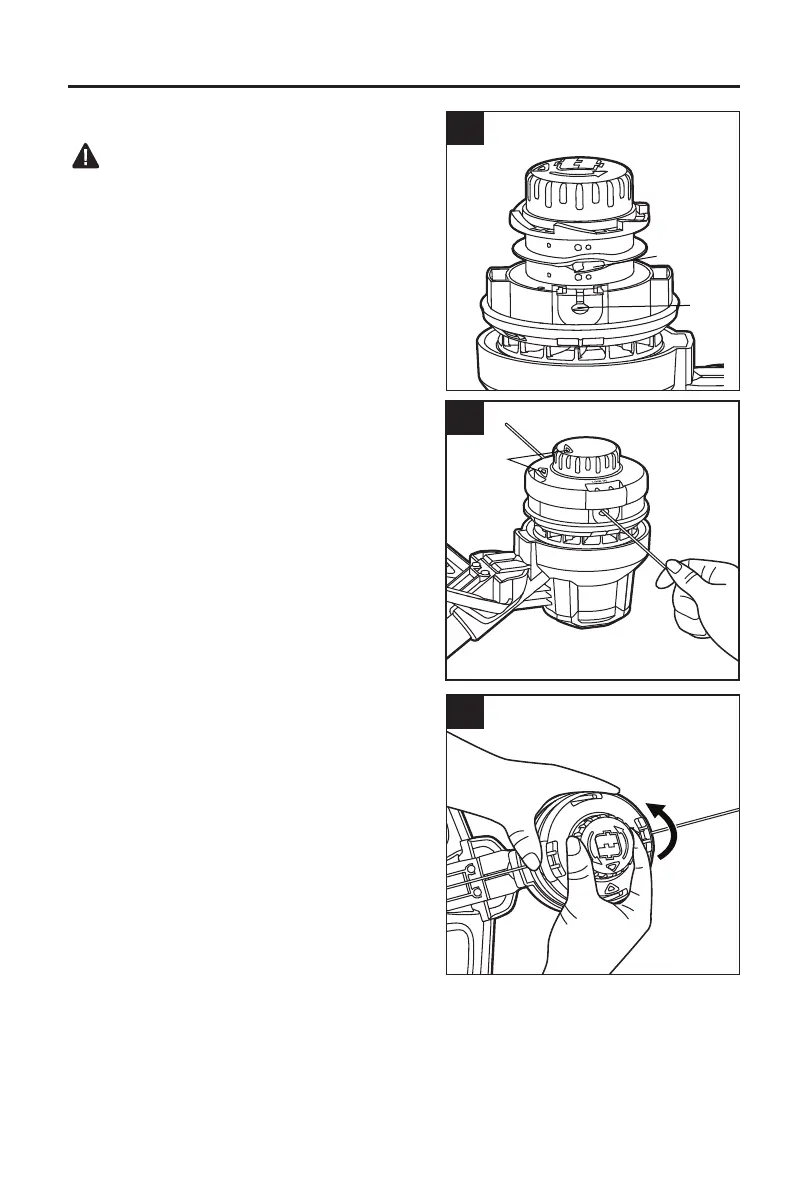

9e
Threading
hole
Eyelet
9g
9f
Arrows
To Next Page
