OPERATING INSTRUCTIONS

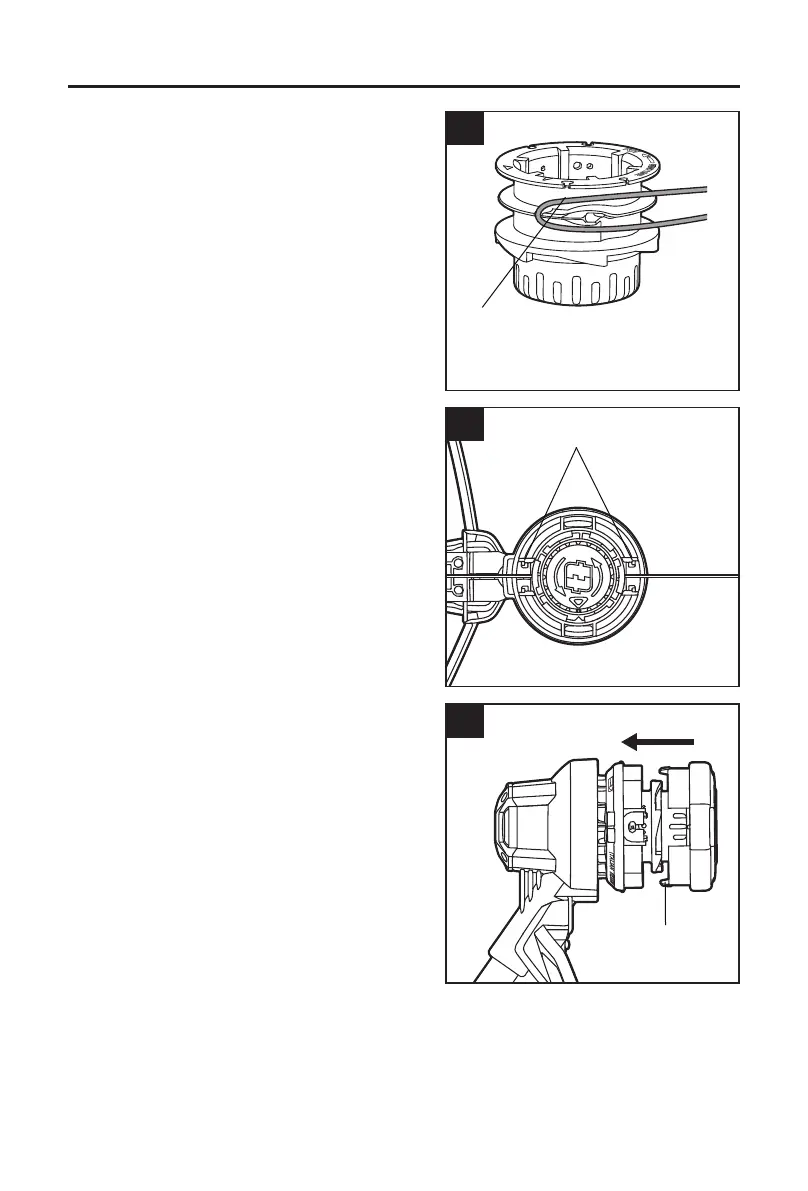

d. Fold the cutting line in half and hook the folded
end of the cutting line as shown in Fig. 9b.
e. Wind the line, in two even and tight layers,
onto the spool retainer.
NOTICE: Failure to wind the line in the direction
indicated will cause the cutting head to operate
incorrectly.
f. Place the ends of the line in two opposite
eyelets (Fig. 9c).
g. Align the two tabs on the spool base with the
slots on cutting head and press it until it snaps
into place (Fig. 9d)
NOTICE: Make sure that the tabs on the spool
base snap into place, otherwise the spool will
come out during operation.
9b
9c
9d
Tab
Spool
retainer
Eyelets
