OPERATING INSTRUCTIONS

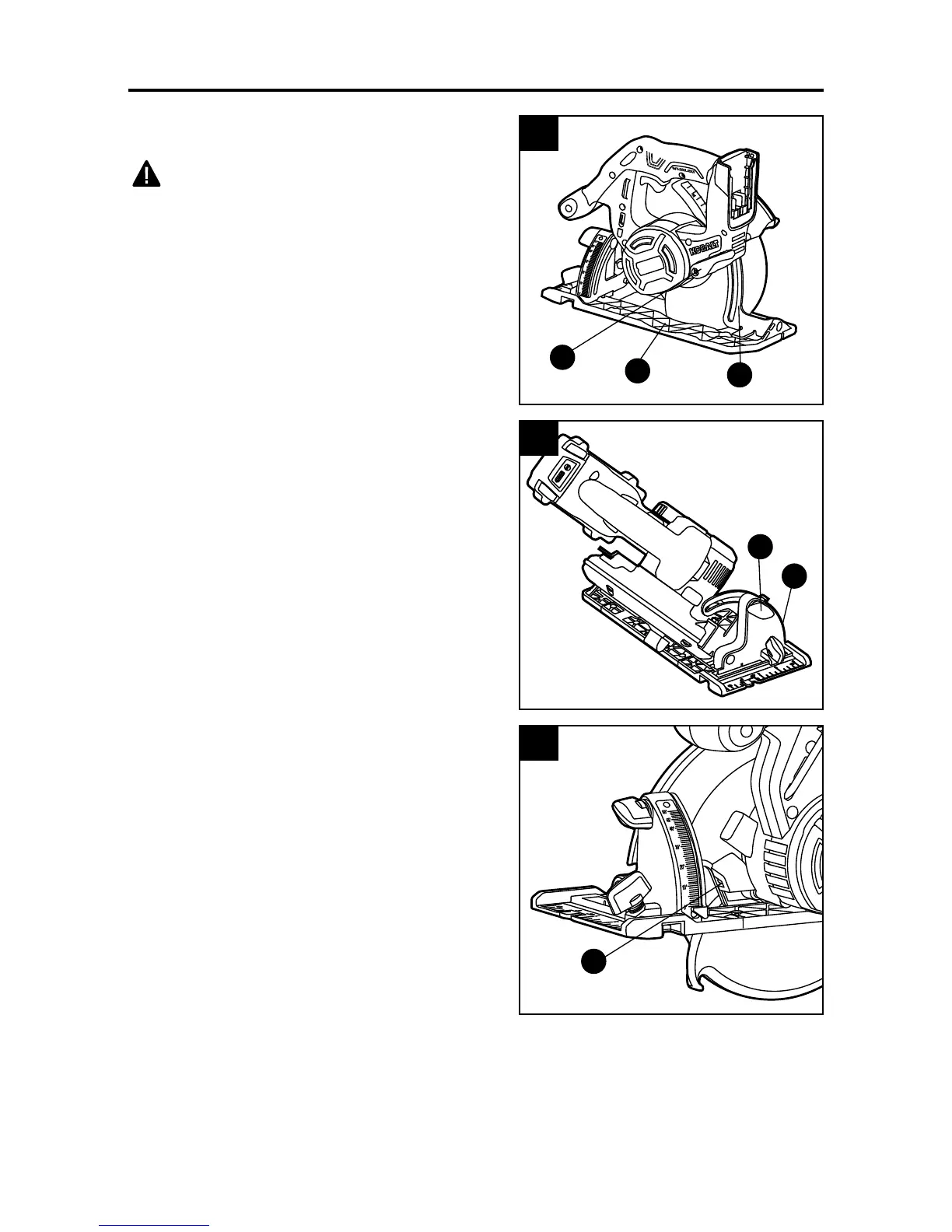

4. Adjusting the Cutting Depth
WARNING
Always maintain the correct blade-depth setting.
The correct blade-depth setting for all cuts should
not exceed the thickness of the material being cut
by more than 1/4 in. (6.5 mm). Greater blade depth
will increase the chance of kickback and cause the
cut to be rough.
a. Remove the battery pack from the saw.
b. Raise the depth-locking lever (U) to release it.
c. Hold the base shoe (M) against the workpiece
and raise or lower the saw until the indicator mark
on the saw aligns with the desired depth on the
depth scale (T).
d. Lower the depth-locking lever to lock it into
position.
5. Adjusting the Cutting Angle
a. Remove the battery pack from the saw.
b. Loosen the bevel-locking knob (Q), located on
the 0°-50° bevel scale (O).
c. Tilt the body of the saw until the indicator mark
on the saw aligns with the required angle on
the bevel-angle scale.
d. Tighten the bevel-locking knob to secure the
saw.
6. LED worklight
The circular saw is equipped with an LED worklight
(V) that will illuminate when the trigger switch is
depressed. This provides additional light on the
surface of the workpiece for operation in lower-light
areas.
The LED worklight will turn off after the trigger
switch is released.
a. The LED worklight will blink rapidly if the tool
has stopped working in order to protect internal
circuits; please wait for the tool to cool down, at
which point it can be started again.
b. The LED worklight will blink slowly to indicate
that the battery charge is very low.
6
V
5
Q
O
4
U
M
T
