Kobalt KSP 2040-06 - Assembly Instructions; Assembling the Gun

8
ASSEMBLY INSTRUCTIONS

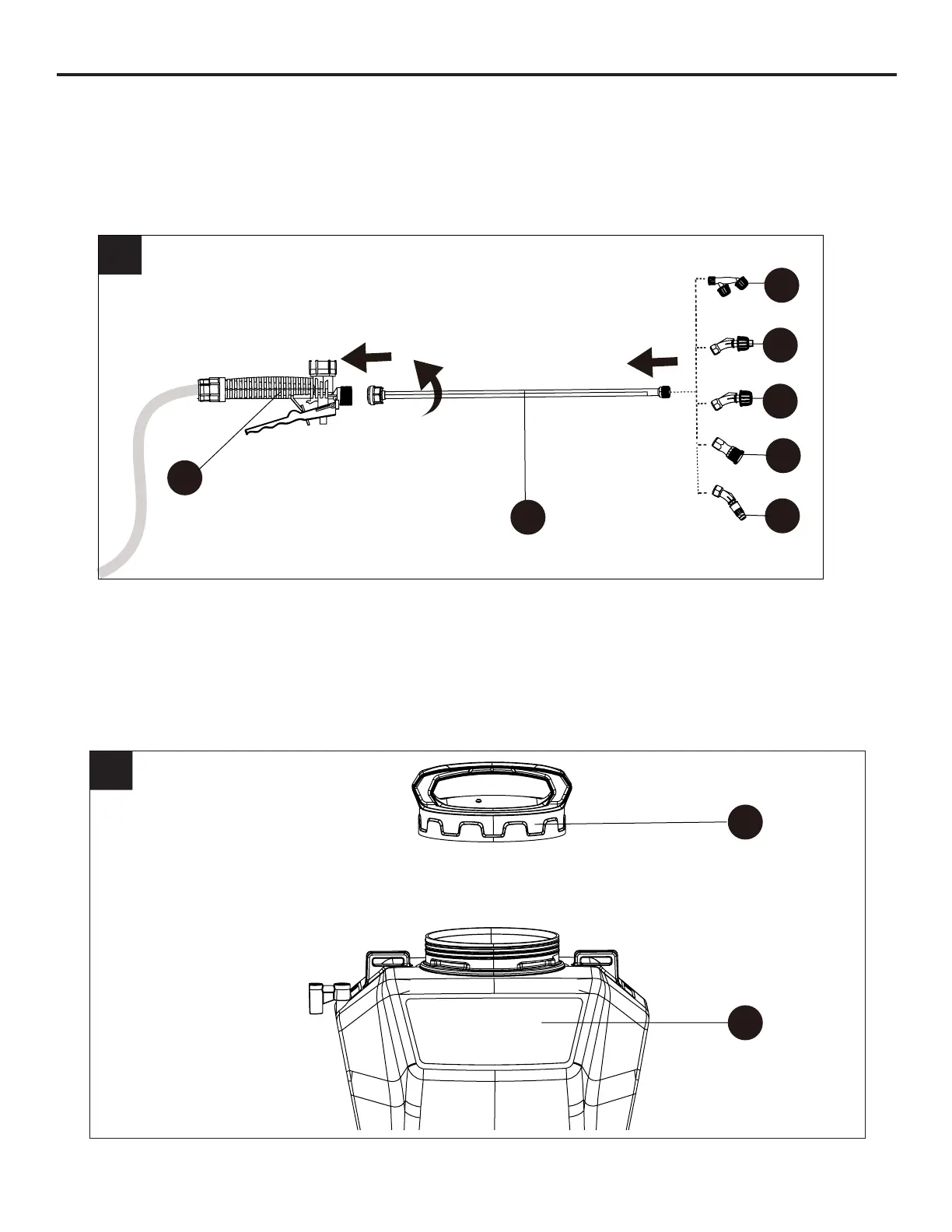

1. ASSEMBLING THE GUN
• Connect the nozzle (F1-F5) to the wand (G), turn clockwise until the tabs lock into place to ensure
leak-free connection.
• Connect the wand (G) to the gun handle (H), turn clockwise until the tabs lock into place to ensure
a leak-free connection.
2. ASSEMBLING THE TANK LID
• Connect the tank lid (A) to the tank (B) , turn clockwise until the tabs lock into place.
2
A
B
G
H
1
F5
F1
F2
F3
F4
