ASSEMBLY INSTRUCTIONS
Tile Cutting Wheel
For maximum performance and safety, it is recommended that you use the 7 in. cutting wheel provided
with your saw. Additional cutting wheels are sold separately.
WARNING
• DO NOT use cutting wheels rated less than the no load speed of this tool. Failure to heed this
warning could result in personal injury. DO NOT use a wheel with cracks, gaps, or teeth.
Installing the Tile Cutting Wheel
WARNING
• A 7 in. tile cutting wheel is the maximum wheel capacity of the saw. NEVER use a wheel that is
too thick to allow wheel washer to engage with the ats on the spindle. Larger wheels will come
in contact with the splash guard, while thicker wheels will prevent the wheel bolt from securing
the wheel on the spindle. Either of these situations could result in serious accident and can cause
serious personal injury.

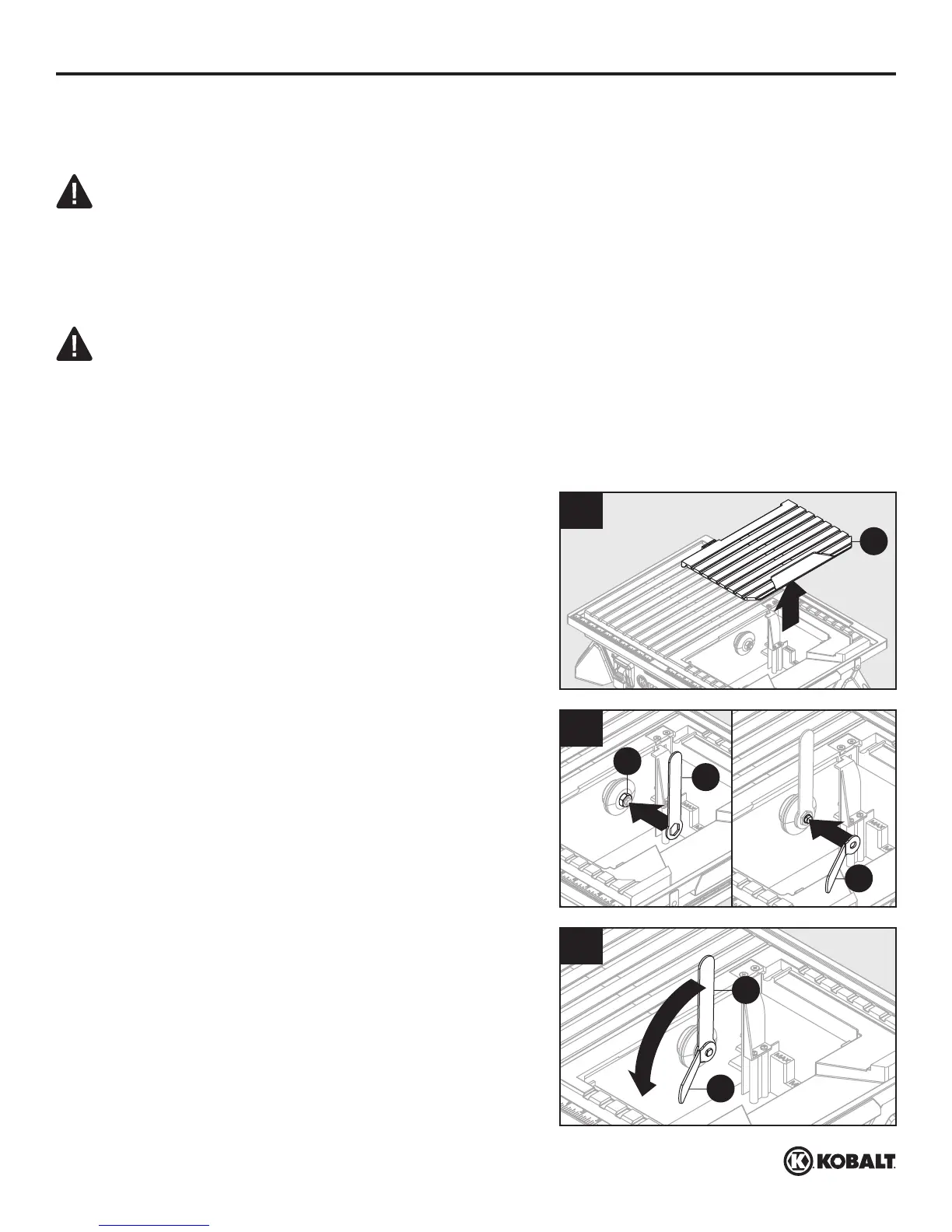

1. Unplug saw and remove bevel table (L).
2. Place arbor nut wrench (M) on arbor nut (FF), then
slide arbor wrench (N) onto arbor.
3. Holding arbor wrench (N) rmly to prevent the wheel
from moving, loosen arbor nut (FF) in a
counterclockwise direction with arbor nut wrench (M).
1
L
2
M
N
FF
1
2
3
M
N
