ASSEMBLY INSTRUCTIONS

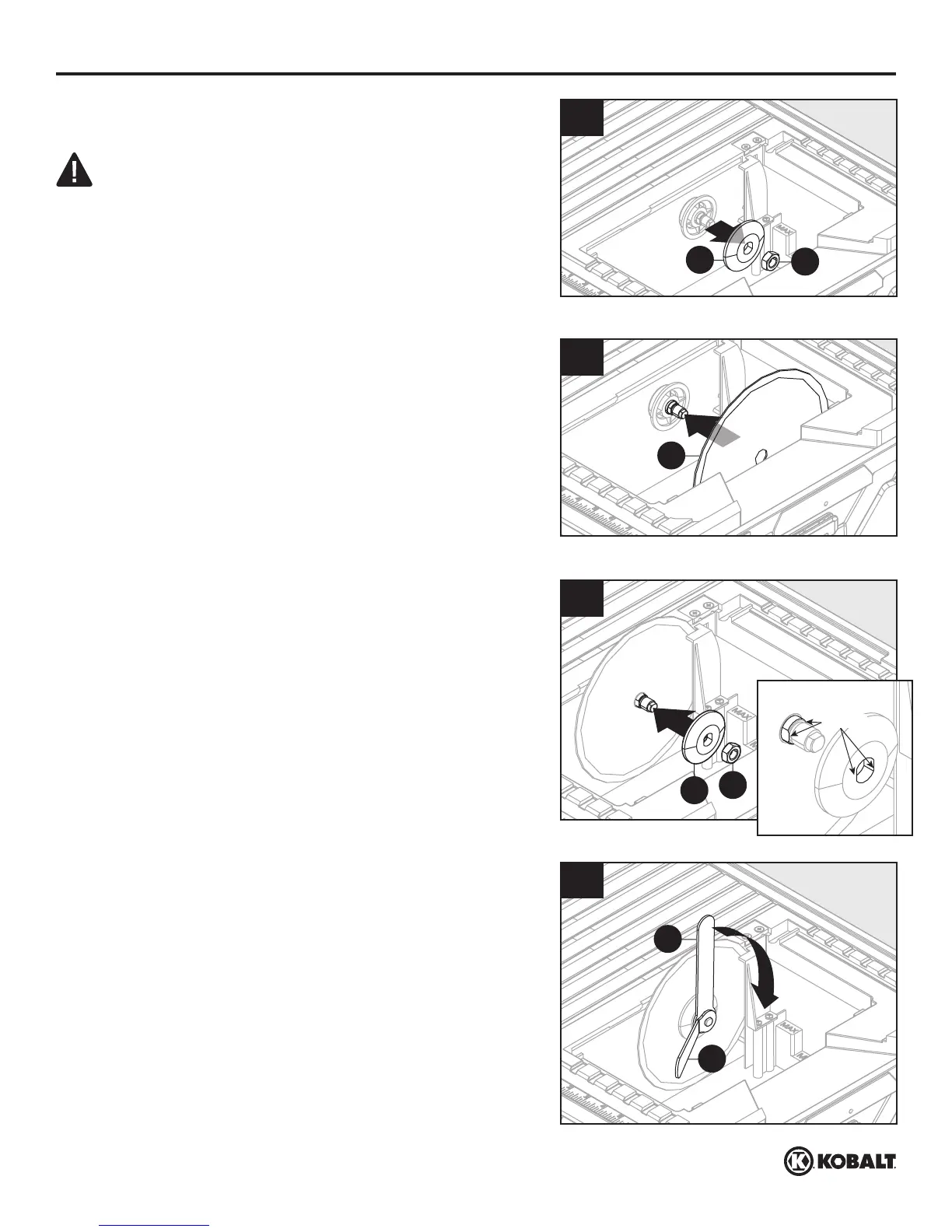

4. Remove arbor nut (FF) and outer washer (HH),
leaving the inner washer on the arbor.
WARNING
•ALWAYS install the inner wheel washer before placing
wheel on arbor. Failure to do so could cause an
accident since the wheel will not tighten properly.
NEVER use wheels that have openings, grooves, or
teeth on this tool.
5. Place cutting wheel (J) onto arbor with arrows
on wheel going in the counterclockwise direction.
6. Replace outer washer (HH). The double “D” ats on
washers align with ats on arbor. Replace arbor nut
(FF) on arbor. Make sure at side of arbor nut
touches outer washer (HH).
7. Using arbor nut wrench (M) and arbor wrench (N),
tighten arbor nut securely.
4
FF
HH
5
J
6
FF
HH
FlatsFlats
7
M
N
