14
kobalttools.com
ASSEMBLY INSTRUCTIONS

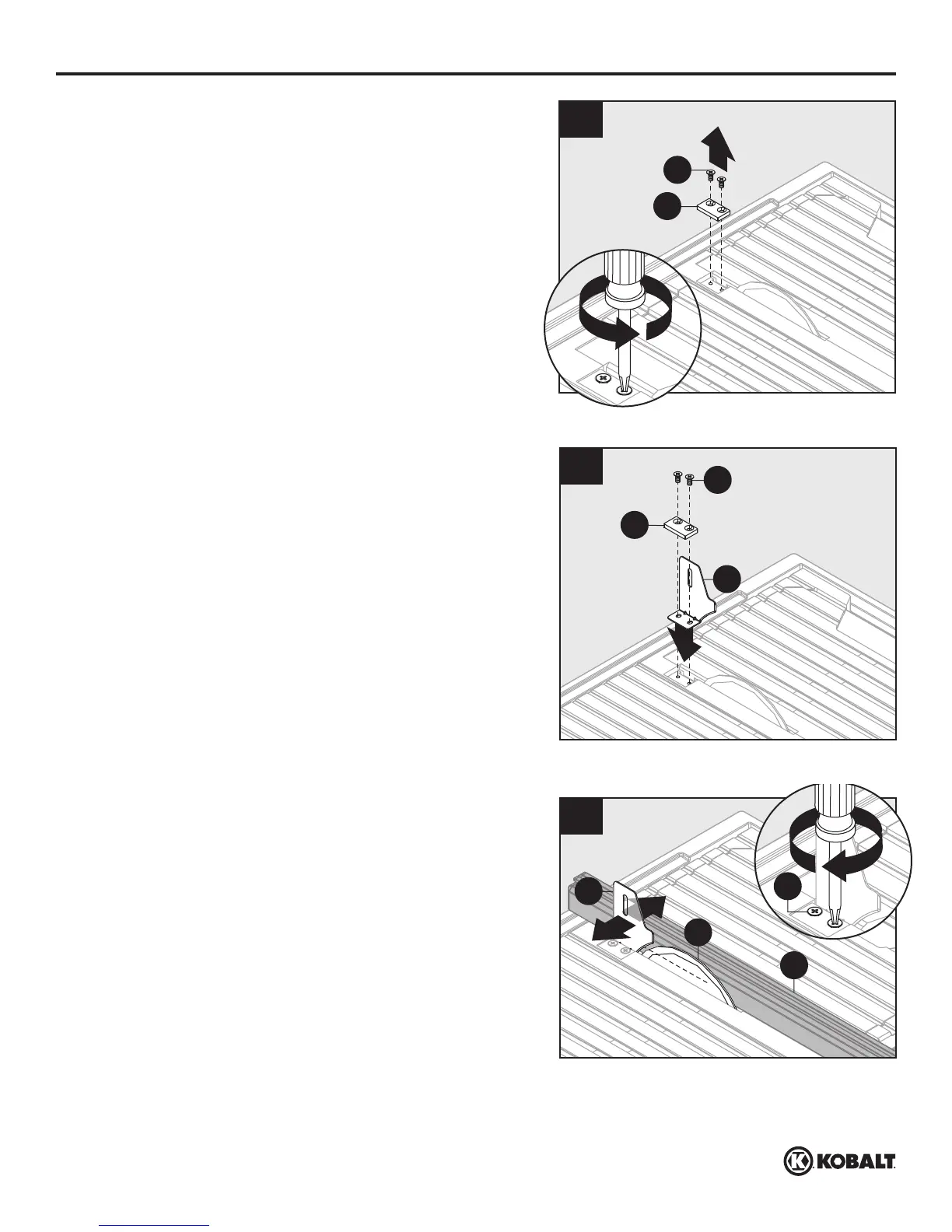

Installing Blade Guard Assembly
1. Loosen and remove screws (DD) and xing plate
(EE) with a Phillips screwdriver (not included).
2. Place riving knife (F) onto the mounting area on
table. Reinstall screws (DD) through xing plate
(EE) and table and into riving knife (F).
3. To maximize cut quality, align riving knife (F)
with the cutting wheel (J). Tighten screws (DD).
Note: Rip guide rail (D) can be used as alignment
tool if needed.
1
1
3
F
J
D
DD
2
EE
F
DD
2
1
EE
DD
