ASSEMBLY INSTRUCTIONS
4
F
E

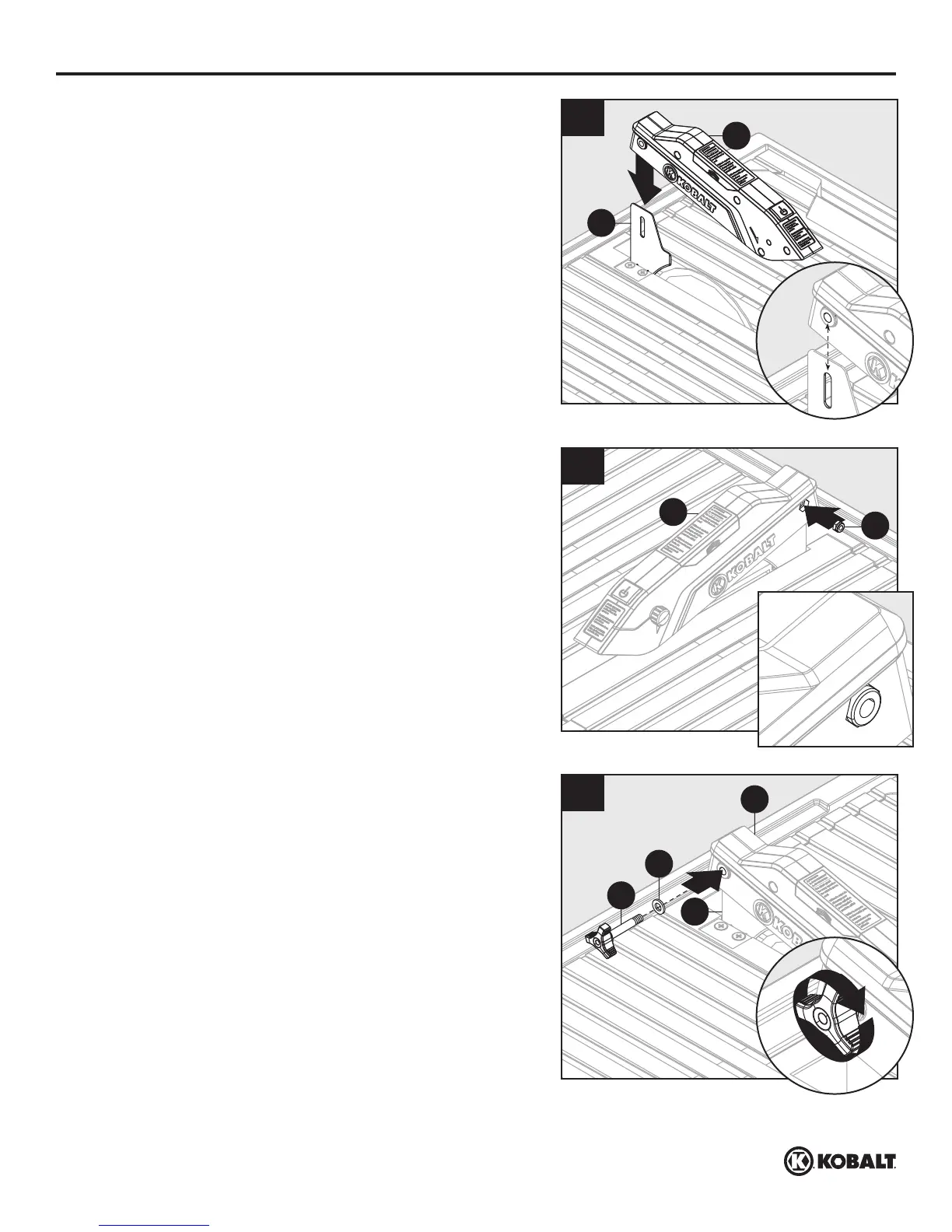

4. Slide blade guard assembly (E) over riving knife (F)
and align holes in blade guard assembly (E) with slot
in the riving knife (F).
5. Place lock nut (AA) onto hollow hex-shaped area on
blade guard assembly (E) and hold in place.
6. Thread hex bolt with knob (CC) through
washer (BB), blade guard assembly (E) and riving
knife (F). Tighten to the desired height.
Note: ALWAYS adjust the blade guard horizontally to
the table and slightly above tile thickness. Blade guard
should not touch the tile.
5
AA
E
1
2
6
CC
BB
E
F
