16
kobalttools.com
ASSEMBLY INSTRUCTIONS

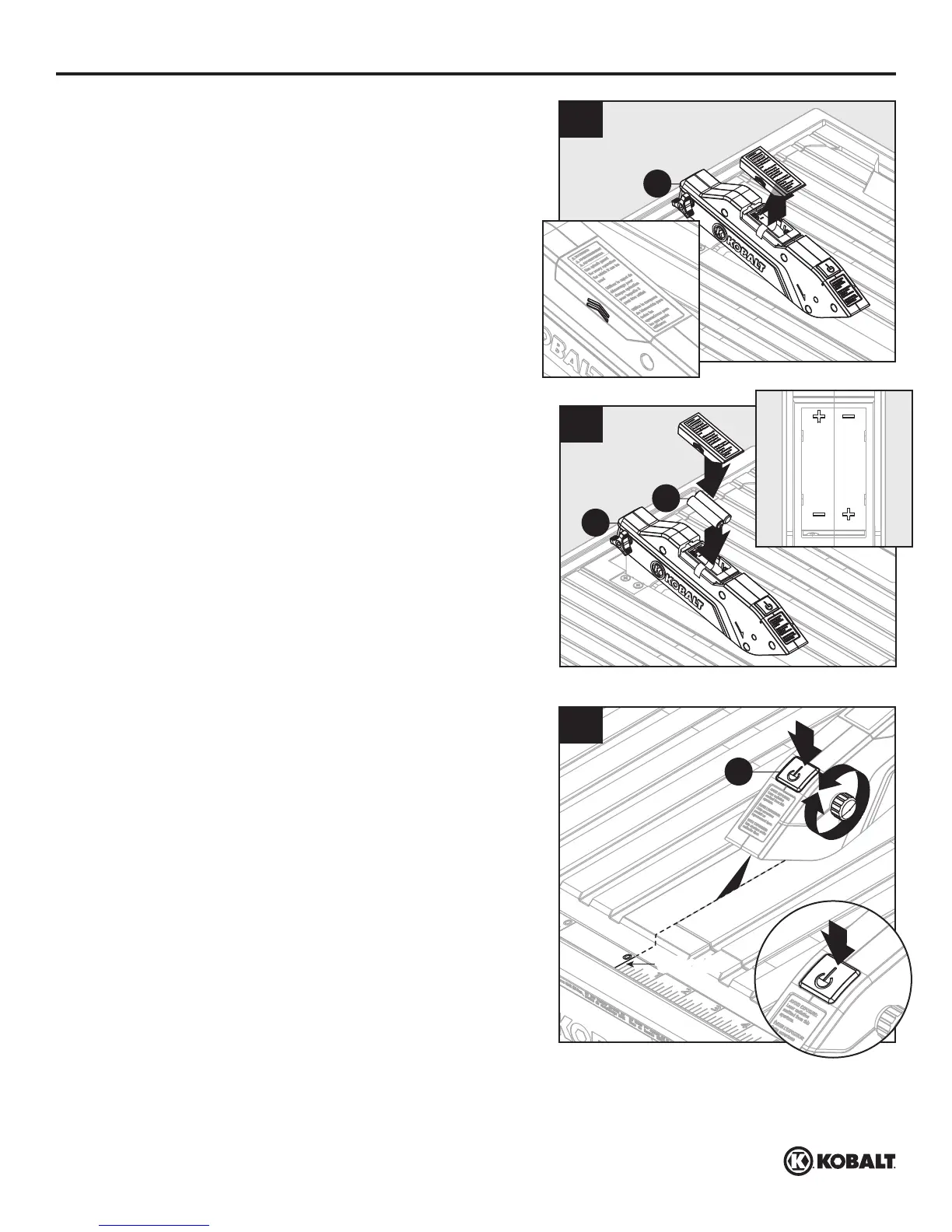

Installing the Laser Batteries
1. On top of blade guard assembly (E), pull cover of
battery compartment in direction of arrow molded
into the battery cover to remove.
2. Place two AAA batteries (JJ) into battery
compartment. Take care to insert batteries with
the correct polarity as indicated inside battery
compartment. Replace the cover.
Adjusting the Alignment of the Laser
1. Turn on laser by pressing button on blade guard
assembly (E). Rotate the knob on the right of
blade guard assembly (E) until laser beam aligns
with 0 scale. Press button again to turn off the
laser.
1
E
2
1
2
E
JJ
2
2
1
3
1
E
0 Scale
0 Scale
To Next Page
