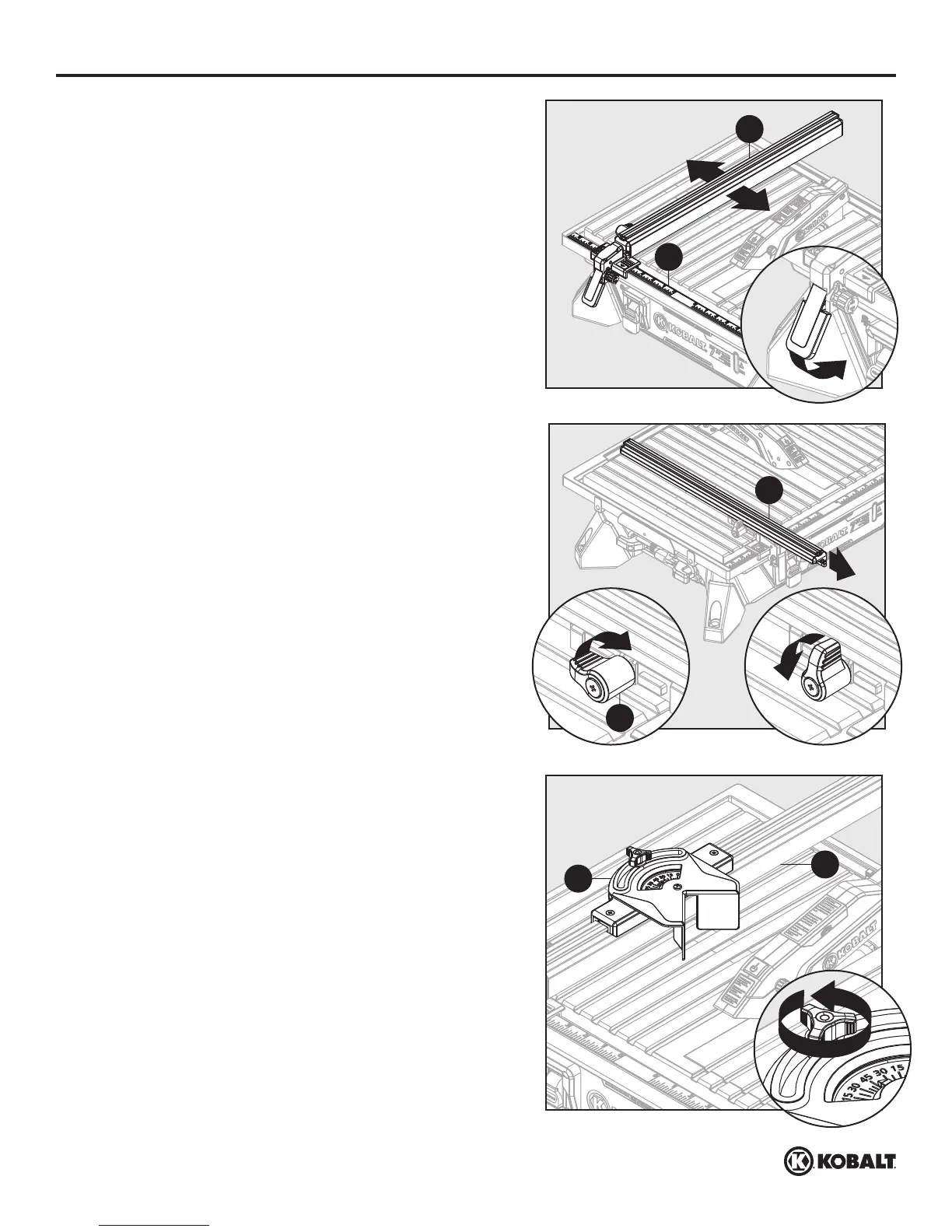

USING THE RIP GUIDE
The rip guide can be used on either the left or the right
side of the cutting wheel. The at side of the rip guide
must ALWAYS be facing the cutting wheel. The locking
lever assembly can be repositioned for either side of
the rip guide. Refer to the Rip Guide Installation section
on page 17 if necessary.
• Place the rip guide rail (D) in the desired position using
the rip guide scale (P) located on front of the saw
table.
• To reposition the rip guide, refer to the Rip Guide
Installation section.
The rip guide rail (D) can be adjusted forward and
securely locked for maximum support on large tile.
USING THE MITER GAUGE
To adjust angles:
• Attach the miter gauge (C) to the rip guide.
• Loosen the lock knob and move the miter gauge to
the desired position.
• Securely tighten the lock knob.
1
1
P
D
C
D
2
1
II
D
