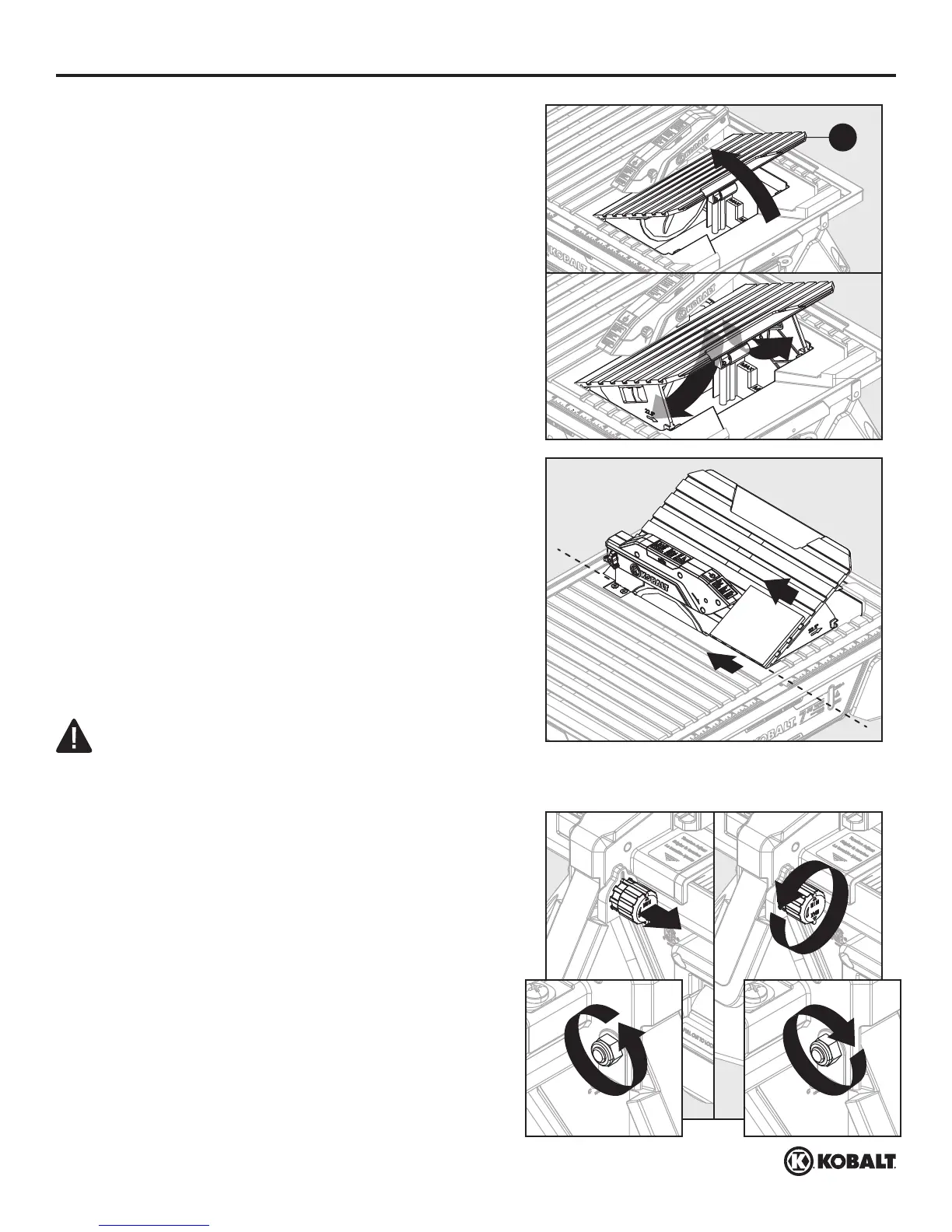

TO MAKE BEVEL CUT
Beveled 22.5° and 45° cuts can be made using the
bevel table.
• Using a marker or grease pencil, mark the area to be
cut on material.
• Remove the rip guide.
• Tilt the bevel table (L).
• On underside of the bevel table, pull down the table
legs into right angles of the plate.
–Use rst notches in legs to rest plate into 22.5° angle.
– Use second set of notches to angle bevel table into
highest 45° angle.
Note: Make sure bevel table is locked rmly in place
before beginning cut.
• Turn the on/off switch to the ON position
• Let the cutting wheel build up to full speed and wait
for the wheel to get wet before moving the material
into the wheel.
• Hold the material rmly against the bevel table and
feed the material into the cutting wheel.
• When the cut is made, turn the saw OFF. Wait for
the cutting wheel to come to a complete stop before
removing any part of the material.
ADJUSTMENTS
WARNING
Before performing any adjustment, make sure the tool is unplugged from the power supply and the
switch is in the OFF position. Failure to heed this warning could result in serious personal injury.
TO ADJUST CAM ON LOCKING LEVER ASSEMBLY
Over time the rip guide may become loose. If the rip
guide does not lock securely to the saw table,
adjustment may be required.
• Unplug the saw.
• Remove the locking lever assembly from the rip guide.
• Using a 8mm hexagonal open end wrench (not
included), loosen the nut securing the cam to the lever
assembly.
• Pull the cam out slightly and rotate the cam one tooth,
then align the teeth in the cam with the slots in the
side of the locking lever.
• Reinstall the nut and tighten securely.
Note: If the rip guide is still loose, repeat the above
steps as needed.
1
2
2
L
2
3
4
1
