4. For Rear 3-1/4” x 10” vent installation only:
- Remove attached 6” exhaust and discard.
(Figure 11) Keep 13 screws to install vent
covers.
- Remove duct knockout from back of the hood
and discard. (Figure 13) Unscrew 3-1/4” x 10”
Vent Cover from rear exhaust (located inside
hood); keep screws to install 3-1/4” x 10”
Exhaust.
- Align Top Vent Cover {E} and 3-1/4” x 10” Vent
Cover (removed from rear exhaust) using 14
screws (13 screws taken from 6” exhaust).
(Figure 13) Follow instructions in Step 5 to
attach Hood-Mounting Bracket {P} and two Duct
Cover Support {O} using 14 screws (13 screws
taken from 6” exhaust). (Figure 15)
- Attach the 3-1/4” x 10” Exhaust {D} to rear
exhaust (located inside hood) using 10 screws
taken from rear vent cover. (Figure 14)
CAUTION
: If moving the cooking range is
necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
And use a protective covering to protect cooktop
and/or countertop from damage.
5. Secure Hood-Mounting Bracket {P} and two Duct
Cover Support {O} on top of the hood with eight pre-
attached screws. Use four 3/16” x 3/8” screws {M}
for Hood-Mounting Bracket {P}. (Figure 15)
6. Using references on Table 2 and measurements on
page 16-17, mark the leveling point of the hood.
Position mounting screws (provided) on the wall,
leaving 1/8” away from the wall as shown in Figure
16.
7. Align Hood-Mounting Bracket {P} to the two screws
on the wall and hook hood into place. Tighten
screws to secure hood to the wall.
CAUTION
: MAKE SURE HOOD IS SECURE
BEFORE RELEASING

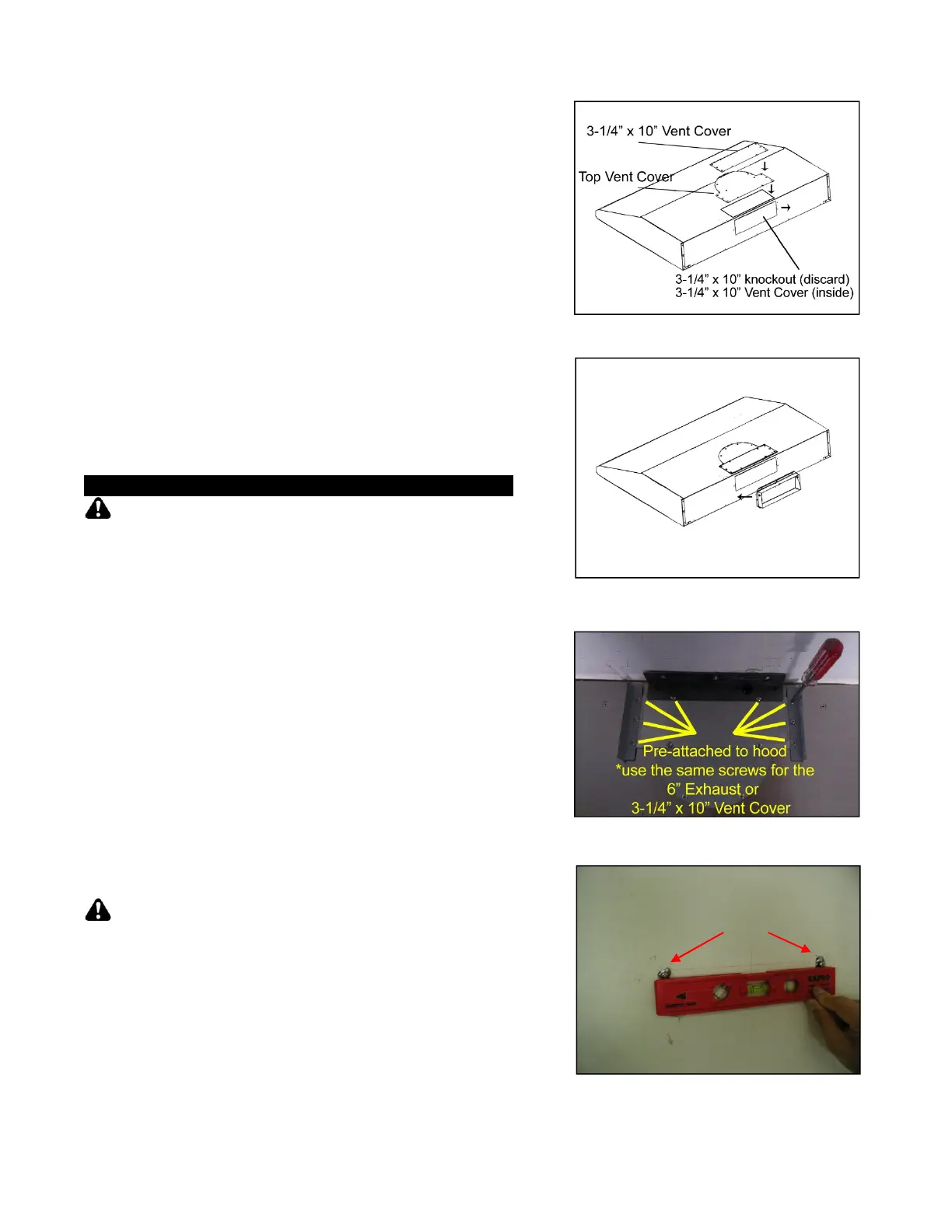

Figure 13
Figure 14
Figure 15
Figure 16
Mounting Screws
