REMOVAL OF CUTTING BLADES
If it becomes apparent during the visual inspection of the cutting blades that they need to be sharpened,
proceed as follows:
- Remove the retaining screws “A”.

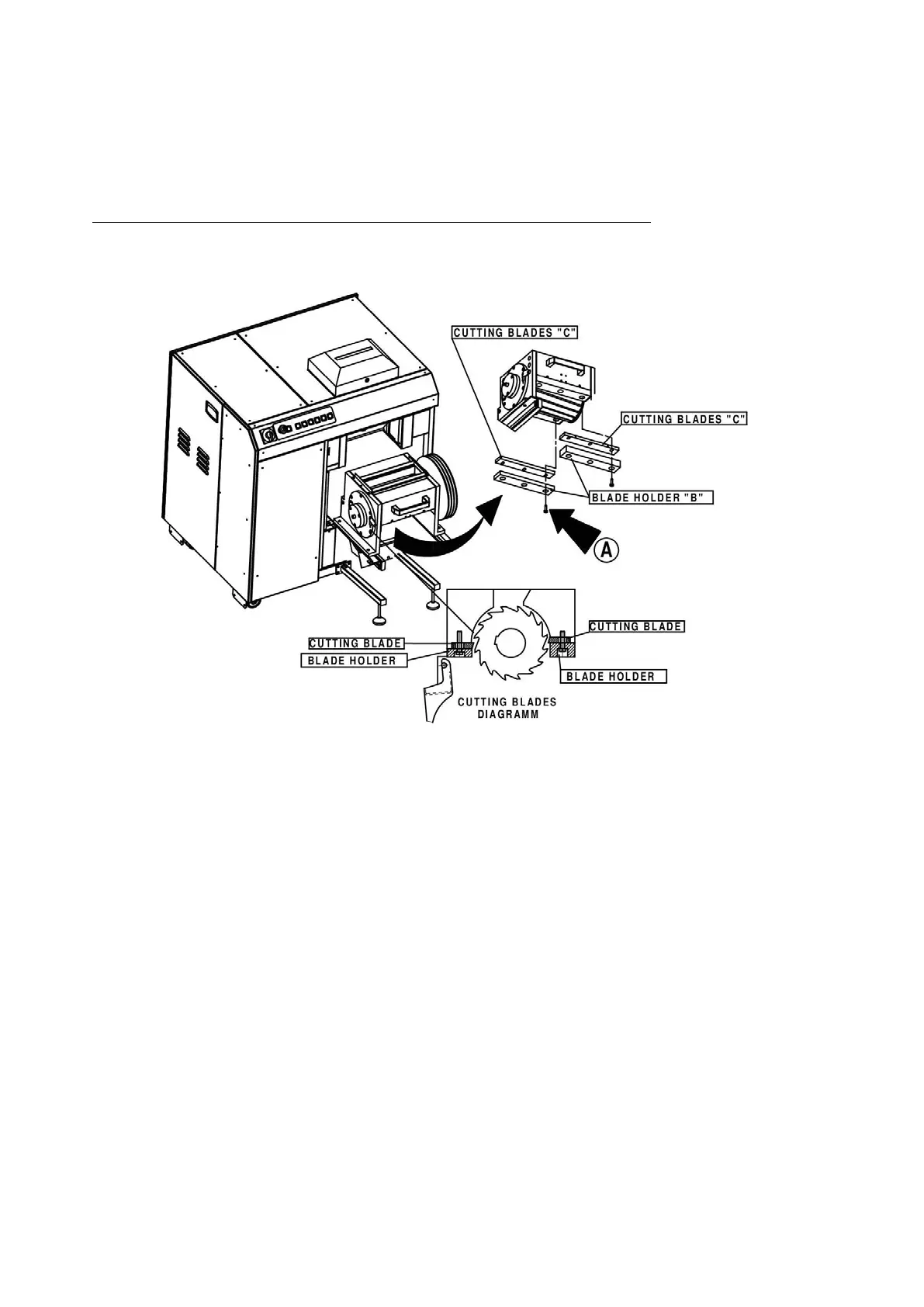

- Remove the blade supports “B” and cutting blades “C” as shown in the diagram.
N.B.! It is recommended that this operation be carried out by qualified personnel.
35
