REASSEMBLY OF CUTTING BLADES
After they have been sharpened, replace the cutting blades as follows:
- Position the cutting blades and blade holders as shown in the diagram.
- Fix the blades and holders with the retaining screws making sure not to tighten them fully.
- Use the adjustment screws to set a clearance of precisely 0.2 mm (visible through the
inspection window) between the central rotor and the cutting blades.
- When the clearance has been set fully tighten the cutting blade retaining scews.
- Tighten the inspection window retaining screws.

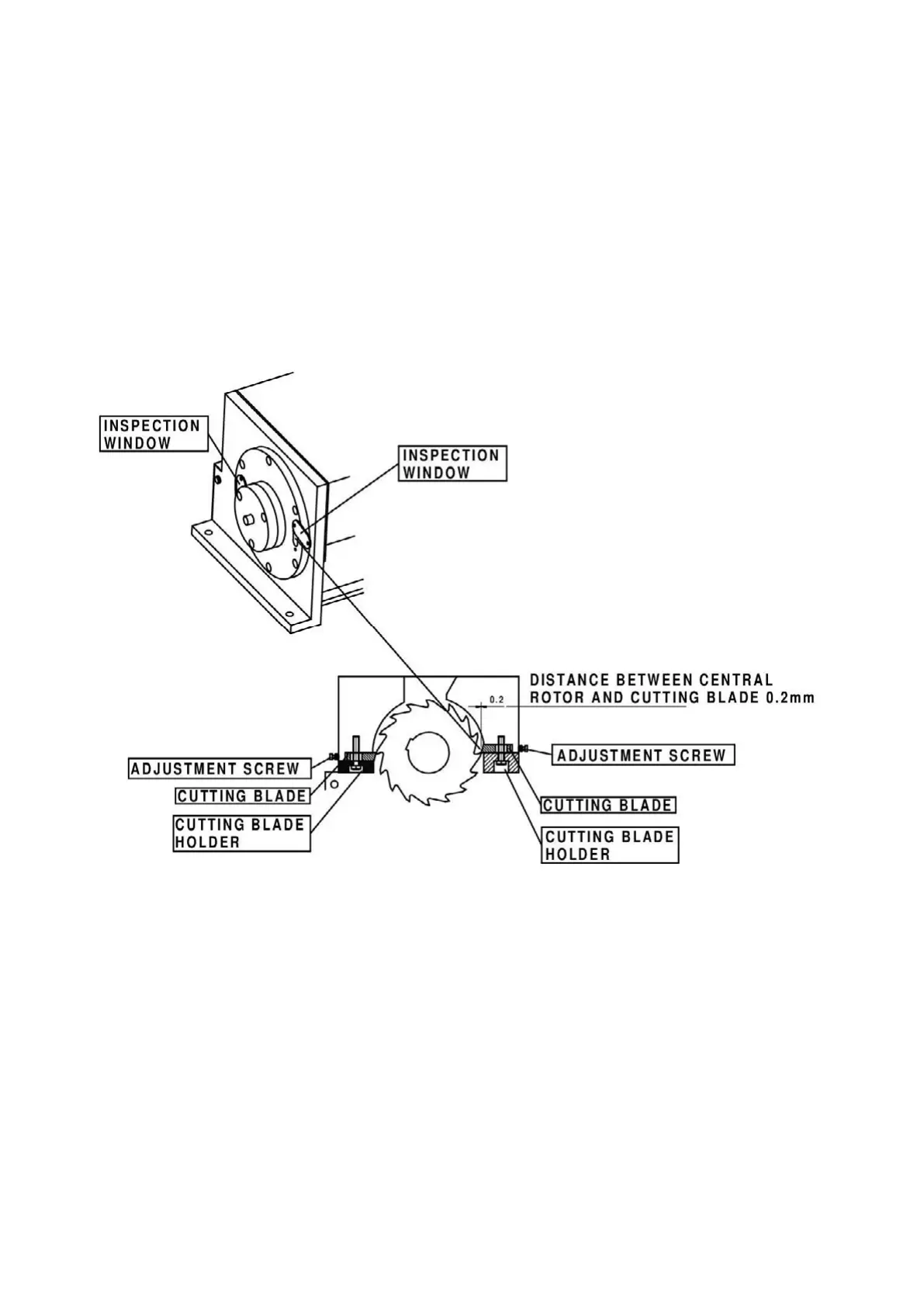

CUTTING BLADE ASSEMBLY DIAGRAM
36
