Adjustments
SM5440-1 – 18NOV97 25

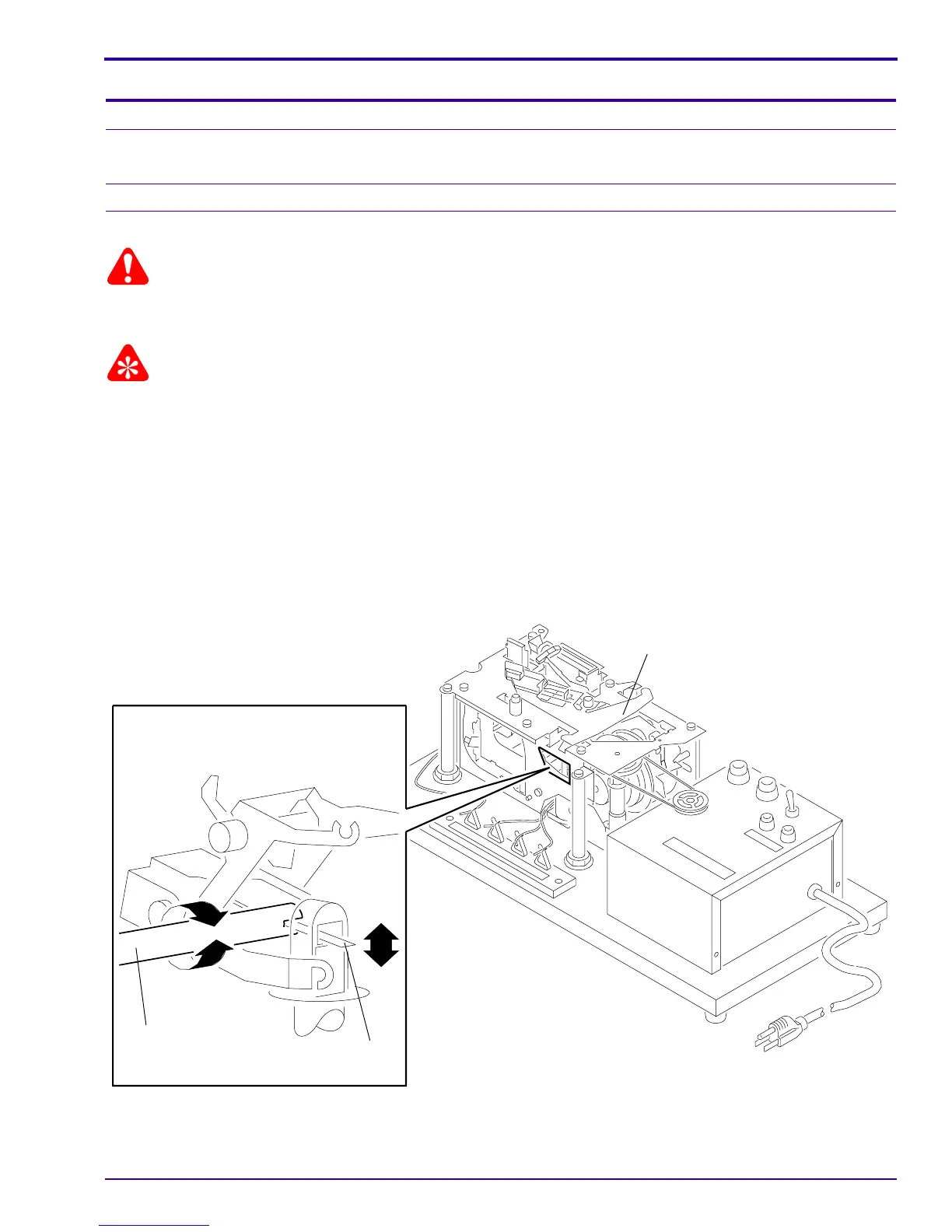

Section 2: Adjustments
Adjustment Specification
Use T-BAR TL-3003 to bend the CYCLE LEVER to adjust the CYCLE SOLENOID.
Adjusting the CYCLE SOLENOID
Warning
Dangerous Voltage
[1] Connect the main power.
Important
1. The CYCLE SOLENOID must operate correctly to do this adjustment.
2. The MECHANISM ASSEMBLY does not have to be removed to do this adjustment.
[2] Do the removal for the LOWER HOUSING ASSEMBLY.
[3] Bend the CYCLE LEVER up or down. Use T-BAR TL-3003.
[4] Energize the projector.
[5] Press the “FORWARD” BUTTON to check for correct operation.
[6] Press the “REVERSE” BUTTON to check for correct operation.
[7] Do the steps above until the FORWARD and REVERSE functions operates correctly.
A091_0007HA
TL-3003
T-BAR
CYCLE
BAR
A091_0007HCA
ASSEMBLY
MECHANISM
