Kodak Carousel 4200 - PHOTOCELL Voltages; 5-PIN REMOTE CORD PLUG Voltages

Diagnostics
SM5440-1 – 18NOV97 43

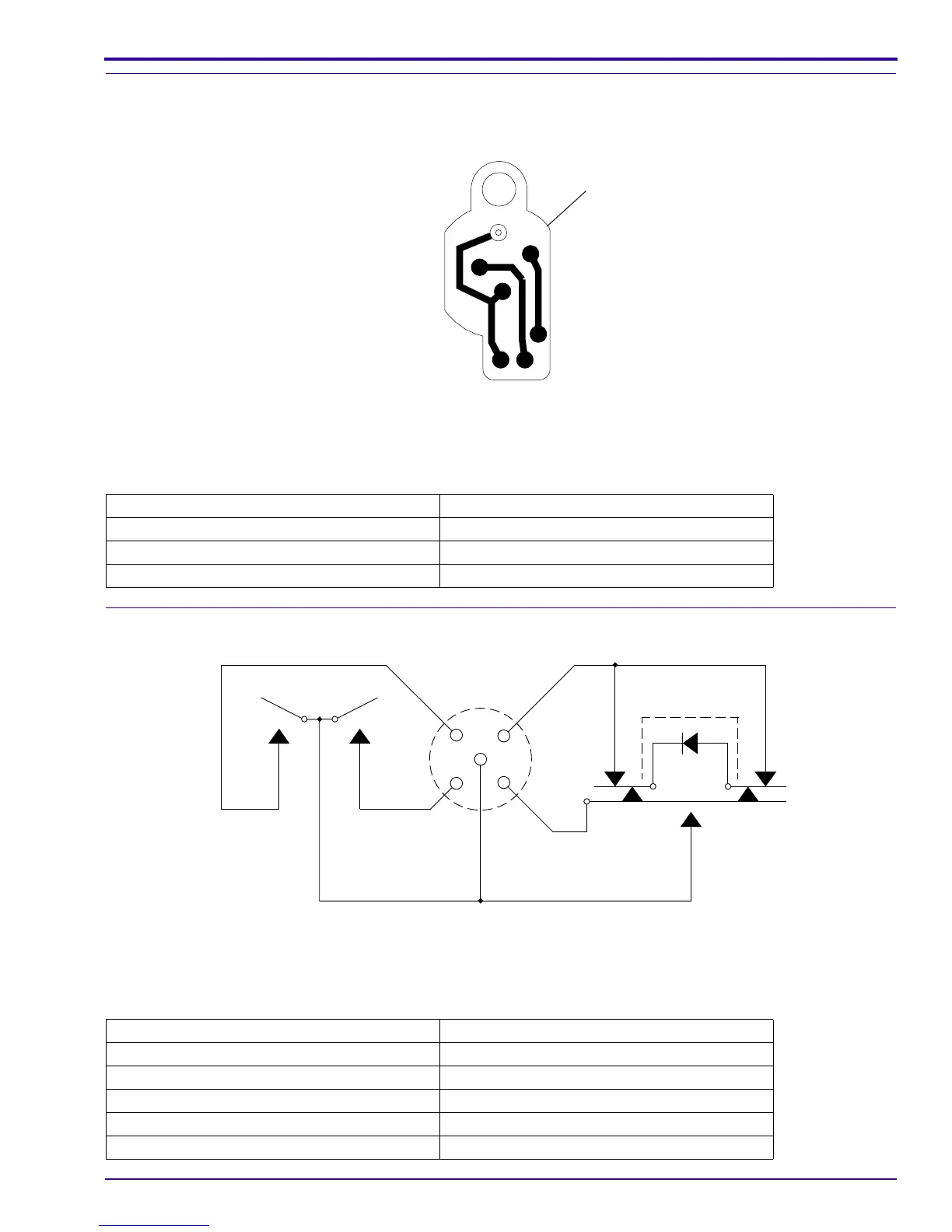

PHOTOCELL Voltages
PHOTOCELL Voltages
5-PIN REMOTE CORD PLUG Voltages
5-PIN REMOTE PLUG Voltages
PINS Voltage
1-2 14.5 V ac
2-3 14.5 V ac
1-3 29 V ac
PIN Description
white Reverse
red Forward
yellow Common
brown RACK SOLENOID
black Focus - REMOTE
1
2
3
A091_4036AA
A091_4036ACA
PHOTOCELL
A100_0001BC_
YELLOWYELLOW
FOCUS
BRN
REV
WHITE
BLACK
RED
FWD
KODAK
EC-3 REMOTE CONTROL
