Kodak Carousel 860H User Manual

12

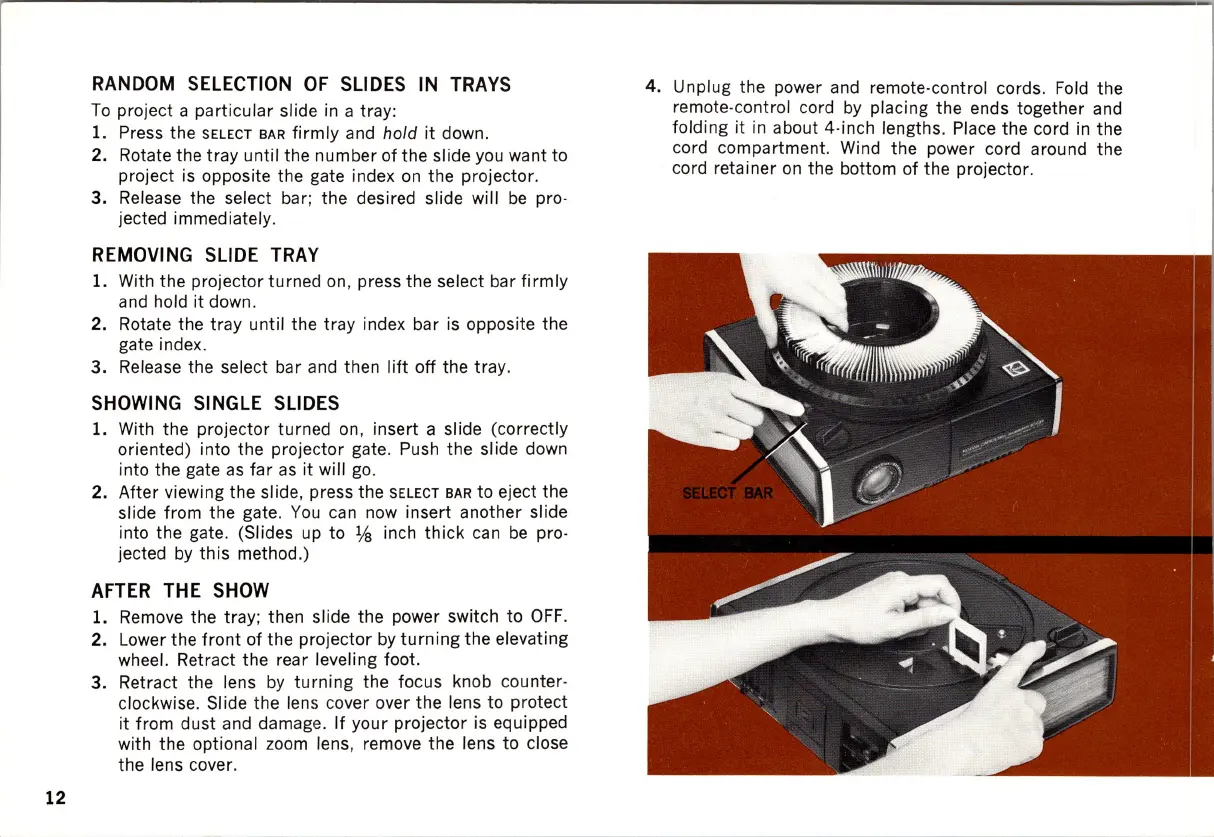

RANDOM SELECTION OF SLIDES IN TRAYS
To project a particular slide in a tray:
1. Press the SELECT BAR firmly and hold it down.
2. Rotate the tray until the number of the slide you want to
project is opposite the gate index on the projector.
3. Release the select bar; the desired slide will be pro·
jected immediately.
REMOVING SLIDE TRAY
1. With the projector turned on , press the select bar firmly
and hold it down.
2. Rotate the tray until the tray index bar is opposite the
gate index.
3. Release the select bar and then lift off the tray.
SHOWING SINGLE SLIDES
1. With the projector turned on , insert a slide (correctly
oriented) into the projec
tor gate. Push the slide down
into the gate
as far as it will go .
2. After viewing the slide, press the SELECT BAR to eject the
slide from the gate. You can now insert another slide
into the gate. (Slides up to V!! inch thick can be pro·
jected by this method.)
AFTER THE SHOW
1. Remove the tray; then slide the power switch to OFF .
2. Lower the front of the projector by turning the elevating
wheel. Retract the rear leveling foot.
3. Retract the lens
by turning the focus knob counte r·
clockwise. Slide the lens cover over the lens to protect
it from dust and damage. If your projector is equipped
with the optional zoom lens, remove the lens to close
the lens cover.
4. Unplug the power and remote·control cords. Fold the
remote·control cord
by placing the ends together and
folding
it in about 4·inch lengths. Place the cord in the
cord compartment. Wind the power cord around the
cord retainer
on the bottom of the projector.

Kodak Carousel 860H Specifications

General

Brand	Kodak
Model	Carousel 860H
Category	Projector
Language	English
