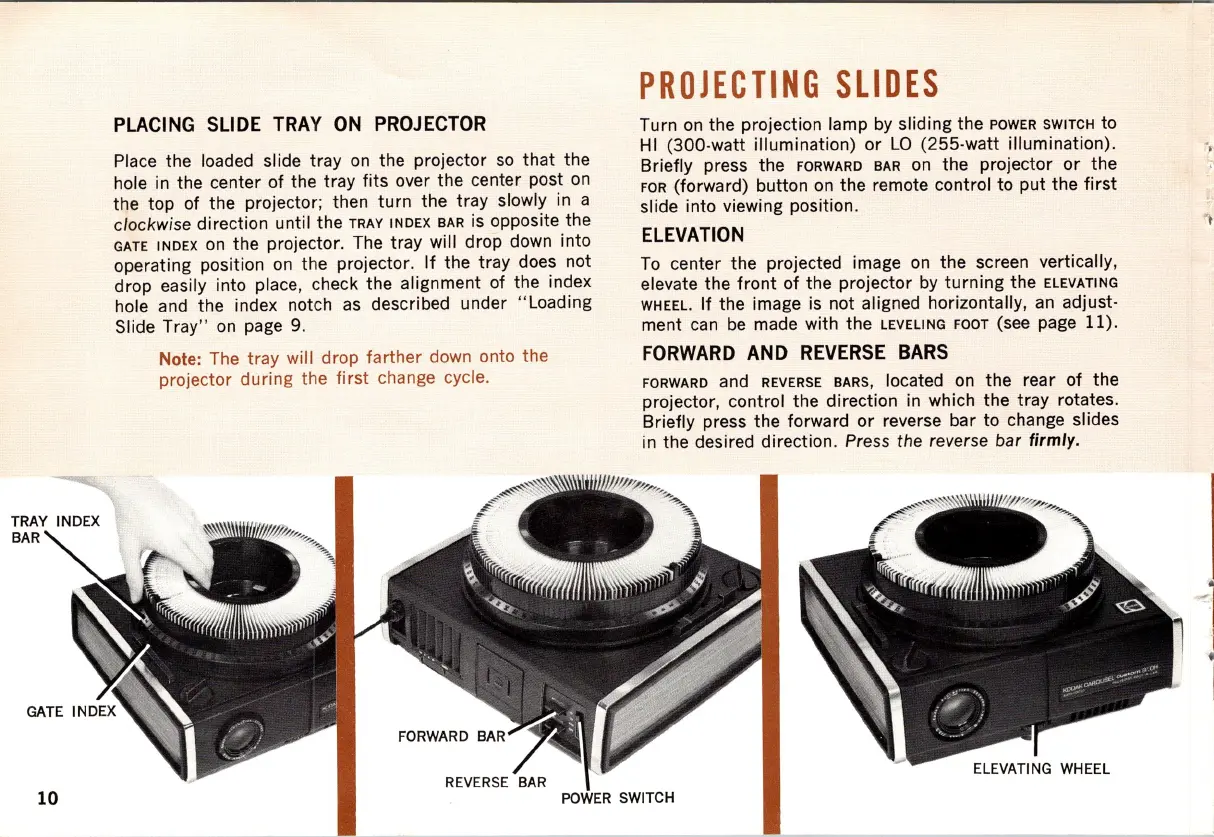

PLACING SLIDE TRAY ON PROJECTOR
Place the loaded slide tray on the projector so that the
hole in the center
of the tray fits over the center post on
the top of the projector; then
turn the tray slowly in a
clockwise direction until the TRAY INDEX BAR is opposite the
GATE INDEX on the projector. The tray will drop down into
operating position on the projector.
If the tray does not
drop easily into place, check the alignment of the index
hole and the index notch
as described under " Loading
Slide Tray"
on page 9.
Note: The tray will drop
farther down onto the
projector during the first change cycle.
PROJECTING SLIDES
Turn on the projection lamp by sliding the POWER SWITCH to
HI (300 -watt illumination) or LO (255-watt illumination).
Briefly press the FORWARD BAR on the projector or the
FOR (forward) button on the remote control to put the first
slide into viewing position.
ELEVATION
To center the projected image on the screen vertically,
elevate the front of the projector by turning the ELEVATING
WHEEL.
If the image is not aligned horizontally, an ad just-
ment
can be made with the LEVELING FOOT (see page 11).
FORWARD AND REVERSE BARS
FORWARD and REVERSE BARS, located on the rear of the
projector, control the directi
on in which the tray rotates.
Briefly press the forward
or reverse bar to change slides
in the desired direction. Press
the reverse bar firmly_
"
