Gearbox for
Super Heavy Duty
Roundback Cutters
Model GB-180
180 HP - 1:1.46 Ratio
For Roundback Models:
RB-SHD-72-SC • RB-SHD-84-SC

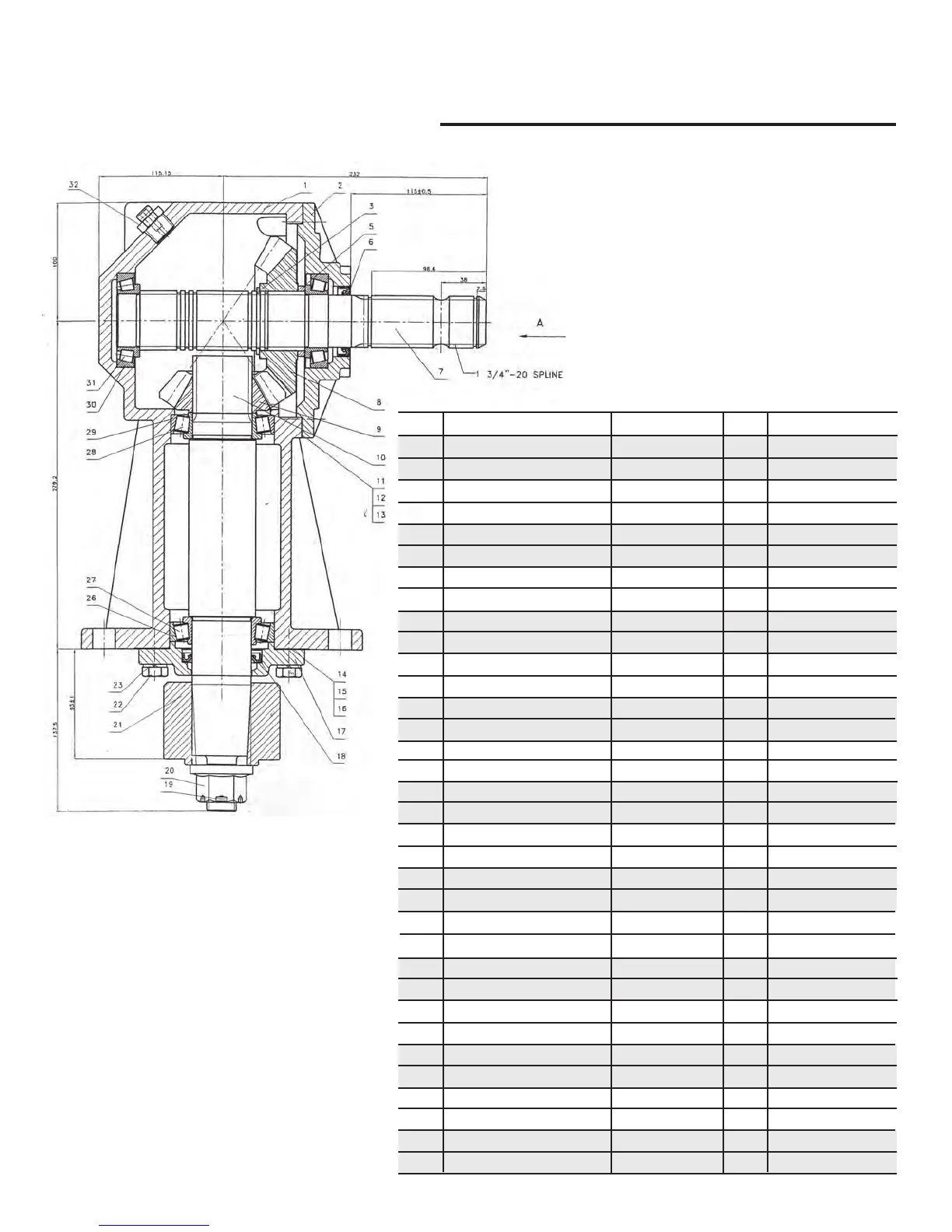

ROUNDBACK Gearbox
Key No. Description Part No. Qty. Spec.
1 Housing RW-R0811 1
2 Input Cap RW-R0512 1
3 Retaining Ring RW-404 1 58 - 48- -2.5
4
5 Spacer RW-R0851 1
6 Seal Input RW-205 1 44 - 60 - 11
7 Shaft Input 20S RW-R0821 1
8 Gear Input RW-R0522 1 19T 1:1.46
9 Gear Output RW-R0524 1 13T 1:1.46
10 Shaft Output RW-R0823 1
11 Gasket Input RW-R0541 A/R
12 Gasket Input RW-R0542 A/R
13 Gasket Input RW-R0543 A/R
14 Gasket Output RW-R0544 A/R
15 Gasket Output RW-R0545 A/R
16 Gasket Output RW-R0546 A/R
17 Output Cap RW-R0513 1
18 Output Seal RW-501 1 50.8 - 68.5 - 12
19 Cotter Pin RW-501 1 5*45
20 Lock Nut RW-R0132 1 1” - 14UNC
21 Blade Hub 1
22 Screw RW-303 4 1/2” - 13UNC #1.5
23 Washer RW-304 4 1/2”
24 Screw RW-301 8 3/8” - 16UNC #1
25 Washer RW-302 8 3/8”
26 Bearing Cup RW-103 1 362
27 Bearing Cone RW-104 1 368
28 Bearing Cone RW-106 1 368A
29 Bearing Cup RW-105 1 362A
30 Bearing Cup RW-107 2 LM603014
31 Bearing Cone RW-108 2 LM603049
32 Plug Pressure Relief RW-502 1 KG 1 1/2 - 14NPTF
33 Pipe Plug – SQ. HD RW-503 1 KG 1/2 - 27NPTF
34 Tag RW-R0852 1 50*25
