STD - PTO SHAFT
22
10/11
***NOTE: SHIELDS ARE FOR UP TO 910MM AND 1210MM X-X DRIVE LINES...CUT TUBES TO FIT
ASSEMBLE THE SHIELDS ON EACH HALF, THEN CUT THE TUBES THE SAME LENGTH AS THE
SLIP TUBES. MAKE SURE THEY DO NOT COME TOGETHER AND BIND WHEN THE 2 HALVES
ARE ASSEMBLED.
ALWAYS KEEP SHIELDING IN PROPER WORKING ORDER, USE PROPER LENGTH CONES, AND
MAKE CERTAIN ALL SHIELDING FURNISHED WITH EQUIPMENT OR DRIVE LINE IS IN PLACE
AND THAT THE CROSSES AND YOKES ARE COMPLETELY COVERED BY EITHER THE INSTALLED
SHIELD OR EQUIPMENT. IT IS THE USER’S RESPONSIBILITY TO USE CORRECT SHIELDING.
K-36725 [90SL4069] 910mm:
Complete Shield Series 4 – 40” and 48” STD Cutter
K-36728 [90SL4099] 1210mm:
Complete Shield Series 4 – 60” and 72” STD Cutter
LONG CONE USED ONLY ON SHEAR PIN / SP LINED YOKES
(TRACTOR OR IMPLEMENT END).
ADD TO ABOVE K-4114 SHORT CONE:
Add price for complete shaft.
Shield with 1 STD Cone / 1 short cone - for slip clutch driveline.
ADD TO ABOVE K-4115 LONG CONE:
Add price for complete shaft.
Shield with 2 long cones - for splined yoke both ends.

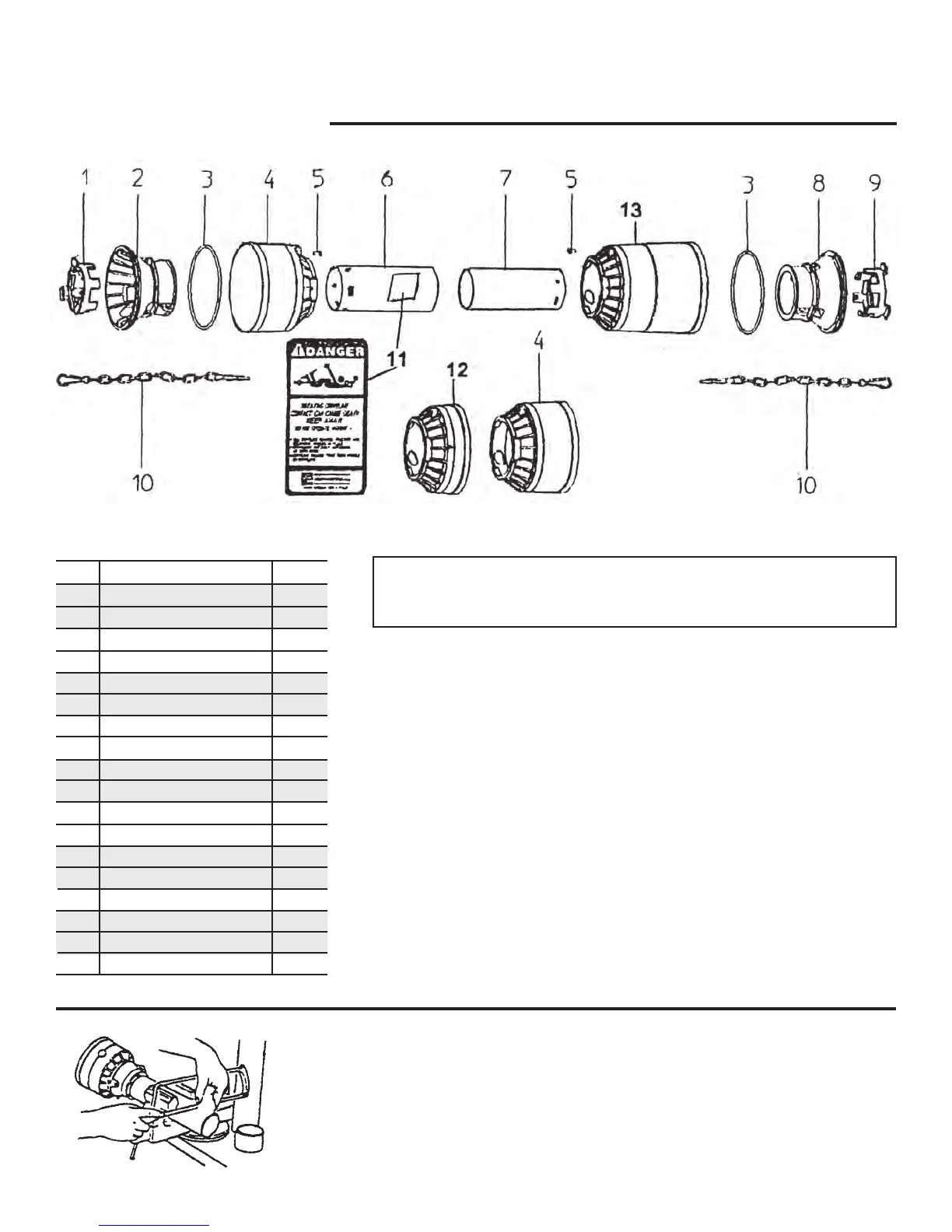

Key No. Description Part No.
1 3 - Prong Lock Outer K4101
2 Outer Tube Hard Core w/ K4102
Re-enforcement Ring
3 Metal Re-enforcement Ring K4103
4 Standard Cone K4104
5 Pin Stop Rotation K4105
6 Outer Tube
910mm, 28” w/decal K4106
6 Outer Tube 1210mm, 39”w/decal K4107
7 Inner Tube 910mm, 28” K4108
7 Inner Tube 1210mm, 39” K4109
8 Inner Tube Hard Core w/ K4110
Re-enforcement Ring
9 3 - Prong Lock Inner K4111
10 Chain K4112
11 Danger Decal K4113
12 Short Cone K4114
13 Long Cone K4115
Please call Kodiak Parts Dept. before
ordering PTO parts at 423-336-2390.
