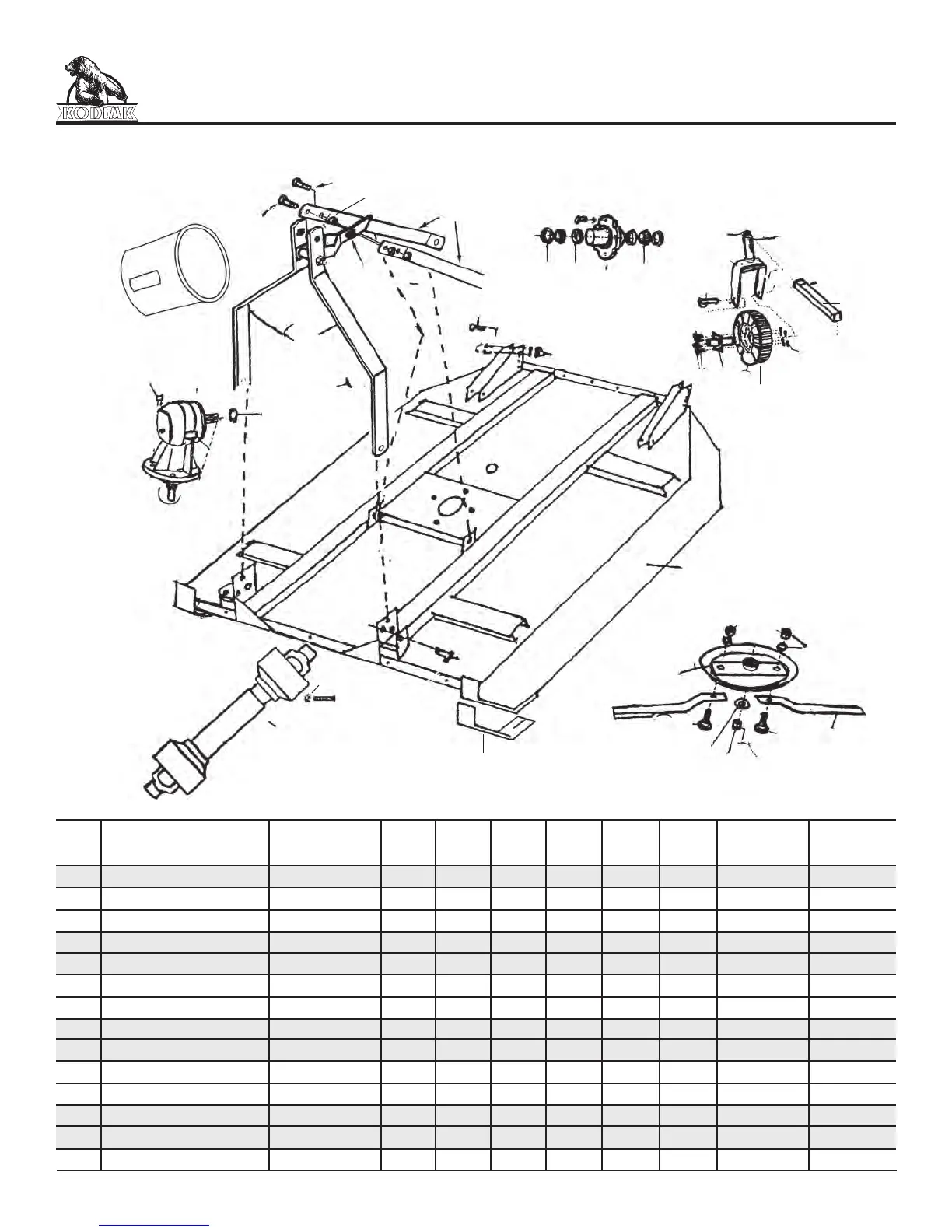

Kodiak 40” - PARTS LISTS AND DIAGRAMS; 3-Point Hitch Parts

14
10/11 * See Page 21 for Gearbox Requirements
Kodiak Rotary Cutters - 3 Point Hitch
Ref. No. Description Part No. ST-40 ST-48 ST-60 ST-72 MD-60 MD-72 HD-72 HD-84
RB-60 RB-72 RB-SHD-72SC* RB-SHD-84SC*
1 Gearbox 40 hp - Splined 103 SP 1 1 1 1
1 Gearbox 40 hp - Smooth 101 ST 1 (OP) 1 (OP) 1 (OP) 1 (OP)
1 Gearbox 90 hp - Smooth 102 M 1 1
1 Gearbox 90 hp - Splined 103 H 1 1
2 1 3/8” Snap Ring 104 SMH 1 1 1 1 1 1 1 1
3 5/8” Nut & Lock Washer 105 S 4 4 4 4
3 3/4” Nut & Lock Washer 106 MH 4 4 4 4
4 5/8” x 2” Bolt 107 R 4 4 4 4
4 3/4” x 3” Bolt 108 MH 4 4 4 4
5 PTO, Complete 109-40 1
5 PTO, Complete 110-48 1
5 PTO, Complete 111-60 1 1
5 PTO, Complete 112-72 1 1
5 PTO, Complete Slip/Clutch 111-60-S 1 (OP) 1 (OP)
5
36
37
18
15
28
31
38
PIVOT
ARM
34
33
Cast Hub w/ 1” Bearings
22 A
1/2” x 2.5” CAPSCREW
BUSHING & LOCKNUT
32
35
2
1
4
3
36
11
12
10
9
8
13
14
24
25
23
26
27
20
28
21
22
39
39
39A
39B
26A
34A
17
19
19A
6
7
