Kodiak Recirculating Chiller Technical Manual
Manual # 820-0109, Rev. Y, 07/08/10 - 12 - Check Lytron’s website www.Lytron.com
for the most current technical information.

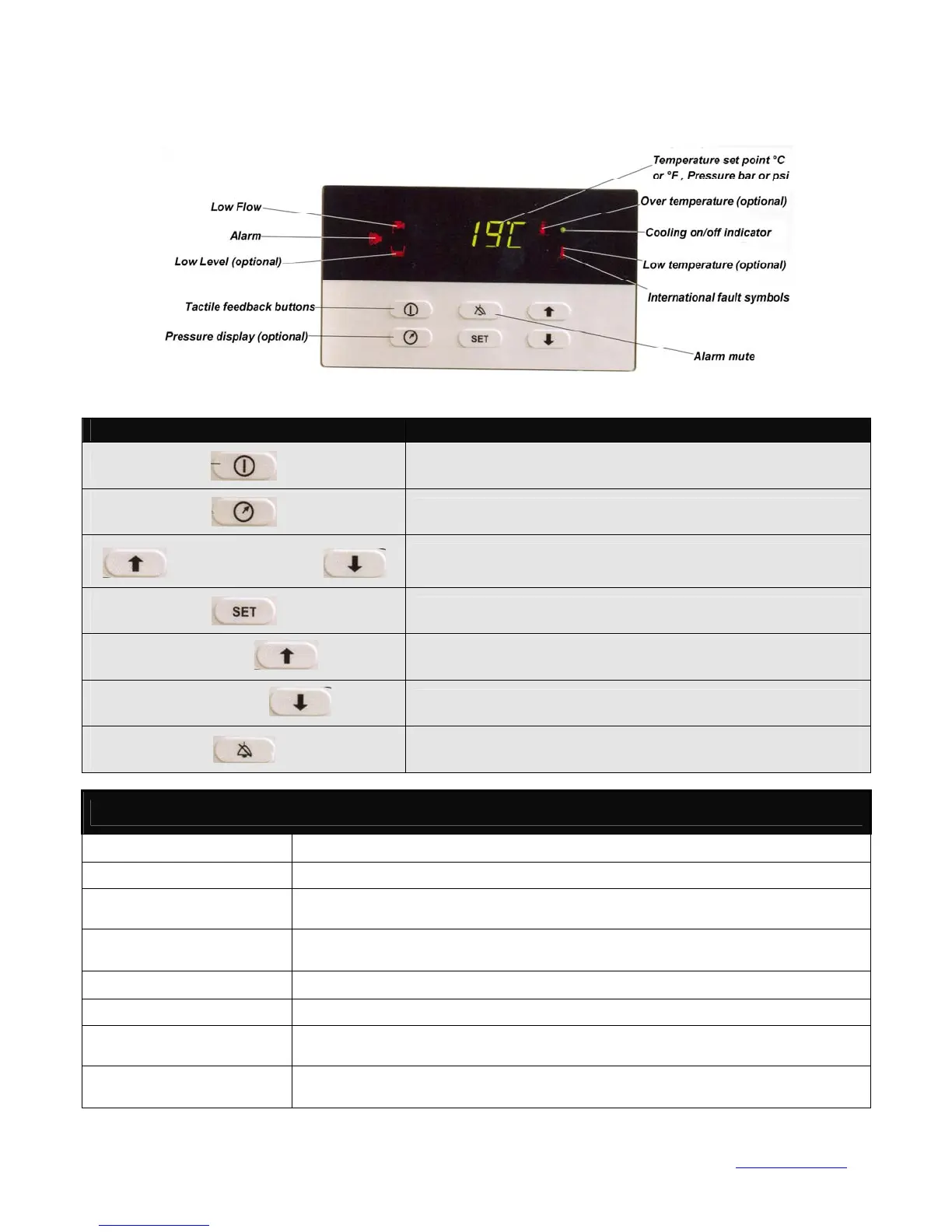

CONTROLLER DISPLAY PANEL FUNCTIONS
Controller Display
Key Operation
Turn on/off chiller
Displays Pressure briefly
“UP” + “DOWN” +
Enter menu (press simultaneously and hold for 3 seconds and
release)
Push to display or change set point
“UP” arrow
Increase set point temperature
“DOWN” arrow
Decrease set point temperature
Alarm Sound disabled or Muted (alarm will stay muted until error
is corrected, then resets)
DESCRIPTION OF INDICATORS
Temperature Set Point
Displays coolant temperature or set point in °C or °F.
Pressure Display
Displays outputs pump pressure in PSI/bar digitally for a few seconds.
Cooling Indicator
Solenoid valve is open and chiller is cooling the process fluid when this light is
illuminated.
Low Flow Indicator
Indicates that the minimum flow requirement of the chiller is not being satisfied.
Alarm Indicator
Illuminates to indicate an alarm fault condition.
Low-Level Indicator
Illuminates to indicate a low fluid level in the tank.
Over Temperature
Indicator
Illuminates to indicate water temperature is above high temperature alarm set
point.
Low Temperature
Indicator
Illuminates to indicate water temperature is below low temperature alarm set
point.
