Kodiak G03 series - CHILLER DIMENSIONS (RC011;RC022); Front and Rear Dimension Views; Legend and Unit Measurements

Kodiak Recirculating Chiller Technical Manual
Manual # 820-0109, Rev. Y, 07/08/10 - 40 - Check Lytron’s website www.Lytron.com
for the most current technical information.

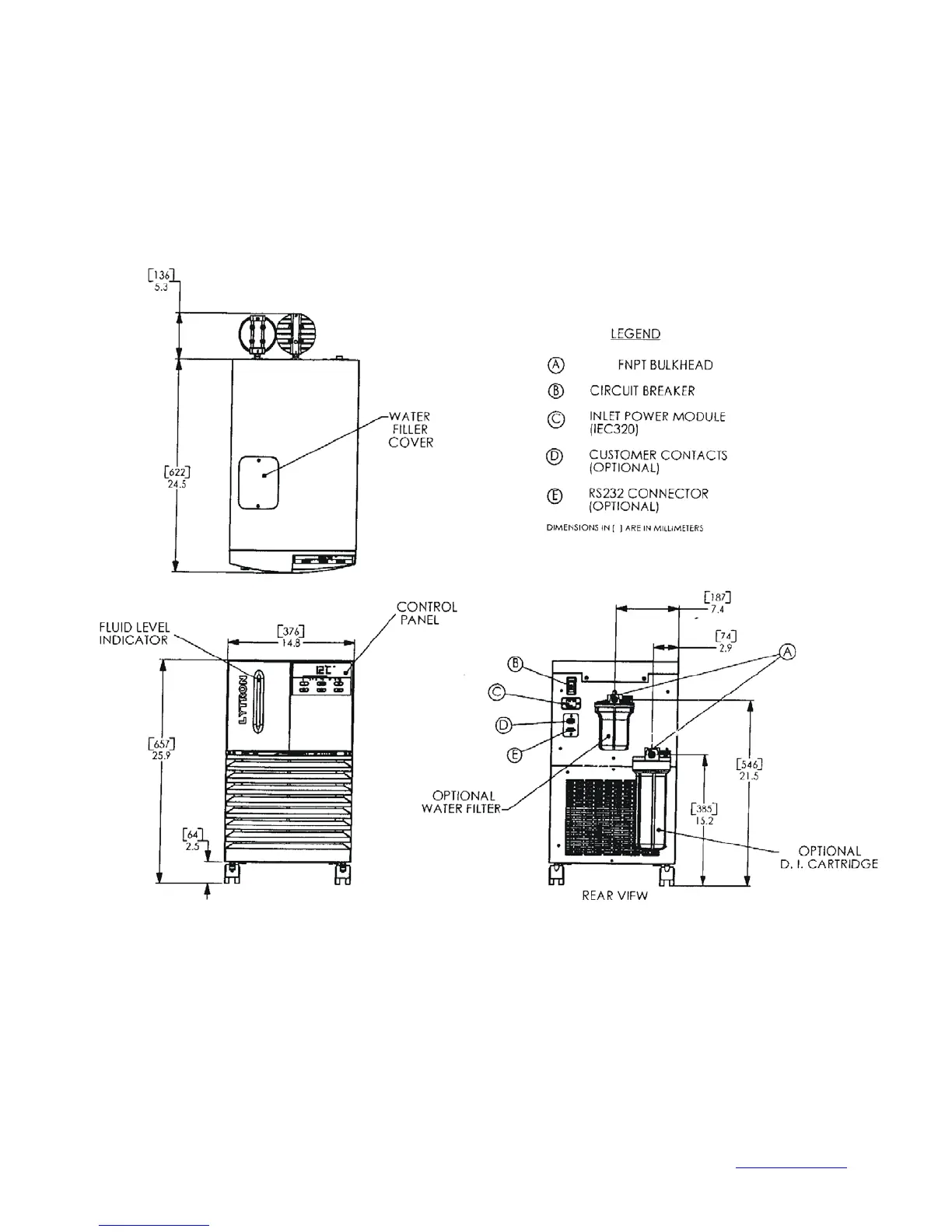

CHILLER DIMENSIONS FOR RC011 AND RC022
½”
