2.5 Cooling System
The engine fan draws cooling air through the openings
in the sides and end near the battery. The alternator fan
draws cooling air through openings on the side w alls of
the enclosure. The cooling air mixes with the engine
exhaust and is discharged at the exhaust outlet. See
Figure 2-11. To prevent generator set damage caused
by overheating, keep the housing cooling inlets and
outlets clean and unobstructed at all times.
Note: Do not block the generator set cooling air inlets or
mount other equipment above them.
Overheating and severe generator damage may
occur.
tp6733
1. Air intake
2. Exhaust outlet
1
2
1
REAR VIEW

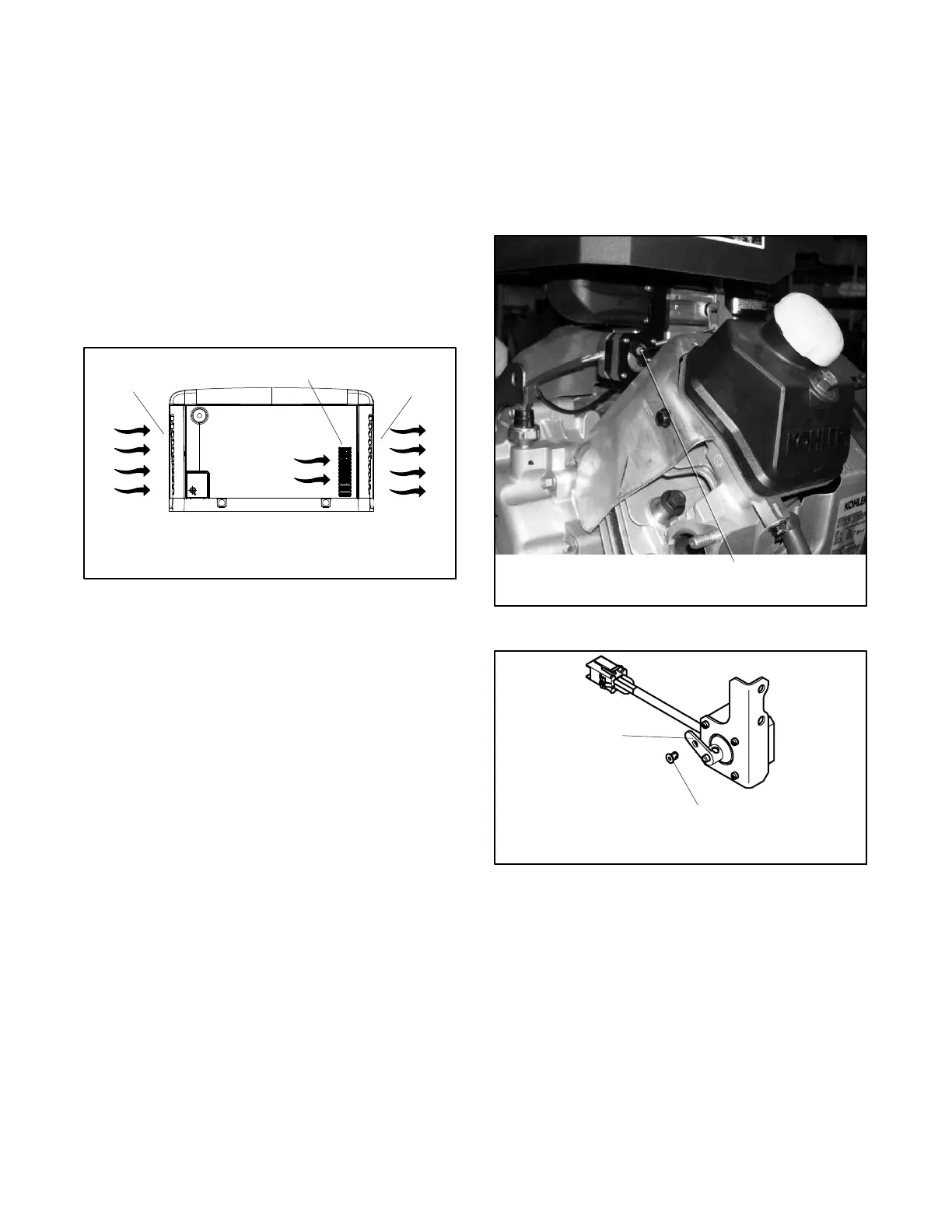

Figure 2-11 Cooling Air Intake and Exhaust
2.6 Exhaust System
Remove all combustible materials from the exhaust
location. Combustible materials include building
materials as well as natural surroundings. Keep dry
field grass, foliage, and combustible landscaping
material a minimum of 1.5 m (5 ft.) from the exhaust
outlet.
Periodically inspect the exhaust system components for
cracks, leaks, and corrosion.
D Check for corroded or broken metal parts and replace
them as needed.
D Check that the exhaust outlet is clear.
2.7 Stepper Motor Coupling
Replace the stepper motor coupling and bushings at the
intervals shown in the service schedule. See the Parts
Catalog for replacement part numbers.
Figure 2-12 shows the location of the coupling
assembly under the air cleaner. Loosen the set screw to
remove the coupling from the motor shaft.
1. Coupling and bushing
1
tp6519
Figure 2-12 Stepper Motor Coupling
tp6518_9
1
1. Coupling
2. Bushing
2
Figure 2-13 Stepper Motor Coupling and Bushing
