TP-7092 8/18 43Section 3 RDC2 Controller Operation
3.16 ATS Configuration Menu
Note: The ATS Configuration menu appears only if a
Model RXT transfer switch is connected.
Use the ATS Configuration submenu to check the Model
RXT transfer switch system settings and time delays,
and change the settings, if necessary.
Changing ATS Configuration Settings
To enable editing, press the select button. The value
flashes to indicate that it can be changed. Press the up
and down arrow buttons to change the value. Press the
Select button to save the value shown.
Use the up and down arrow buttons to move to the next
value to be changed. Repeat the adjustment process
until all values are correct.
Press the down arrow until Return is displayed. Press
the select button to return to the main menu.

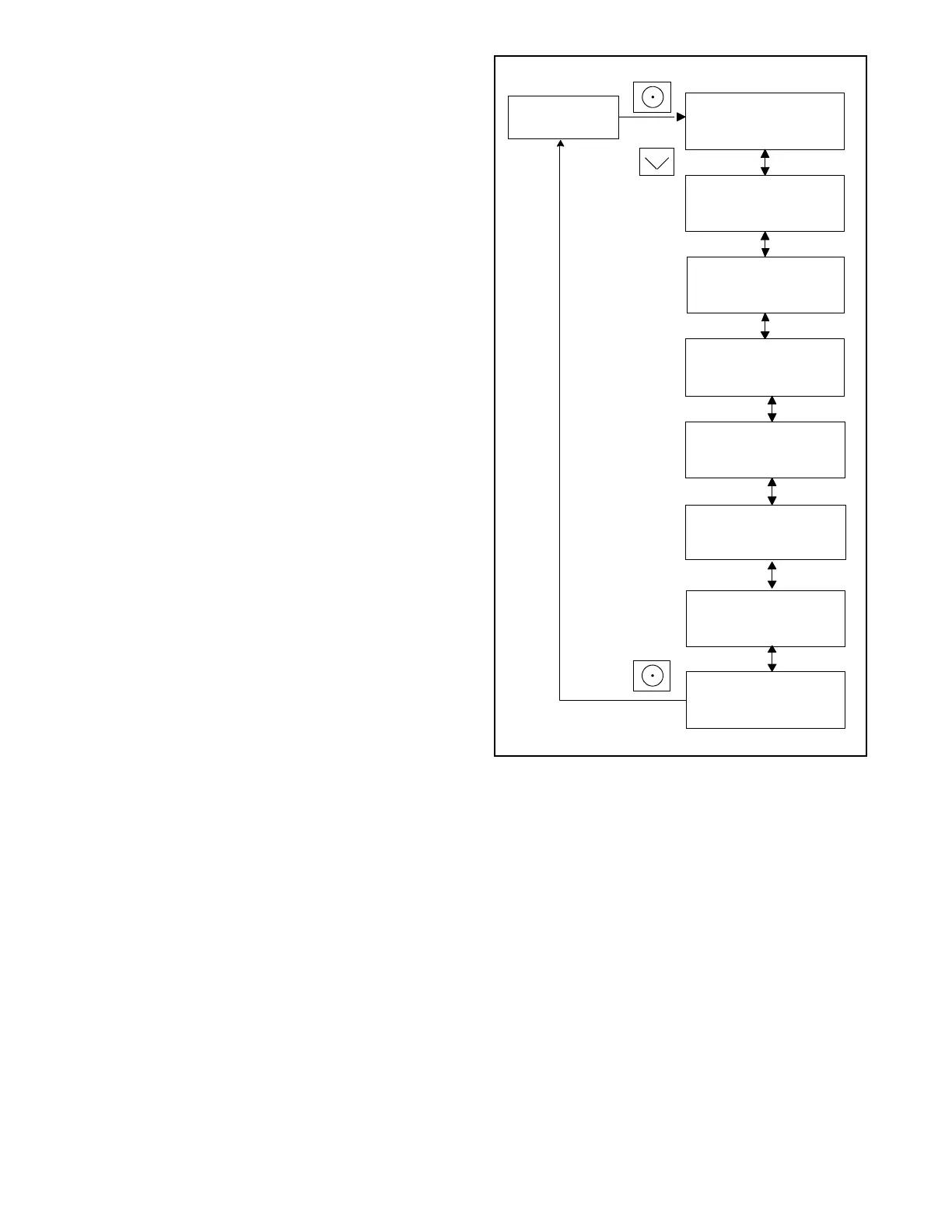

tp6810
Normal Freq:
60 Hz
<---- Return
Normal Voltage:
240 V
ATS - - - ->
Configuration
Emerg. Freq:
60 Hz
Emerg. Voltage:
240 V
Emergency Start:
3sec
Xfer frm Normal
3sec
Xfer from Emerg:
120 sec
Note: Actual settings may vary.
Figure 3-17 ATS Configuration Menu
