Kohler 4CKM User Manual

TP-5393 9/93 Installation 6-19
Spark Arrestor
(278621) Attach to
end of tail pipe.
Drill Screw (X-794-3)
MUFFLER MTG. (RIGHT SIDE)—KIT# PA-278639
MUFFLER MTG. (LEFT SIDE)—KIT# PA-278638
DW-277000-H
Exhaust Gasket (278320)
Screw (X-6217-1) qty. 2
Screw (X-125-24)
Washer (X-25-85)
Whiz Nut (X-6210-7)
Exhaust Adapter
(278766)
Muffler Clamp
(X-722-8)
Screw (X-6217-1)
Use hole in
- muffler mtg. bracket (4kW)
- oil tank bracket (5kW)
to mount muffler hanger.
Muffler Mounting
Bracket (278772)
Muffler (278736)
Muffler Mounting
Strap (278769)
Exhaust Gasket (278320)
Screw (X-6217-1) qty. 2
Exhaust Adapter
(278766)
Muffler Clamp
(X-722-8)
Muffler Mounting
Strap (278769)
Spark Arrestor
(278621) Attach to
end of tail pipe.
Drill Screw
(X-794-3)
Muffler Mounting
Bracket (278772)
Muffler (278737)
Screw (X-125-24)
Washer (X-25-85)
Whiz Nut (X-6210-7)
Screw (X-6217-1)
Use hole in
- muffler mtg. bracket (4kW)
- oil tank bracket (5kW)
to mount muffler hanger.

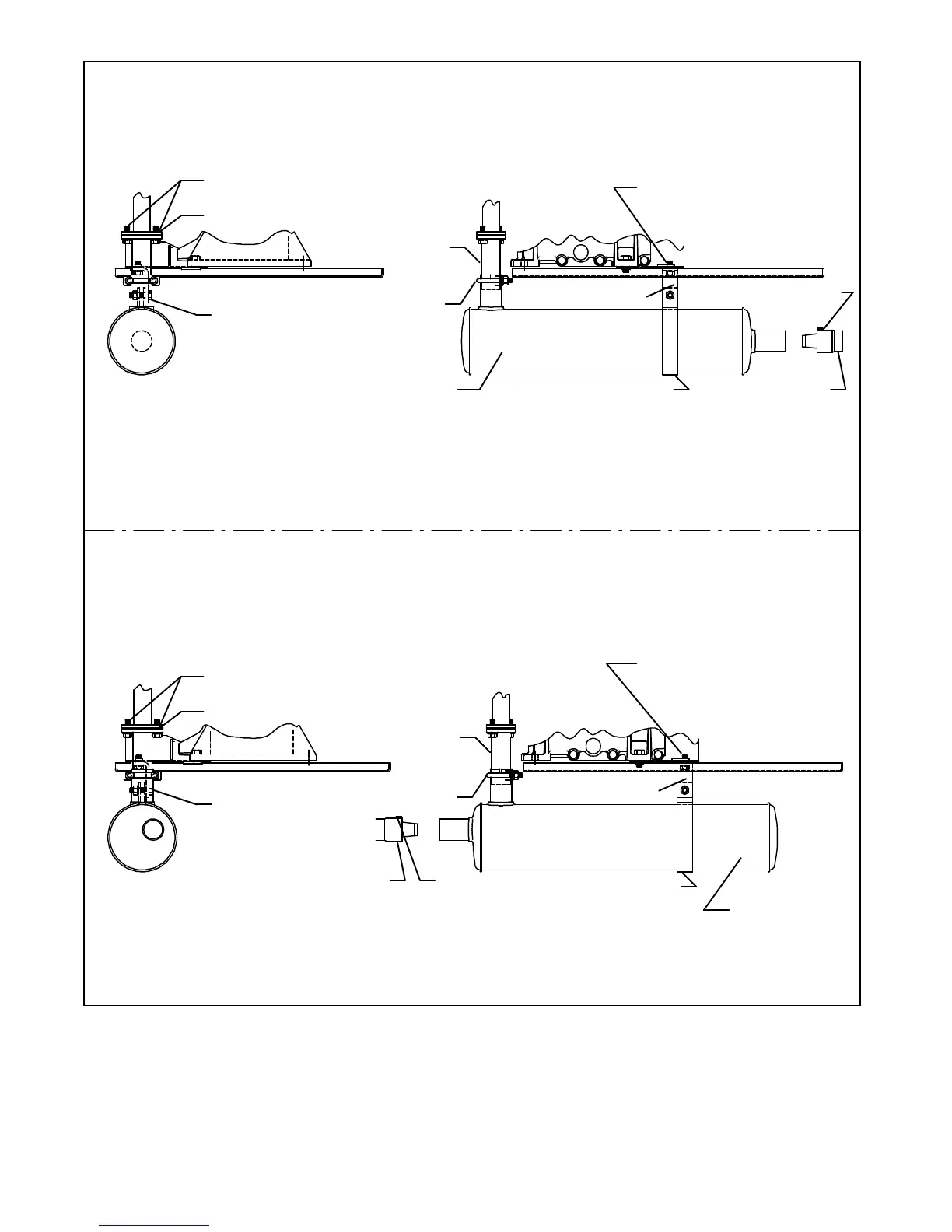

Figure 6-21. Exhaust System for 4/5 kW Generator Sets Mounted Above Floor
