TP-6774 2/14a44 Section 7 Controller
7.2 General Repair Inform ation
This section contains ADC IId controller repair
information. Service replacement of the controller is
limited to the items shown in Figure 7 -2. Refer to the
respective parts catalog for service part numbers. No
other replacement service parts are available.
Before replacing the controller, remove all external
accessories and other electrical connections to verify
that these items are not the cause of the controller
problems. Verify that the accessories and connections
are functioning correctly before reconnecting them to
the new controller.
Go to the Overview Menu and verify that the Software
(SW) Version is correct for the generator set model and
alternator voltage. See Section 7.13.2 or the respective
operation manual for details regarding accessing the
Overview Menu.
Use SiteTecht software for updating the controller
application code.
1
GM82832-D
1. Decal
2. Adjustment knob
3. Controller bezel
4. Protective boot
5. Plastic tapping screw (qty. 6)
6. Circuit board, control
7. Plastic tapping screw (qty. 6)
8. Circuit board, power
9. Insulator
10. Controller heatsink
11. Plastic tapping screw (qty. 3)
12. Pin header connector
13. USB gasket
14. USB plug
6
7
10
2
5
4
3
9
8
11
12
13
14

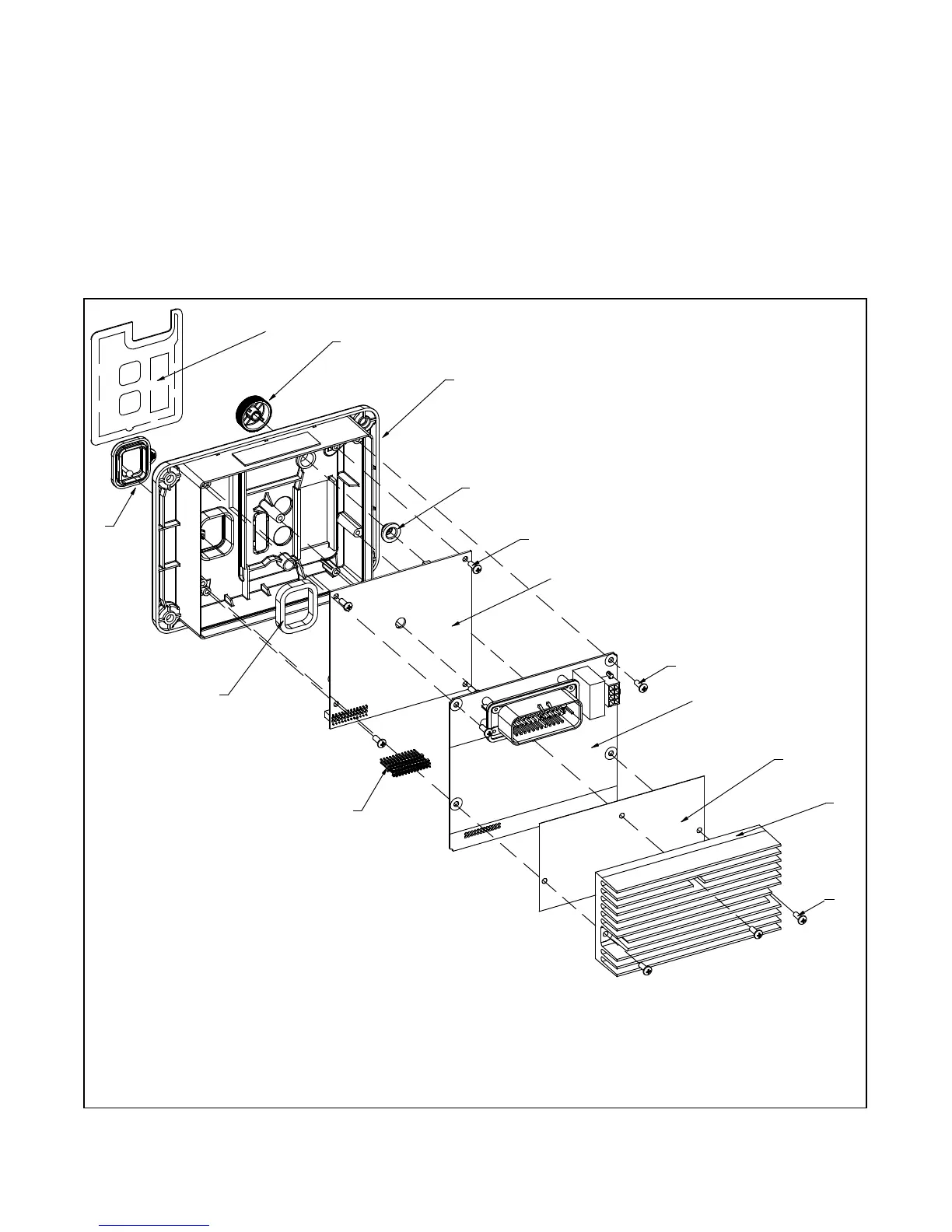

Figure 7-2 Advanced Digital Control IId (ADC IId)
