TP-6774 2/14a96 Section 9 Generator Disassembly/Reassembly

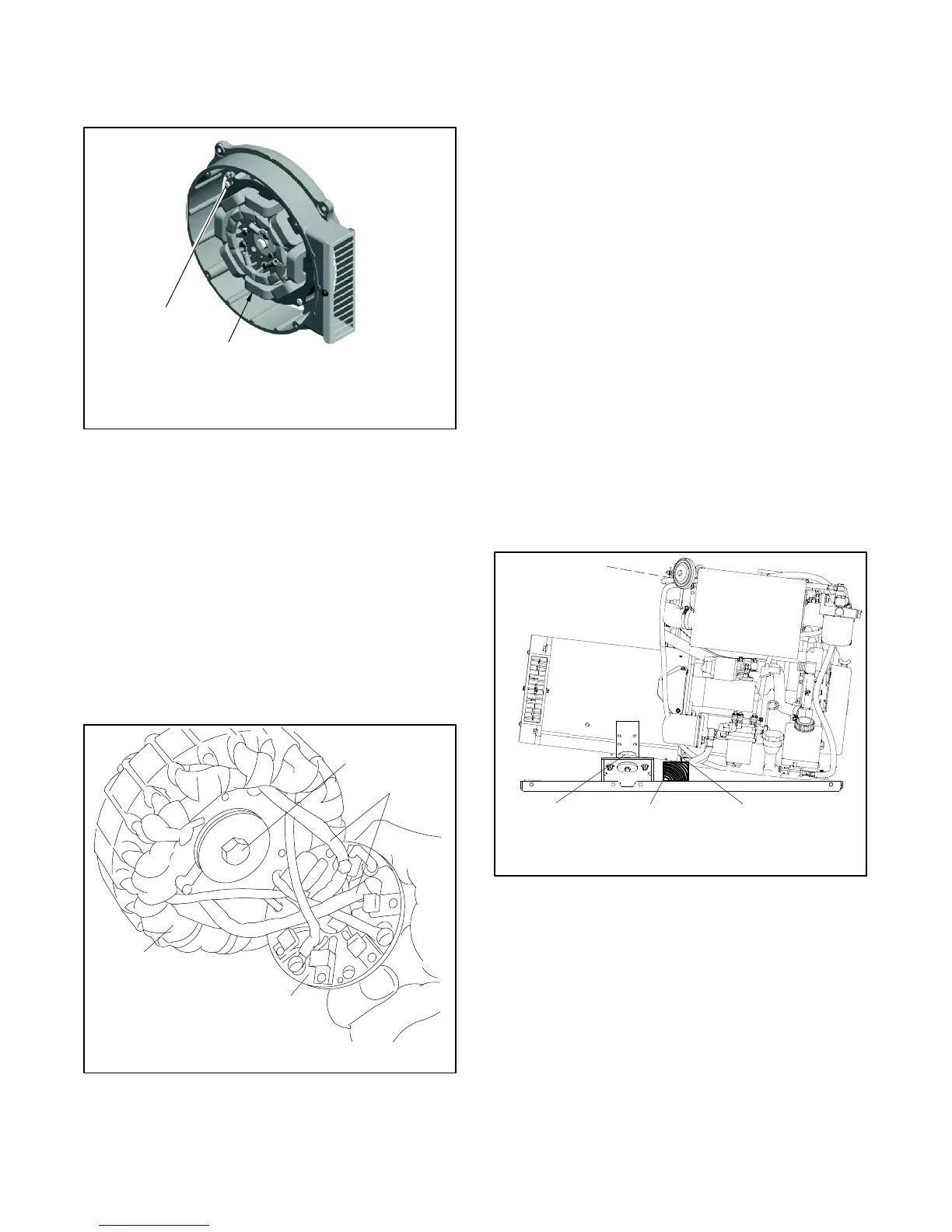

21. 9--11EKOZD and 7--9EFKOZD Models: Remove
the four screws to remove the exciter field. See
Figure 9-7.
GM73474-A
1
2
1. Screws (4)
2. Exciter field
Figure 9-7 Exciter Field Removal
22. 9--11EKOZD and 7--9EFKOZD Models: Remove
the three screws and spacers from the rectifier
board.
23. 9--11EKOZD and 7--9EFKOZD Models:
Disconnect the main field rotor leads from the
rectifier board positive/negative terminals.
Remove the armature retaining bolt and washer.
SeeFigure9-8.
24. 9--11EKOZD and 7--9EFKOZD Models: Remove
the armature from the shaft, guiding the rotor leads
through the armature bores. See Figure 9-8.
558865
1
2
3
4
1. Armature
2. Armature retaining bolt
3. Rotor leads
4. Rectifier board
Figure 9-8 Armature Removal
25. 6EKOD/5EFKOD Model: Remove the four
screws to remove the brush holder cover and brush
cover gasket.
26. 6EKOD/5EFKOD Model: Push the brushes into
the holder. Secure the brushes into position by
sliding a retainer into the brush keeping holder.
See Section 8.6.
27. 6EKOD/5EFKOD Model: Remove the brush
holder and carefully pull the leads out of the stator
housing.
28. Attach a hoist hook to the generator lifting eye. See
Figure 9-9.
Note: The hoist capacity rating should be one-half
ton or greater.
29. Remove the two vibromount bolts. See Figure 9-9.
30. Raise the alternator end and place a wood block
under the locator plate. Lower the alternator until
the wood block supports the backplate. See
Figure 9-9.
31. Remove the four overbolts from the end bracket.
558866
1
3
2
4
1. Lifting eye
2. Backplate
3. Wood block
4. Vibromounts
Figure 9-9 Supporting the Generator, Typical
