TP-6081 4/00 1Section 1 Service Views
Section 1 Service Views
ADV-6537--D
1
2
3
5
7
9
11
8
12
14
15
19
20
1. Controller
2. Hourmeter
3. Start/Stop switch
4. Nameplate (top)
5. Input fuse
6. AC load lead connector (nonservice side)
7. Battery charging fuse
8. Voltage regulator fuse
9. AC circuit breaker
10. Remote start connector (nonservice side)
11. Lifting eye
12. Muffler
13. Exhaust outlet (nonservice side)
14. Spark plug
15. Air cleaner
16. Carburetor
17. Oil drain valve
18. Oil check/oil fill
19. Fuel feed pump
20. Fuel inlet
21. Cooling air inlet
22. Extended shaft (generator specification available)
4
10
17
18
16
6
13
21
22

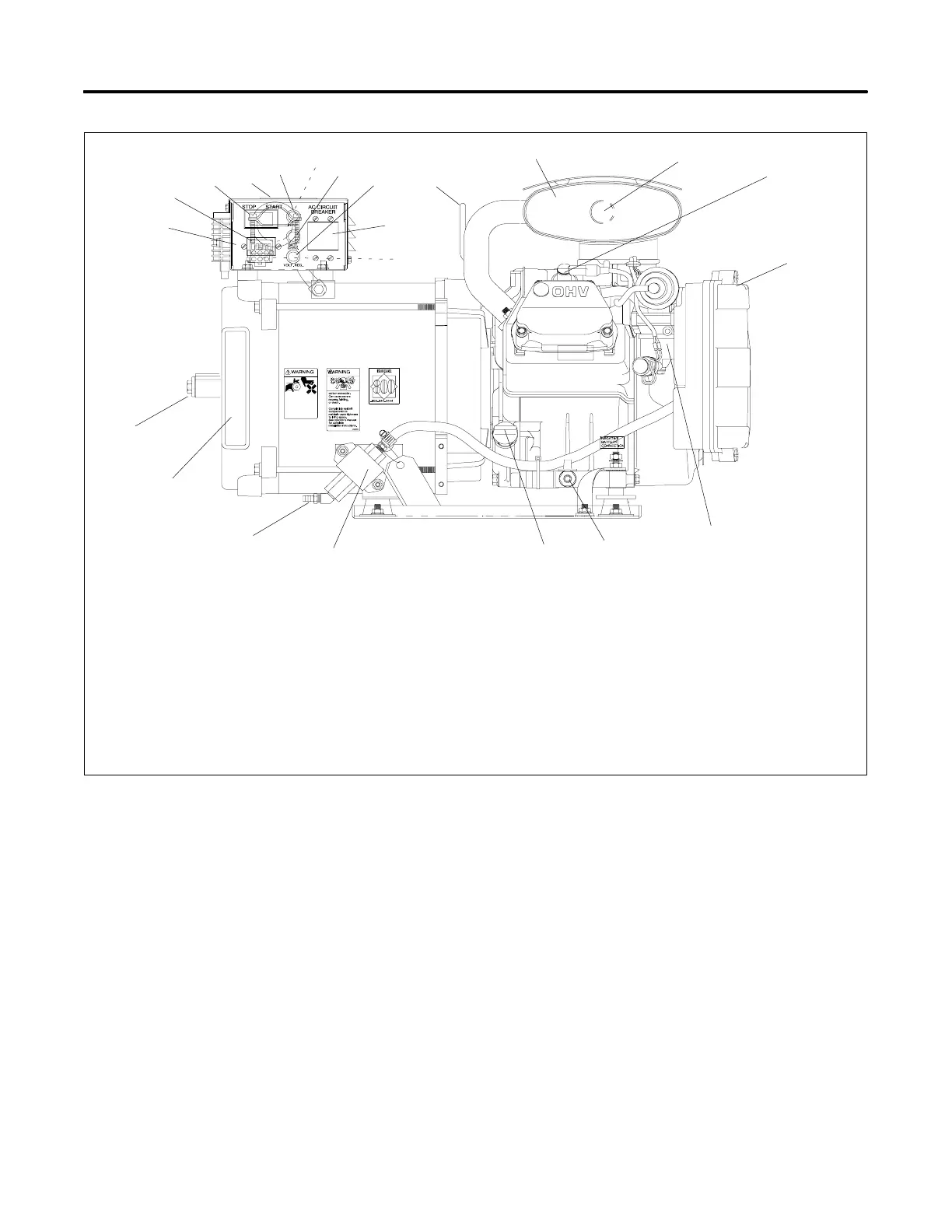

Figure 1-1 5ERKM/4EFRKM Service View
Note: Consult the installation drawing in the spec sheet
or the installation manual for the fuel and battery
connection points.
Note: Consult an authorized distributor/dealer or the
service manual for items not shown.
