TP-6842 7/15 Section 1 Installation 19
1.8.8 Optional Remote Engine Start
Connection
A remote start switch can be connected to the
generator set. Connect the engine start leads from a
remote start switch to terminals 3 and 4 on the terminal
block. See Figure 1-17. Route the engine start leads
through separate conduit from the AC accessory
power leads.

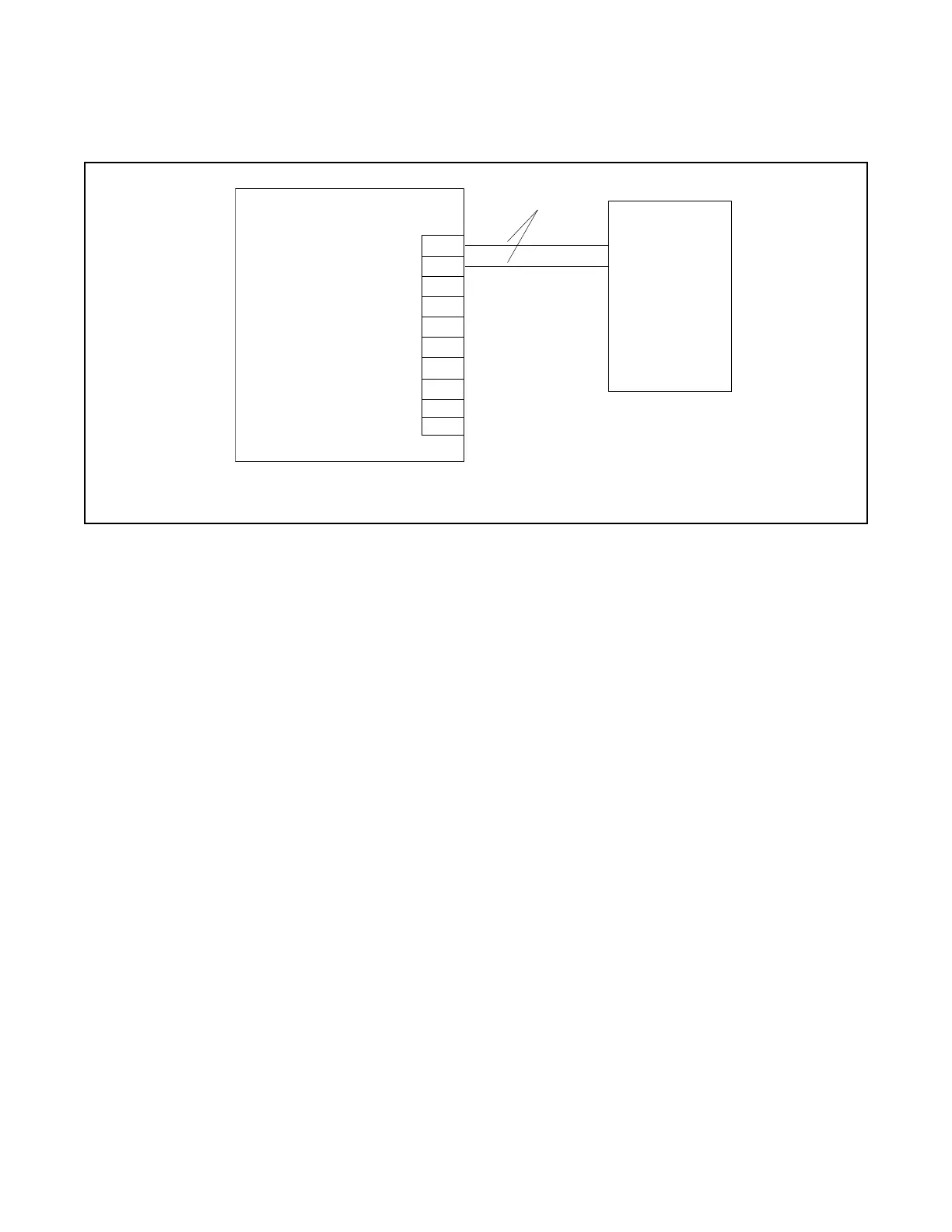

Figure 1-17
Figure 1-17 Remote Engine Start Connections
KPS_068
Generator Set
Inverter
1
A
B
COM
PWR
3
4
1
1A
OPEN
OPEN
TB2
1. Remote engine start leads 3 and 4. Close the contact across 3 and 4 to start the generator set.
Open the contact to stop the generator set.
