Kohler 7000 Series Service Manual

Fuel System
4732 690 03 Rev. I KohlerEngines.com
Governor/Throttle Control Connections
M
C
E
I
H
I
H
A
F
J
K
B
B
E
D
C
F
A
E
G
C

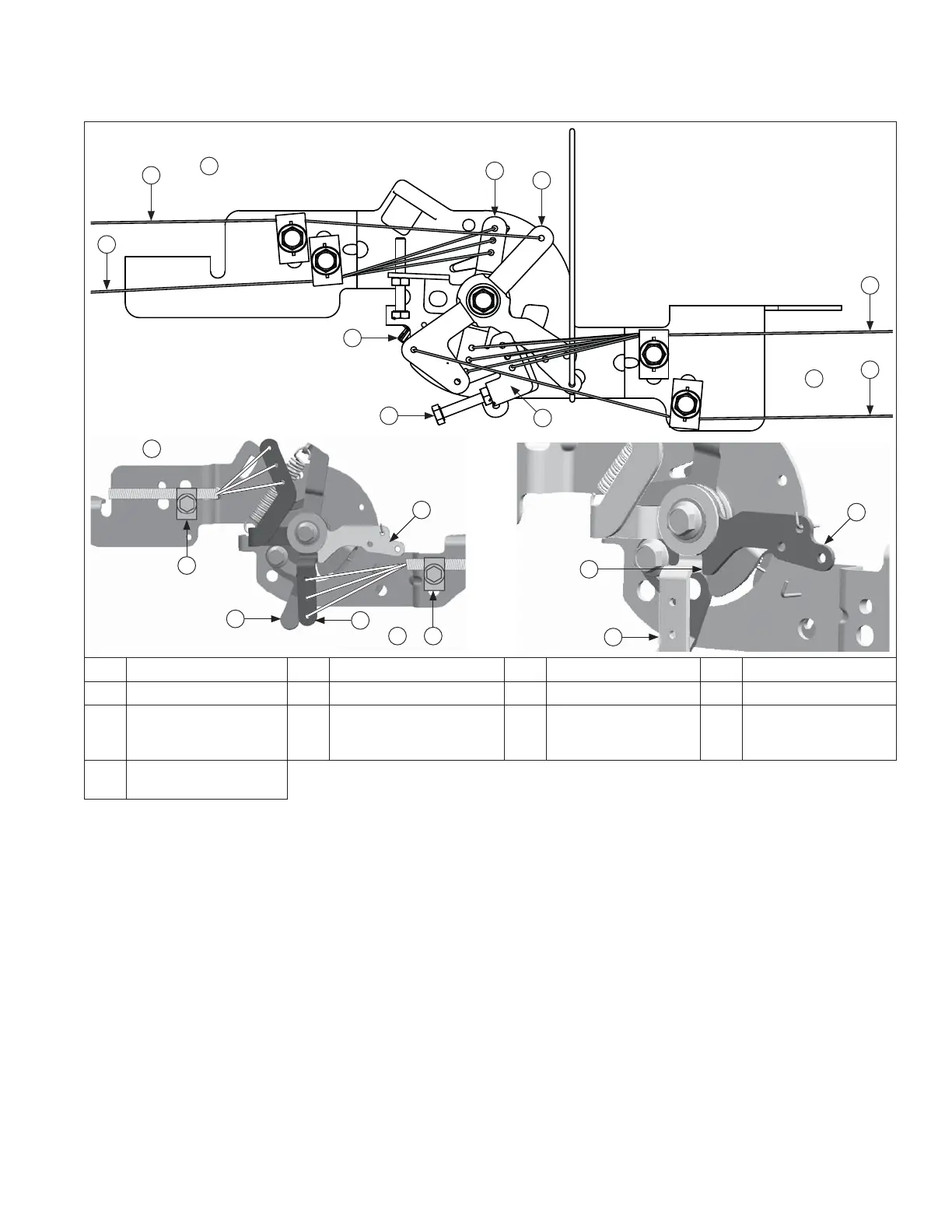

A Left Side Pull B Cable Clamp C Speed Control Lever D Speed Setting Lever
E Choke Lever F Right Side Pull G Contact Point H Choke Control Cable
I Throttle Control Cable J
Dual Control High Speed
Lever Stop Screw (Do
Not Remove)
K
High Speed Adjusting
Screw
L Choke Linkage
M
High Speed Control
Lever

Kohler 7000 Series Specifications

General

Fuel System	Carburetor
Lubrication	Splash
Full Throttle RPM	3600 RPM
Cooling System	Air Cooled
Starter Type	Electric
