Kohler 7000 Series Service Manual

5
Specifi cations
32 690 03 Rev. I KohlerEngines.com

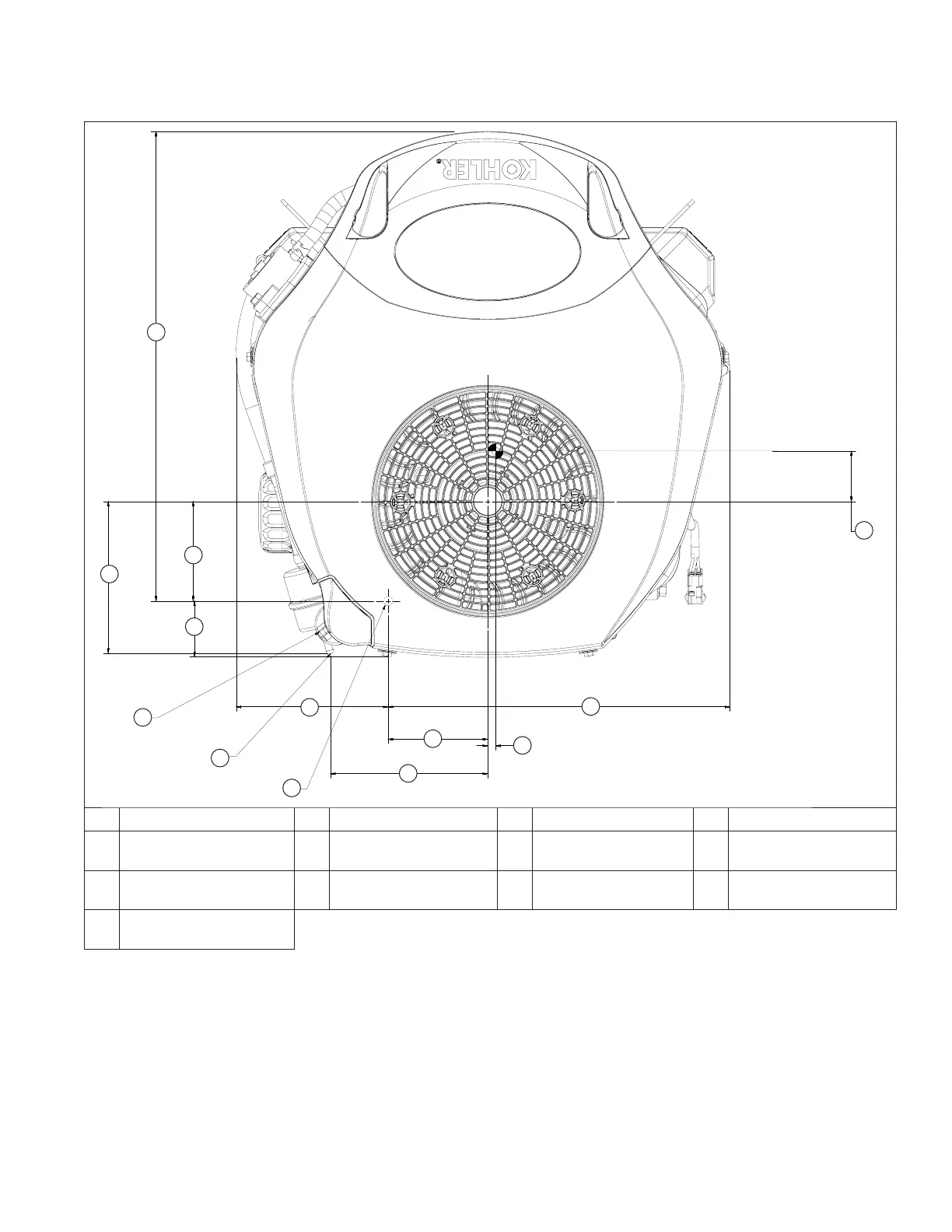

Engine Dimensions with Low Profi le or High Performance Air Cleaner-Flywheel Side
F
E
G
H
I
M
A
B
D
C
J
K
L
A 423.0 mm (16.65 in.) B 136.7 mm (5.38 in.) C 89.6 mm (3.53 in.) D 50.1 mm (1.97 in.)
E
Oil Fill and Dipstick
(Yellow)
F
Fuel Line Connection
Point
G Mounting Hole "A" H 136.9 mm (5.39 in.)
I 141.5 mm (5.57 in.) J 89.7 mm (3.53 in.) K 307.9 mm (12.12 in.) L
7.2 mm (0.28) Center
of Gravity
M
45.5 mm (1.79 in.)
Center of Gravity

Kohler 7000 Series Specifications

General

Brand	Kohler
Model	7000 Series
Category	Engine
Language	English
