TP-5867 11/024 Section 1 Specifications
AUTOOFF
RESET/
RUN
F2 10 AMP
TYPE ABCTYPE ABC
F1 10 AMP
~
ON
OFF
P-358000-C
123 679 11
1617
5
1415
13
19
12
12
18
1. Generator set sound enclosure (weather housing not shown)
2. Muffler
3. Oil check
4. Oil drain hose
5. Oil fill
6. Spark plugs
7. Air cleaner
8. Fuel valve (Do not adjust on emission-certified models.)
9. Controller
10. Nameplate
11. Gas regulator assembly
12. Rodent screens
13. Engine starting battery location
14. Engine oil cooler
15. Engine battery charge regulator
16. Oil drain valve
17. Oil filter
18. Rodent plugs
19. Spark arrestor
84 10

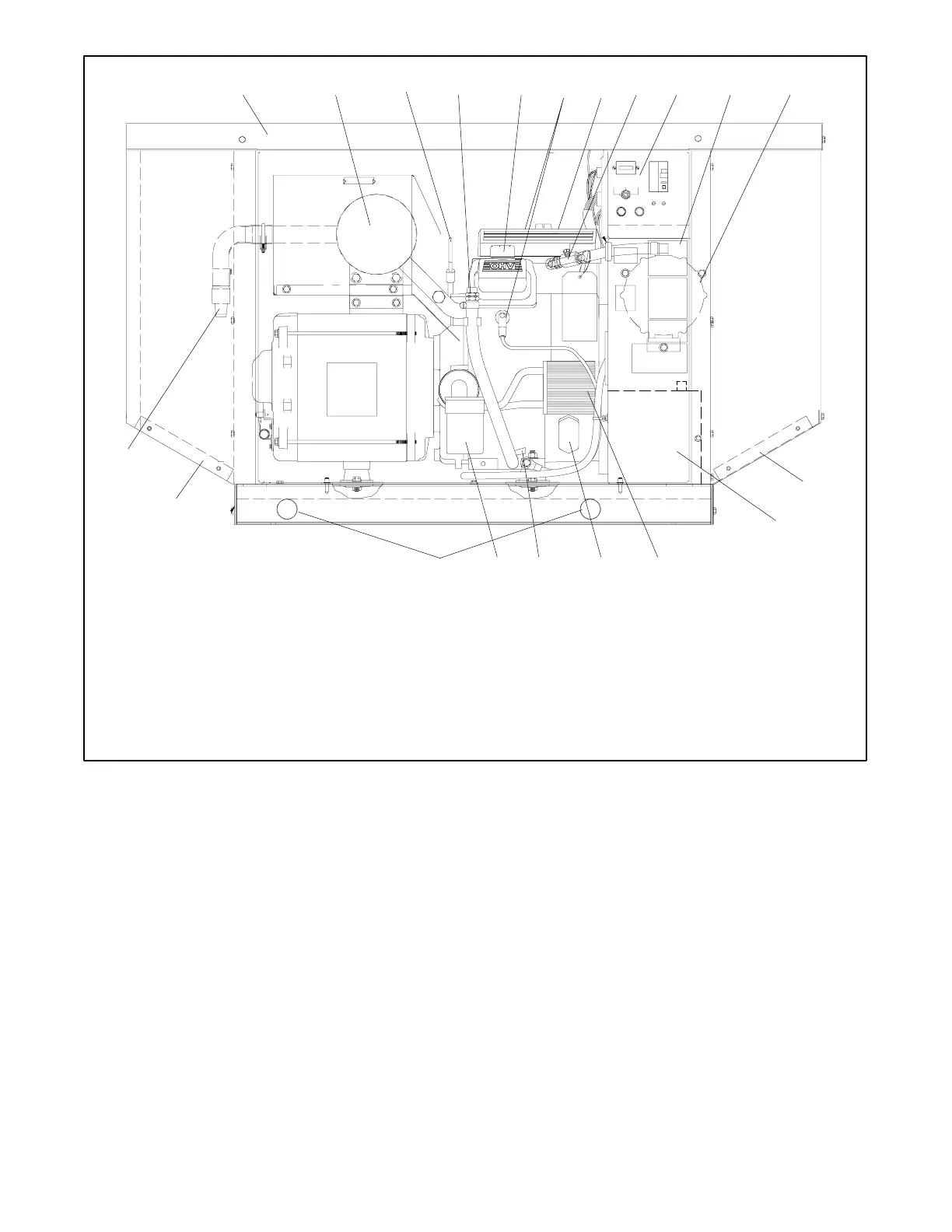

Figure 1-5 Generator Set Service View, Single-Fuel Systems (spec numbers PA-)
