98 TP-6694 9/20

180-500 RZXB/REZXB/REZXC/RZXD/REZXD (PSI/ Doosan 11.1L, 14.6L, 18.3L, and 21.9L Engines)

LPG Vapor or Liquid Withdrawal with Single Fuel Valve

See Figure 44.

 Disconnect lead 70E.

 Disconnect lead N6.

 Disconnect lead N11 (250 – 500 kW).

 Disconnect lead 73A (180 – 200 kW).

 Disconnect lead 73A and 73A1 (250 – 500 kW).

 Disconnect lead 65A.

 Connect lead 70B2 to fuel valve 1 (FV1), red/black wire.

o For 250 – 500 kW (14.6 L – 22 L engines), connect lead 70B2 to fuel valve 1A (FV1A) and lead 70B2A to fuel

valve 1B (FV1B), red/black wires.

 Connect lead 73B to fuel valve 1 (FV1), red/white wire.

o For 250 – 500 kW (14.6 L – 22 L engines), connect lead 73B to fuel valve 1A (FV1A) and 73B1 to fuel valve 1B

(FV1B), red/white wire.

 Connect lead N7 to fuel valve 1 (FV1), green wire.

o For 250 – 500 kW (14.6 L – 22 L engines), connect lead N7 to fuel valve 1A (FV1A) and lead N10 to fuel valve

1B (FV1B), green wires.

 Connect lead 63 to normally closed (NC), low fuel pressure sensor 1.

 Connect lead N3 to common (COM), low fuel pressure sensor 1.

 Connect lead 65 to lead N5 (ground).

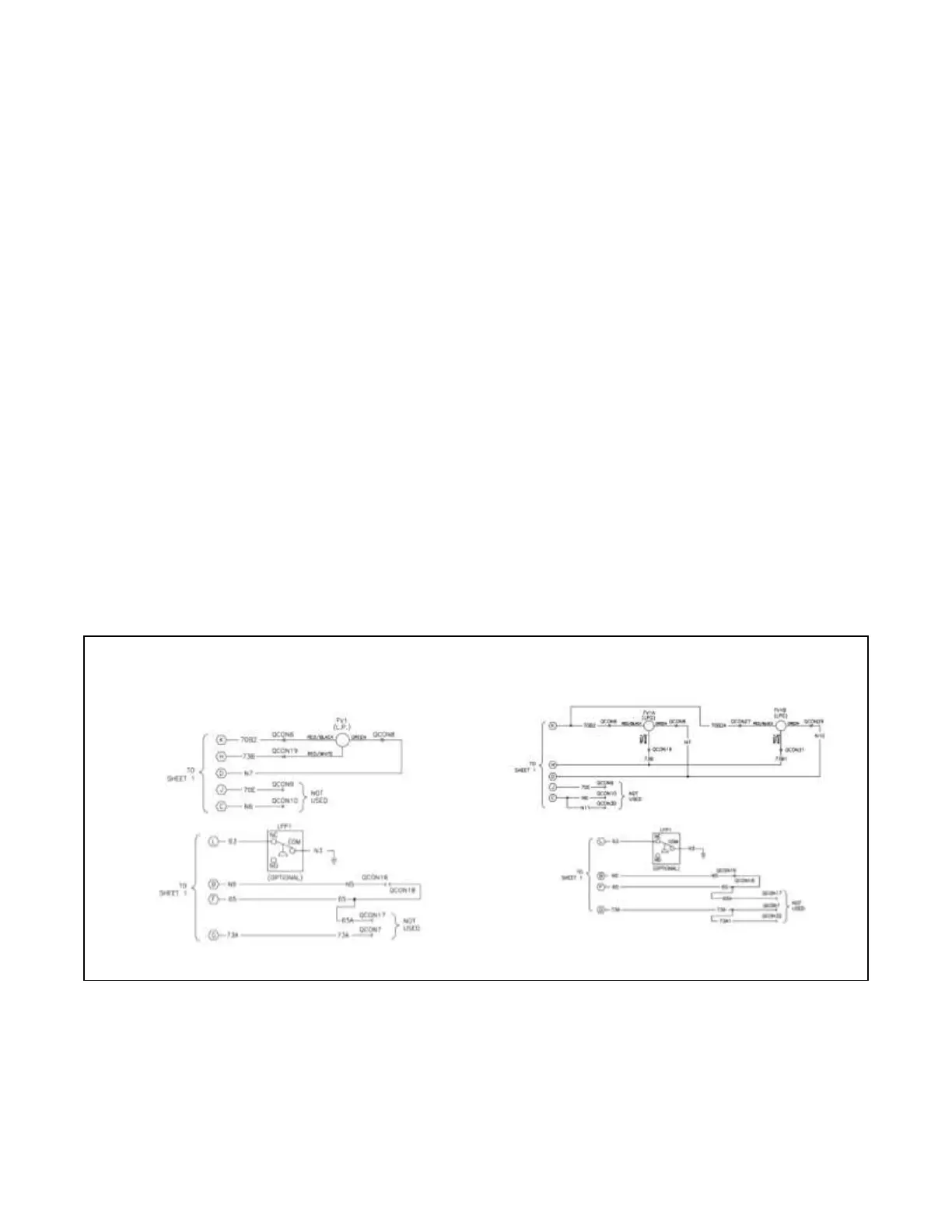

Figure 44 LPG Vapor or Liquid Withdrawal with Single Fuel Valve

LPG Vapor and Liquid Withdrawal

ADV-7968-G

180 – 200 kW (11 L)

250 – 500 kW (14.6 – 22 L)

ADV-7994-K
