1 — OVERVIEW
pg. 3
Return to TOC Curtis AC F2-A, F4-A, F6-A Motor Controllers – FOS 4.5 – April 2022
HOW TO USE THIS MANUAL
is manual combines the 23-pin F2-A and the 35-pin F4/6-A controllers.
e F-Series I/O operates the same way, the dierence lies in the input/output (I/O) count. e
35-pin controllers oer a second CAN port and more I/O (drivers, analog & switch inputs) as the
principle dierence.
is manual describes how to:
Properly mount and wire the controller
Understand the congurable inputs and outputs
Apply specic features to match an application
Access and change parameters
View and use monitor variables
Perform the initial setup
Setup the PDO Mapping
Diagnose and troubleshoot faults
Select and use the available programming and diagnostic tools
3141 CAN Gauge

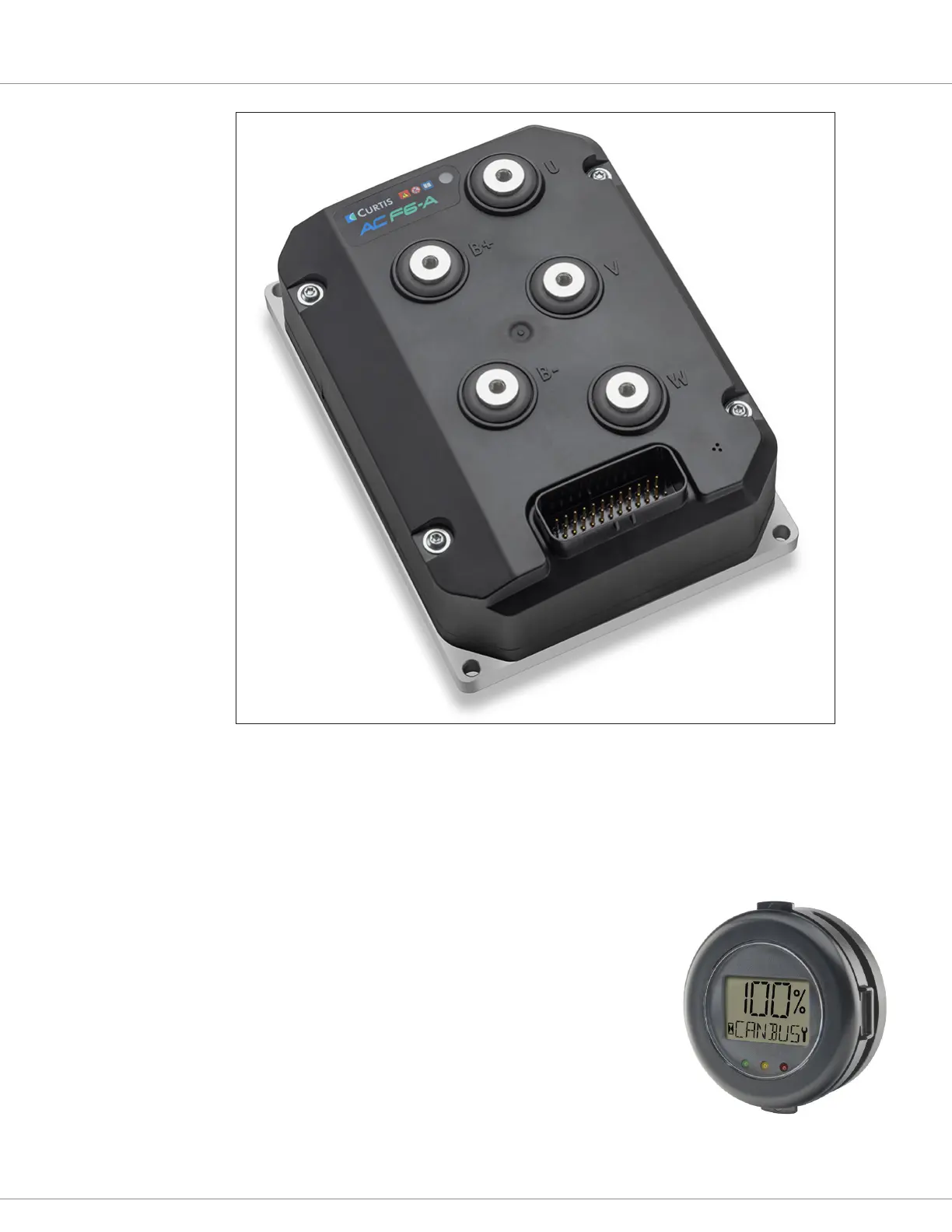

Figure 3
AC F6-A Motor
Controller

Table of Contents

Related product manuals
