Kohler K-1647 Installation Guide

Steam Hardware Locations
Modules (Single Steam Head)
WARNING: Risk of scalding. Do not locate the steam head near a seat or bench, as the steam head
is hot during operation and may scald the user if touched.
NOTICE: It is recommended to locate the control kit and steam head on the same wall as the plumbing
controls. For optimum performance, do not locate the control kit directly above the steam head. Locate the
steam head 6″ (15.2 cm) above the floor and a minimum of 4-1/2″ (11.4 cm) from the threshold. The steam
head should always be located as far away from the seating area as possible.

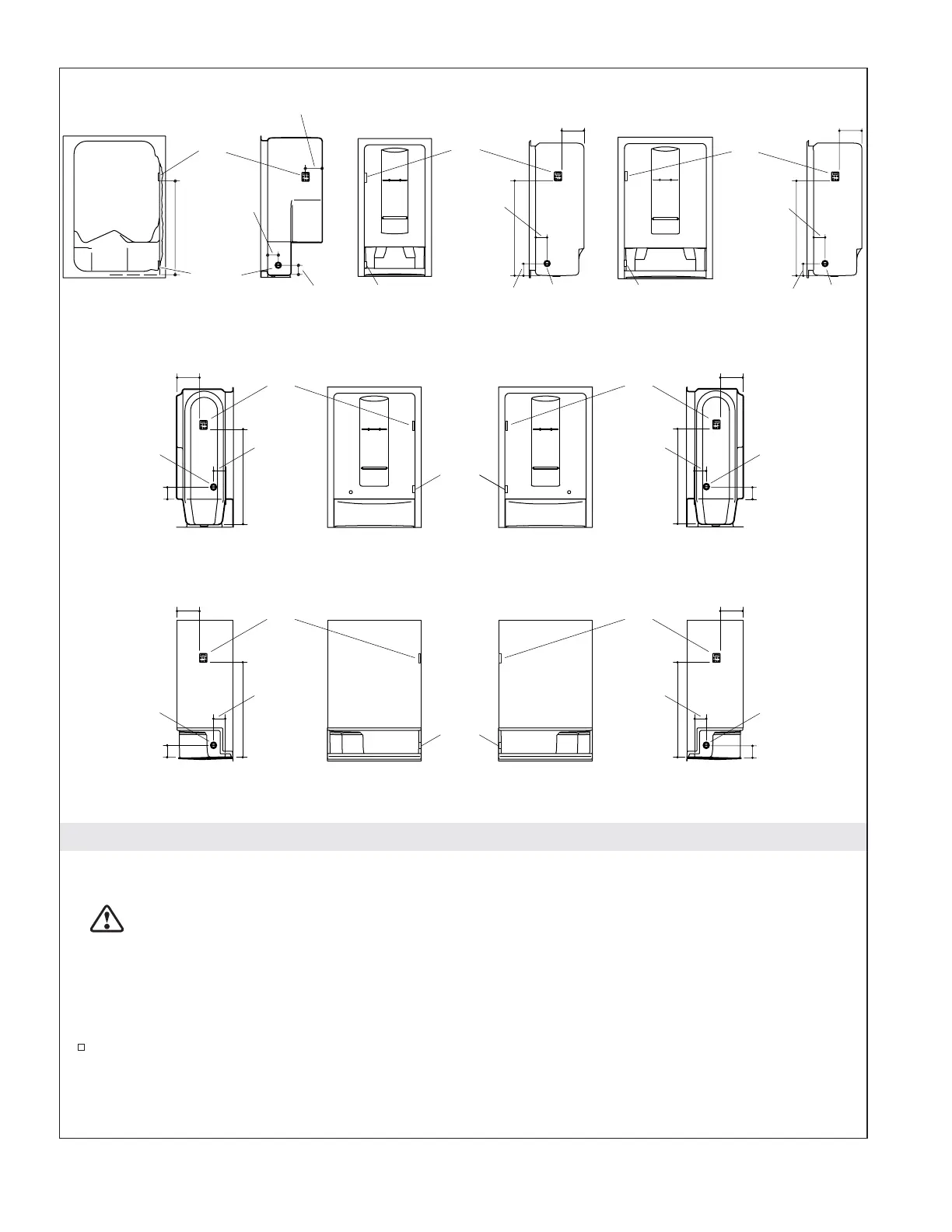

Identify the model number of your shower module in the illustration. If necessary, consult the
Homeowners Guide included with your shower module to verify the model number. If the
dimensions for your particular model are not shown, refer to the ″Custom Shower Application″
illustration in the ″Prepare the Site″ section.
6"
(15.2 cm)
Steam
Head
11"
(27.9 cm)
K-1569/K-1669
K-1683/K-1684 K-1681/K-1682
60"
(152.4 cm)
4-1/2"
(11.4 cm)
K-1688
Control
Kit
Control
Kit
Control
Kit
12" (30.5 cm)
6" (15.2 cm)
Steam
Head
Steam
Head
Steam
Head
60"
(152.4 cm)
Drain End
6"
(15.2 cm)
60"
(152.4 cm)
K-1687
11"
(27.9 cm)
21"
(53.3 cm)
21"
(53.3 cm)
Control
Kit
4-1/2"
(11.4 cm)
60"
(152.4 cm)
Drain End
K-9486/K-9489
4-1/2"
(11.4 cm)
21" (53.3 cm)
60"
(152.4 cm)
Drain End
K-9488/K-9496
Steam
Head
Steam
Head
21" (53.3 cm)
Steam
Head
6"
(15.2 cm)
6"
(15.2 cm)
Steam
Head
Control
Kit
4-1/2"
(11.4 cm)
60"
(152.4 cm)
6"
(15.2 cm)
Steam
Head
21" (53.3 cm)
Control
Kit
60"
(152.4 cm)
21" (53.3 cm)
Steam
Head
6"
(15.2 cm)
Control
Kit
4-1/2"
(11.4 cm)
Drain End
Steam
Head
Kohler Co. 3 1045320-2-E
