TP-6833 2/16 47Section 4 Communication and Accessory Connections
GM89713
1. Input/output terminal strip TB1
1
TB1
12
6
1
7
MLB Input 2
(alternate
connection)
#12--24 AWG wire
0.5 Nm (4.4 in. lb.)
MLB
Input 1
MPAC Controller Circuit Board

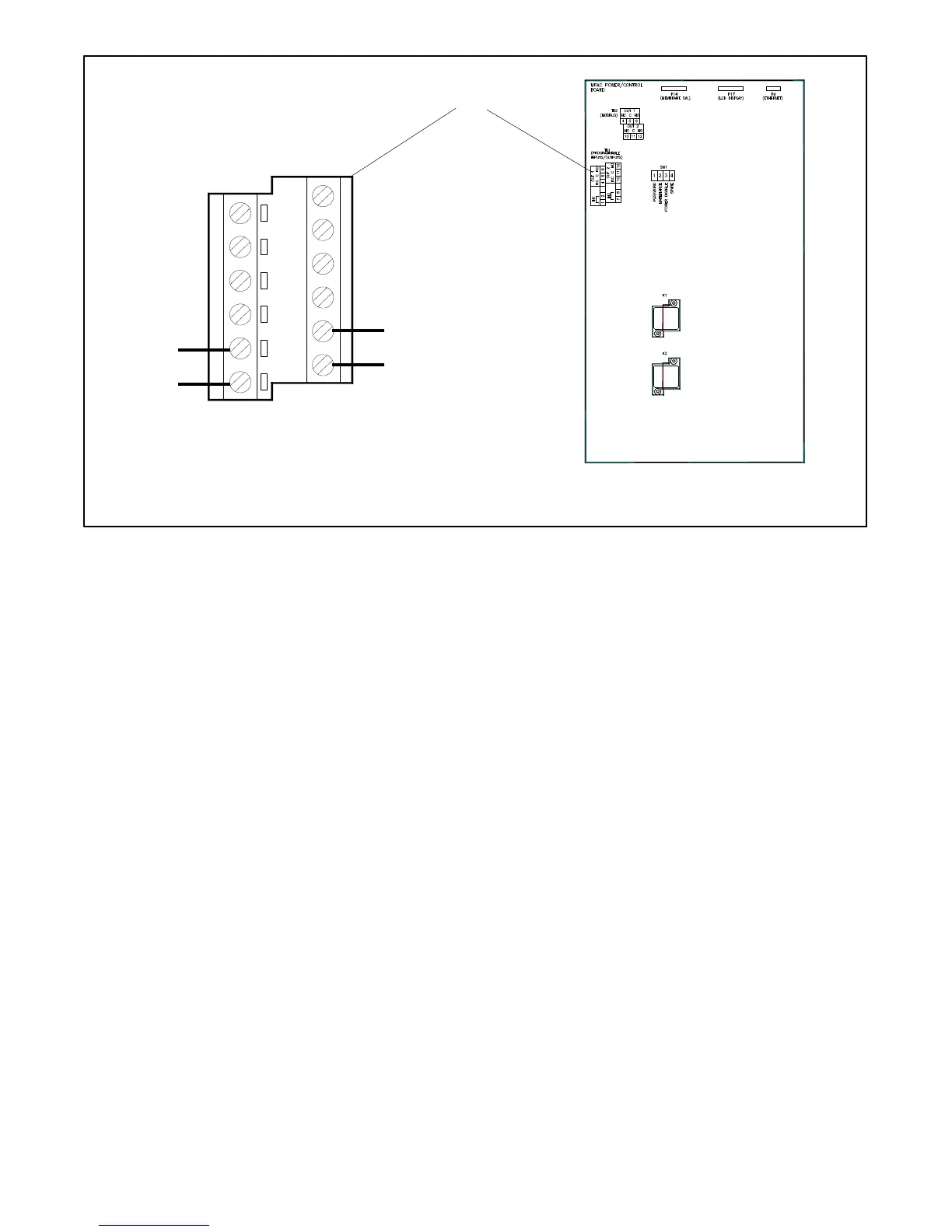

Figure 4-23 Forced Transfer to Off Input Connection (for factory-installed load shed kits)
