6.4 Fuel filter cartridge replacement
•
Before proceeding with operation, read Par. 3.2.2.
Warning
• In case of low use replace il 12 months.
• To replace the cartridge with Option B filter, it is necessary to
use the ST_55 tool cod. ED0014604590-S.
• For disposal of oil filter cartridge and fuel filter refer to Par. 6.6
DISPOSAL and SCRAPPING
1.
Procure a suitable container to collect the fuel.
Important
•
Do not fill the new cartridge A with fuel.
Option A
1. Rotate the filter A to take it to the unlocked position and remove
it.
2. Lubricate the gasket C.
3.
Assemble the filter A on the support B and rotate it until reaches
the lock position.
Option B
1. Unscrew the ring nut H using the ST_55 tool and remove the
cartridge A.
2. Lubricate the gasket C of the new cartridge A.
3. Insert the ring nut H on the new cartridge A and mount the new
cartridge A on the support B.
4. Tighten the ring nut H using the ST_55 tool (tightening torque 10
Nm).

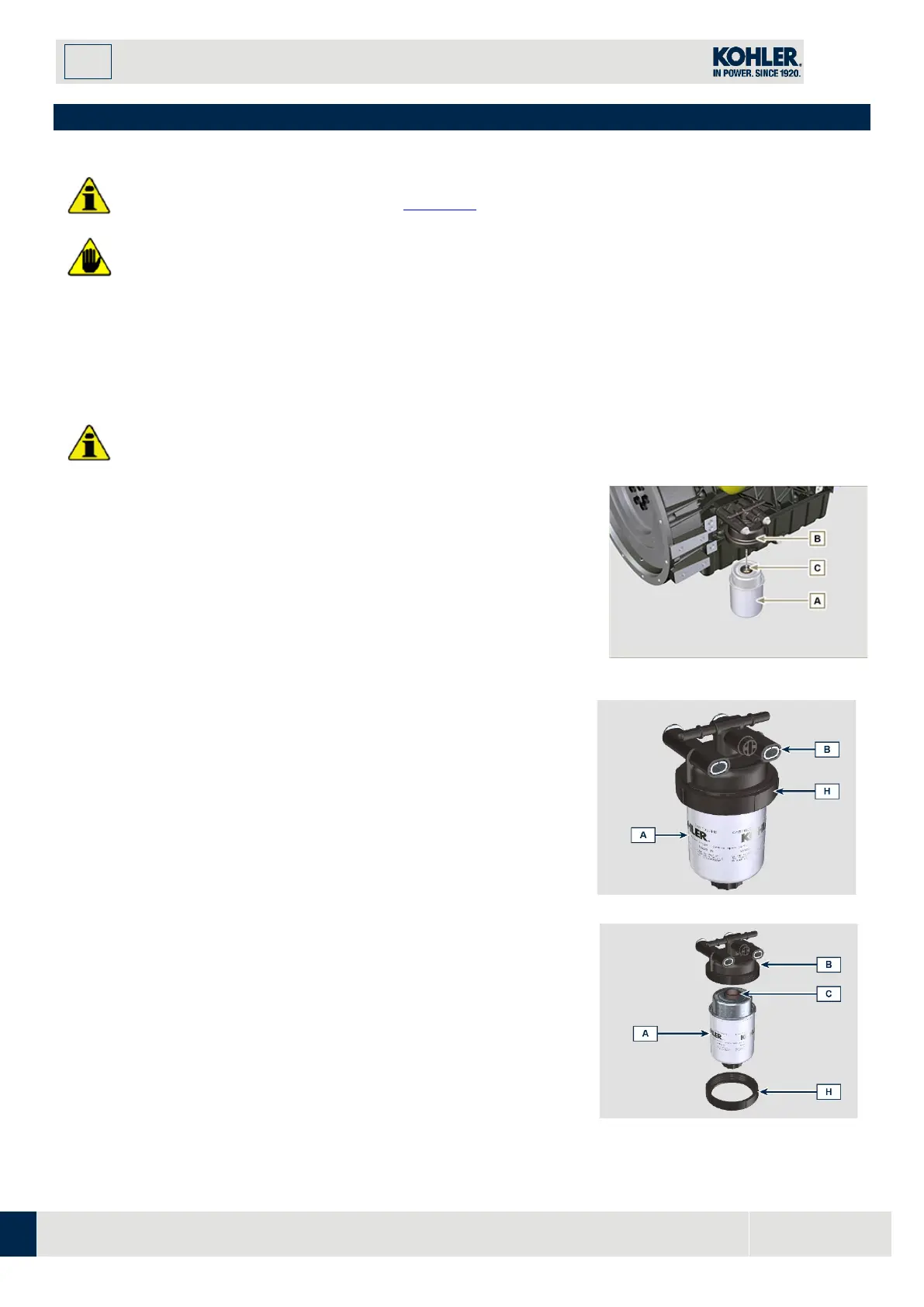

Fig 6.8a
