30
6
_08
A
B
A
F
E
B
D
C
MIN
MAX
B B
6.4
6.5
6.6
INFORMATION ABOUT REPLACEMENTS
EN

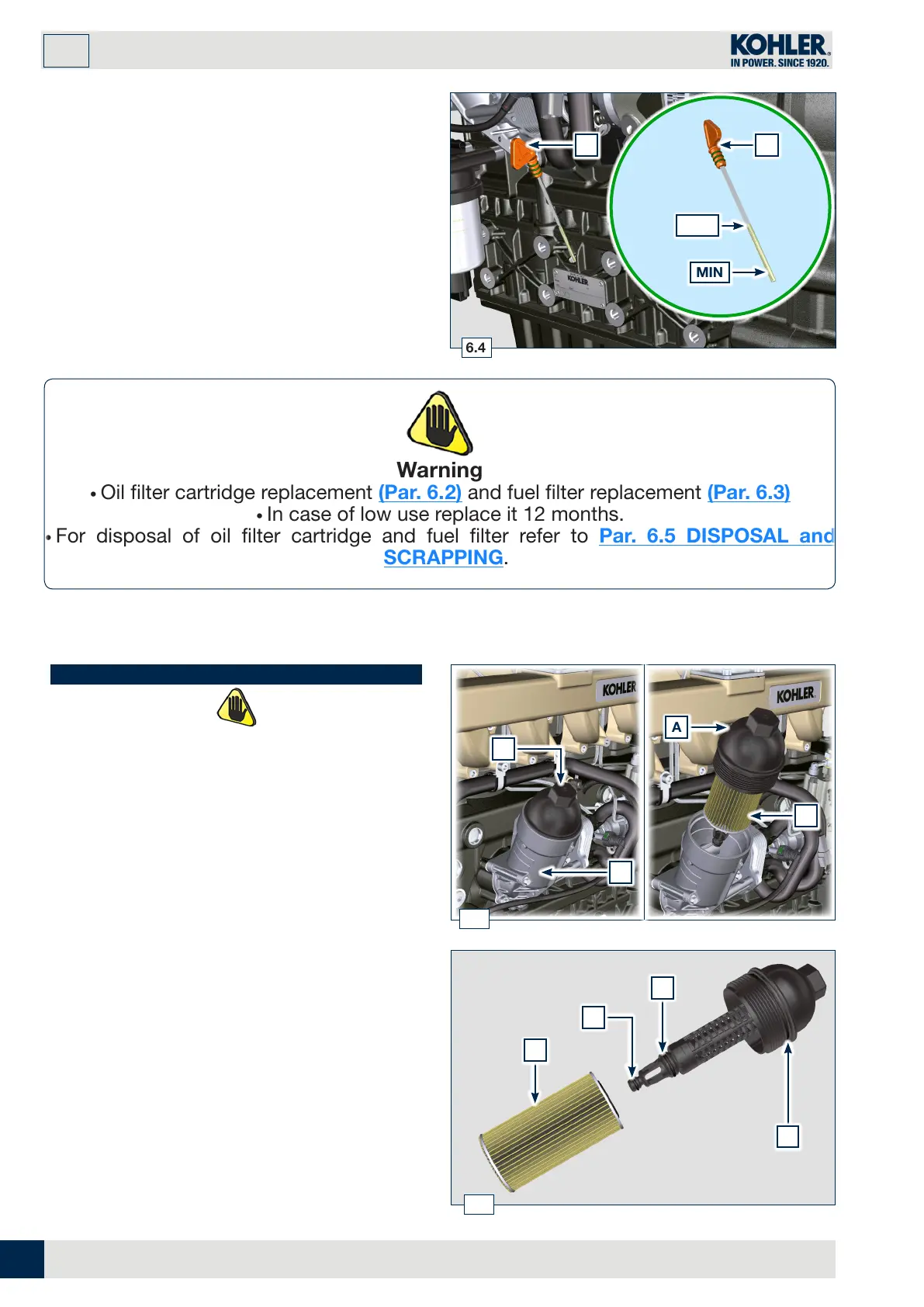

6.2 Oil filter cartridge replacement
Warning
• Electric/pneumatic screwdrivers are forbidden.
1. Unscrew cartridge holder cover A by performing three
complete turns and wait 1 minute.
NOTE: this operation allows to oil contained in
the support F to flow into the oil sump in
the correct way.
2. Unscrew cartridge holder cover A and check that the oil
in the lub. oil filter support F has flowed towards the oil
sump.
3. Remove the cap A as well as the oil cartridge B from the
oil filter support.
4. Remove and replace the oil cartridge B with a new one.
- Remove and replace the gaskets C, D and E with new ones.
Warning
• Oil filter cartridge replacement (Par. 6.2) and fuel filter replacement (Par. 6.3)
• In case of low use replace it 12 months.
• For disposal of oil filter cartridge and fuel filter refer to Par. 6.5 DISPOSAL and
SCRAPPING.
10. Upon completion, reinstall the oil dipstick B completely.
11. Tighten the cap A.
ED0053030120
