6
31
_08
B
A
A
C
F
D
E
A
F
G
H
B
B
A
F
E
G
6.7
6.8
6.9
6.10
INFORMATION ABOUT REPLACEMENTS
EN

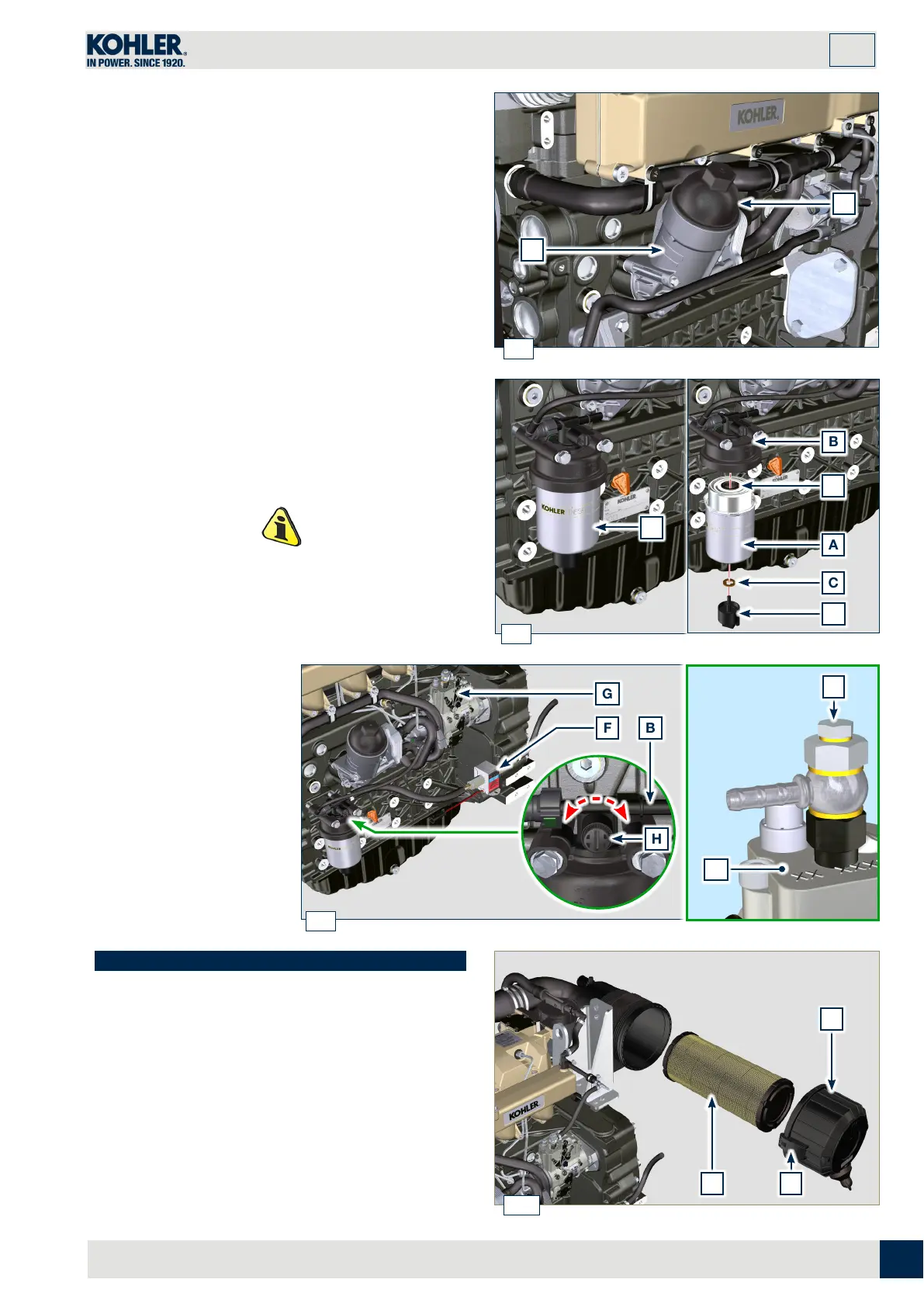

5. Fit and tighten the cover A on the oil filter support F,
tightening it with a torque wrench G (tightening torque of
25 Nm).
6.3 FUEL FILTER CARTRIDGE REPLACEMENT
1. Unscrew the filter cartridge A from the holder B.
2. Unscrew the fuel water sensor D.
3. Replace the gasket C.
4. Lubricate the gasket E.
5. Screw the new filter cartridge A.
Important
Do not fill the new cartridge A with fuel.
6. Procure a suitable container to collect the fuel.
7. Loosen the air bleeding screw F on fuel filter bracket B and the screw
E on the injection pump G
8. Turn the key on the control
panel to the ON position.
- The electric pump F sends
fuel to the filter and then the
injection pump
- The air inside the circuit and
the filter will begin to escape
from the screw H and E.
9. Tighten the bleeding screw
H and E (tightening torque of
1.5 Nm) when the fuel begins
to flow.
6.4 Air filter cartridge replacement
NOTE: Component not necessarily supplied by
KOHLER.
1. Release the two fastenings F of the cover A.
2. Remove the cartridge B.
3. Reinstall:
- the new cartridge B.
- the cover A checking the right tightness of fastenings F.
ED0053030120
