INFORMATION ABOUT REPLACEMENTS
6
41
EN
Internal Communication: For internal & partner use only.
Option B
1. Unscrew the ring nut H using the ST_55 tool
and remove the cartridge A.
2. Lubricate the gasket C of the new cartridge A.
3. Insert the ring nut H on the new cartridge A
and mount the new cartridge A on the support
B.
4. Tighten the ring nut H using the ST_55 tool
(tightening torque 10 Nm).

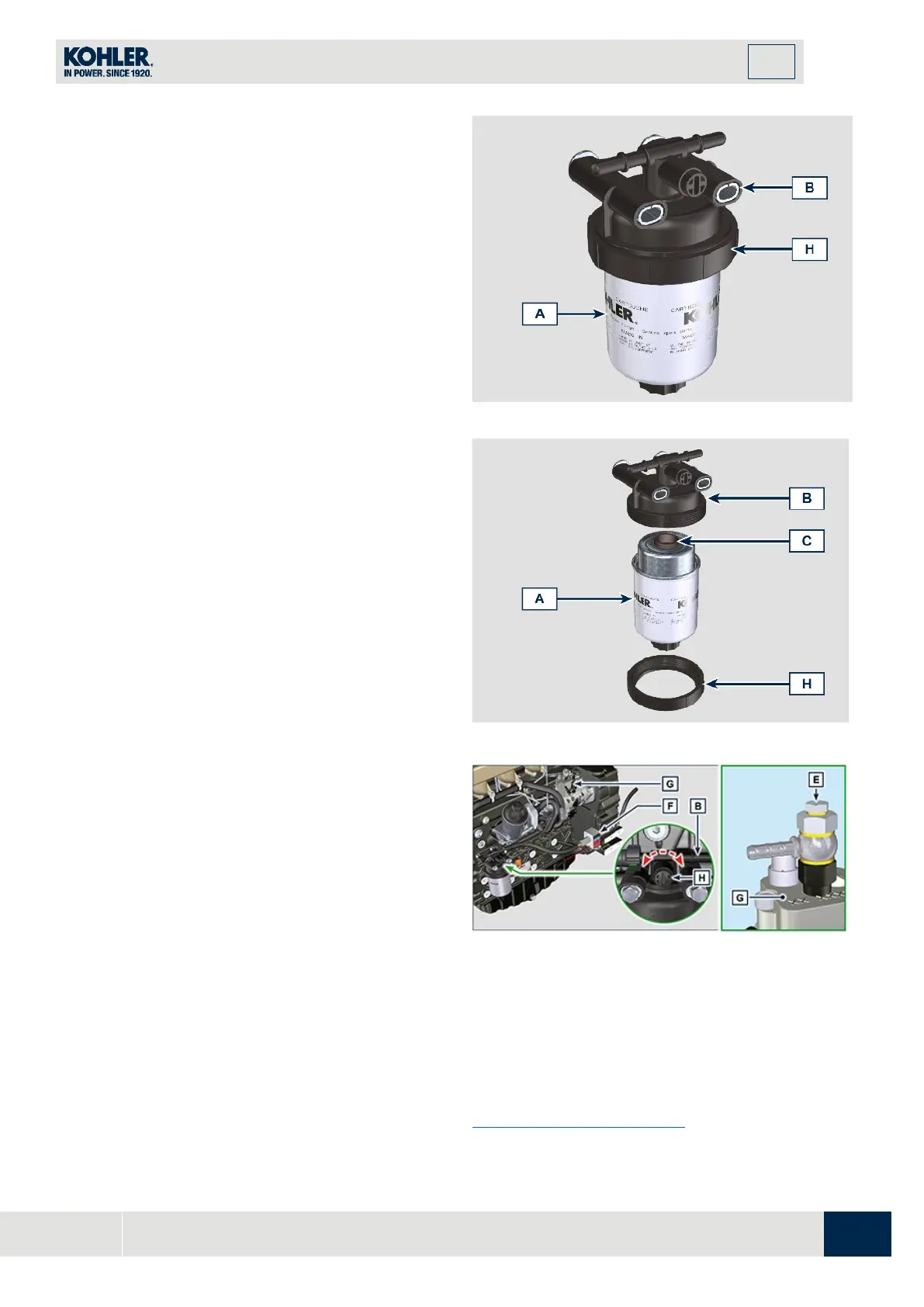

Fig 6.8a
1. Turn the key on the control panel to the ON
position.
The electric pump F sends fuel to the filter B
and then the injection pump G.
2. Loosen the air bleeding screw F on fuel filter
bracket B and the screw E on the injection
pump G.
3. Procure a suitable container to collect the fuel.
4. Loosen the air bleeding screw H on fuel filter
bracket B.
The air inside the circuit and the filter will begin
to escape from the screw H.
5.
Tighten the bleeding screw H and E (tightening
torque of 1.5 Nm) when the fuel begins to
flow.
Fig 6.9
NOTE:
Click on the icon to play the procedure.
https://youtu.be/meko2s8_-U0
