6.2 Oil filter cartridge replacement
•
Before proceeding with operation, read Par. 3.2.2
Warning
•
Electric/pneumatic screwdrivers are forbidden.
•
In case of low use replace il 12 months.
•
For disposal of oil filter cartridge and fuel filter refer to Par. 6.5
DISPOSAL and SCRAPPING.
1.
Unscrew cartridge holder cover A by performing three
complete turns and wait 1 minute..
NOTE
: this operation allows to oil contained in the support
F
to flow
into the oil sump in the correct way.
2.
Unscrew cartridge holder cover A and check that the oil in the
lub. oil filter support F has flowed towards the oil sump.
3.
Remove the cap A as well as the oil cartridge B from the oil filter
support.

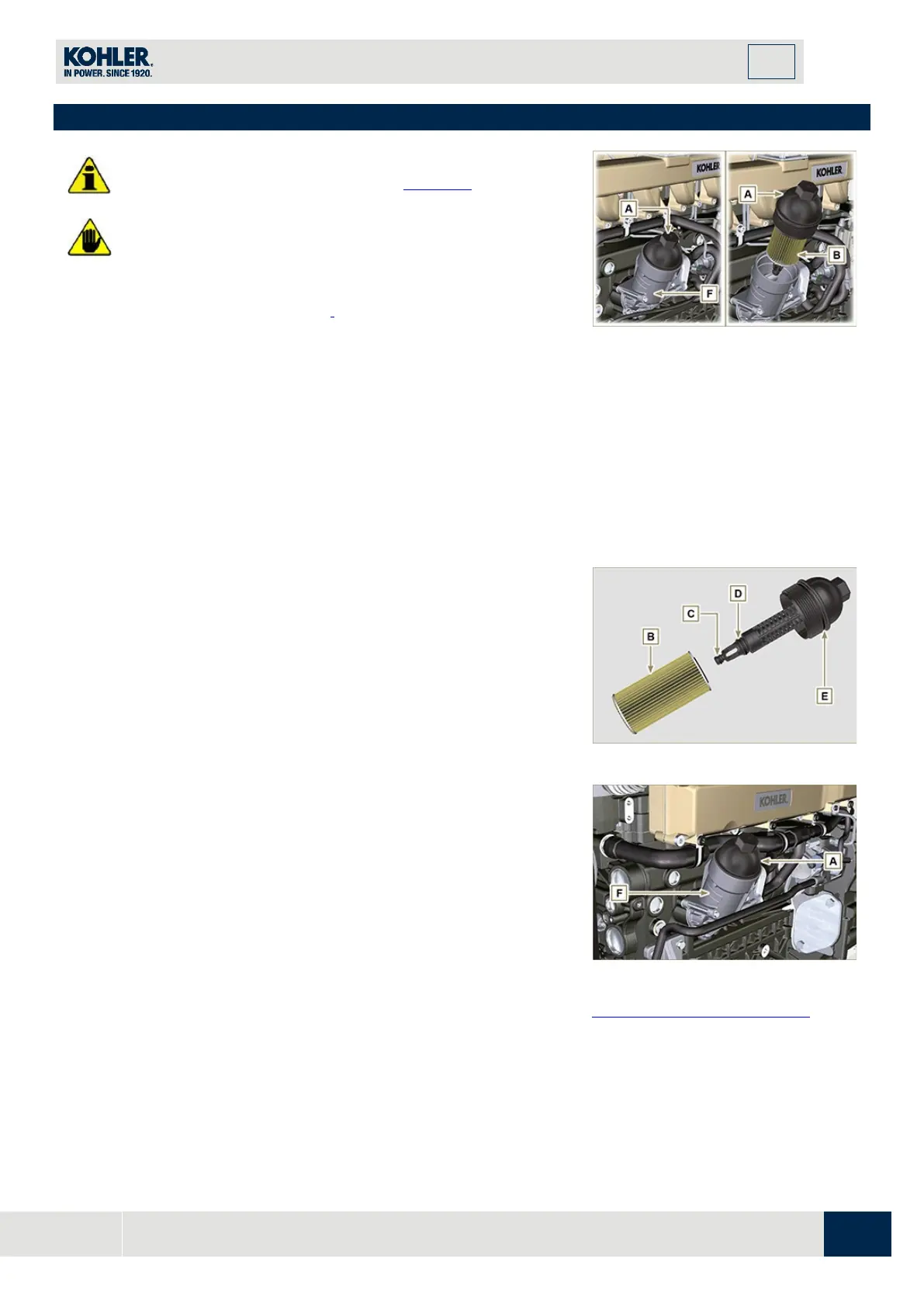

Fig 6.5
4.
Remove and replace the oil cartridge B with a new one.
Remove and replace the gaskets C, D and E with new ones.
5.
Fit and tighten the cover A on the oil filter support F, tightening
it with a torque wrench G (tightening torque of 25 Nm).
NOTE: Click on the right to play the procedure.
https://youtu.be/lGMrGAceKXE
