Kohler KG2204T

12 Service Assistance TP-6903 5/16a

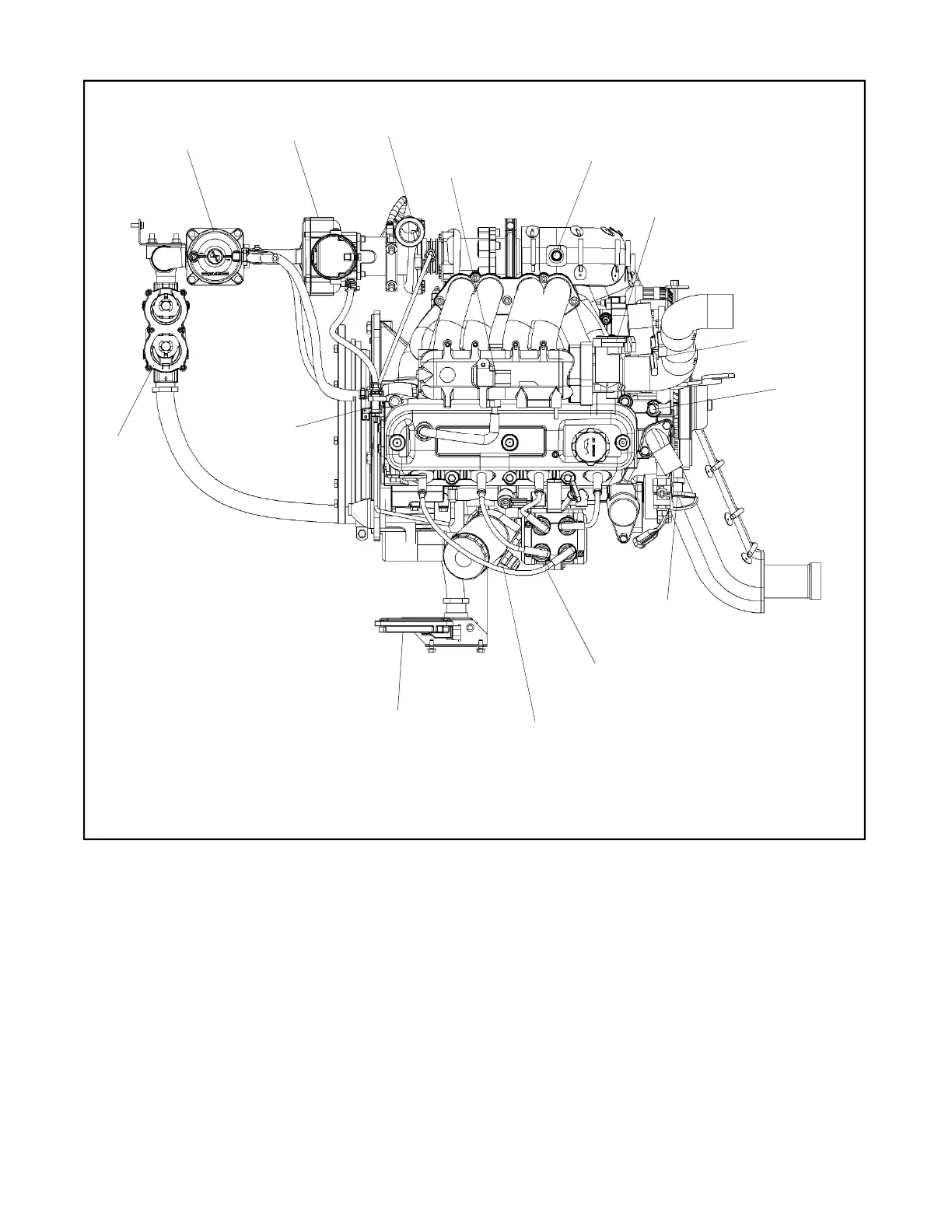

Figure 1-2 Fuel System Overview, KG2204T Turbocharged Engine
1. Fuel pressure regulator
2. Air-fuel mixer
3. Turbocharger
4. TMAP sensor
5. HEGO sensor
6. Throttle body
7. Additional MAP sensor
8. Coolant temperature sensor
9. Crankshaft position sensor
10. Ignition coil
11. Oil cooler adapter
12. ECM
13. Fuel control valve
14. Fuel shut-off valve
6
4
3
5
11
10
9
8
2
13
1
7
12
14
Note: Air Cleaner removed for clarity.
