Kohler KSS Series User Manual

TP-6447 10/1214 Section 2 Installation
3. Move the maintenance handle up or down as
shown in the corresponding figure to manually
operate the transfer switch. It should operate
smoothly without any binding. If it does not, check
for shipping damage or construction debris.
4. Return the transfer switch to the Normal position.
5. Remove the maintenance handle and return it to the
storage location.
1. Handle storage location
2. Insert handle here for manual operation
1
tp6225
2

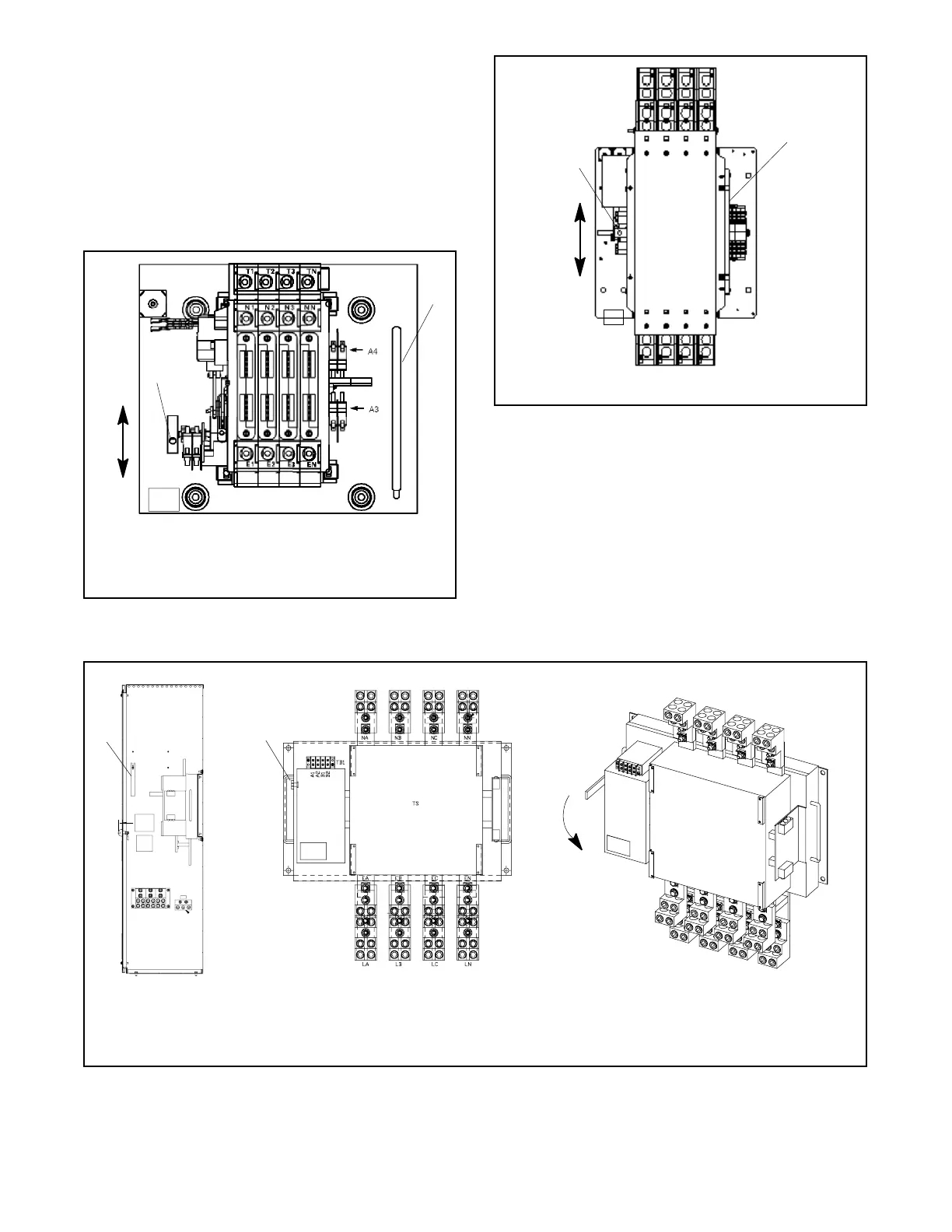

Figure 2-5 Manual Operation, 40--260 Amp
Standard-Transition Switches
tp6225
1
2
1. Handle storage location
2. Insert handle here for manual operation
Figure 2-6 Manual Operation, 400--600 Amp
Standard-Transition Switches
2
tp6447
1. Handle storage location inside enclosure
2. Shaft (attach handle here)
3. Move maintenance handle down and release to manually operate
3
1
Figure 2-7 Manual Operation, 800--1000 Amp Standard-Transition Switches
