8

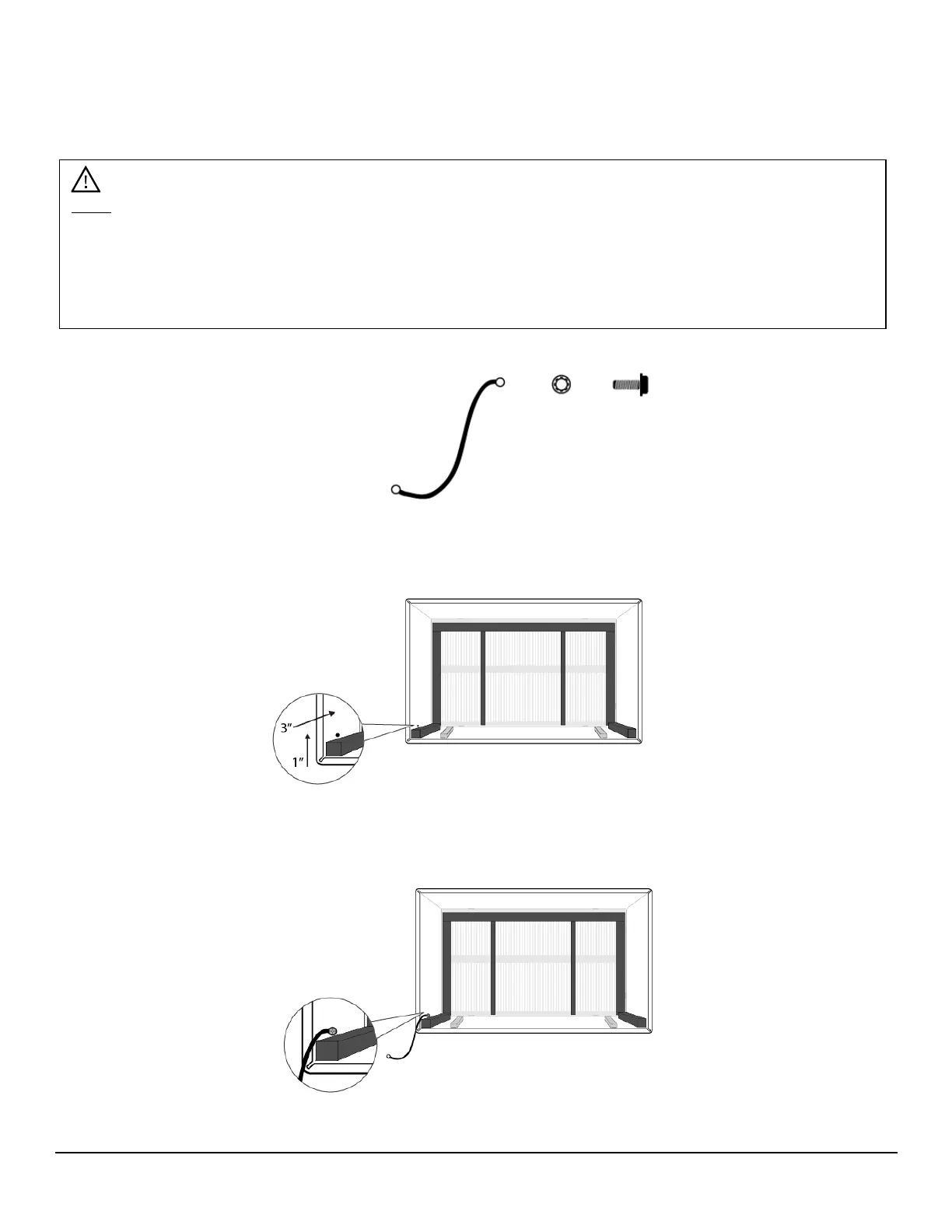

Prepare Ground Wire
To properly ground the air conditioner unit, the ground wire must be secured to the frame of the
wall sleeve. When the air conditioner unit is placed inside of the wall sleeve, this ground wire will
be attached to the air conditioner frame to allow for proper grounding of the air conditioner unit.
1. Locate the following parts:
• Grounding Screw (1)
• Toothed Grounding Screw Washer
• Ground Wire
2. As needed, use a drill and
1
/
8
” bit to drill a hole for the grounding screw. The hole needs to be
approximately 1” from the bottom and 3” from the front edge of the wall sleeve on the left side.
3. Attach one end of ground wire using 1 (one) Toothed Washer and 1 (one) Grounding Screw.
Note: This step may require the use of a drill with a
1
/
8
” drill bit. If your wall sleeve has been
previously installed, there may be no requirement to drill a new hole for the grounding screw. If
using the Koldfront wall sleeve (model WTCSLV), the hole should be pre-drilled for you.
Also, please note that additional fastener types may have been included and may be used to suit
your particular installation setup.
