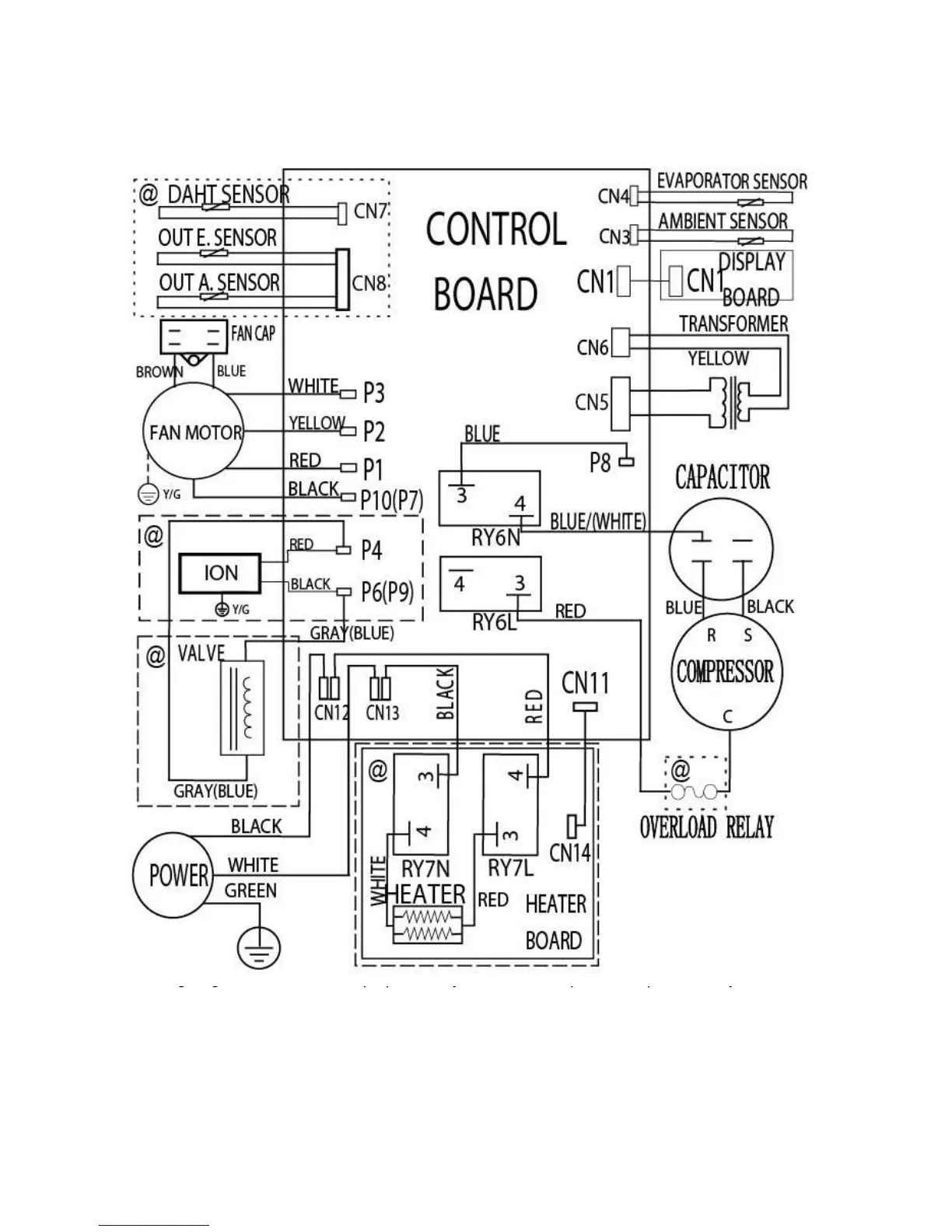

2 Wiring Diagram (All Models)
Note:
This wiring diagram is for illustration purposes only. The actual shapes of components may be different.
@ indicates optional components that are not included in all models.
