5
Section 2
Installation
Condensing Units
• Check the selected installation location to ensure that racks, braces, flooring, foundations, etc. are adequate to
support the condensing unit weight.
• The installation location is clean, dry, and level.
• Locate away from corrosive and noise sensitive atmospheres.
• Use the condensing unit skid and base when moving the unit. Do not remove unit from skid until the unit is moved to
the mounting location.

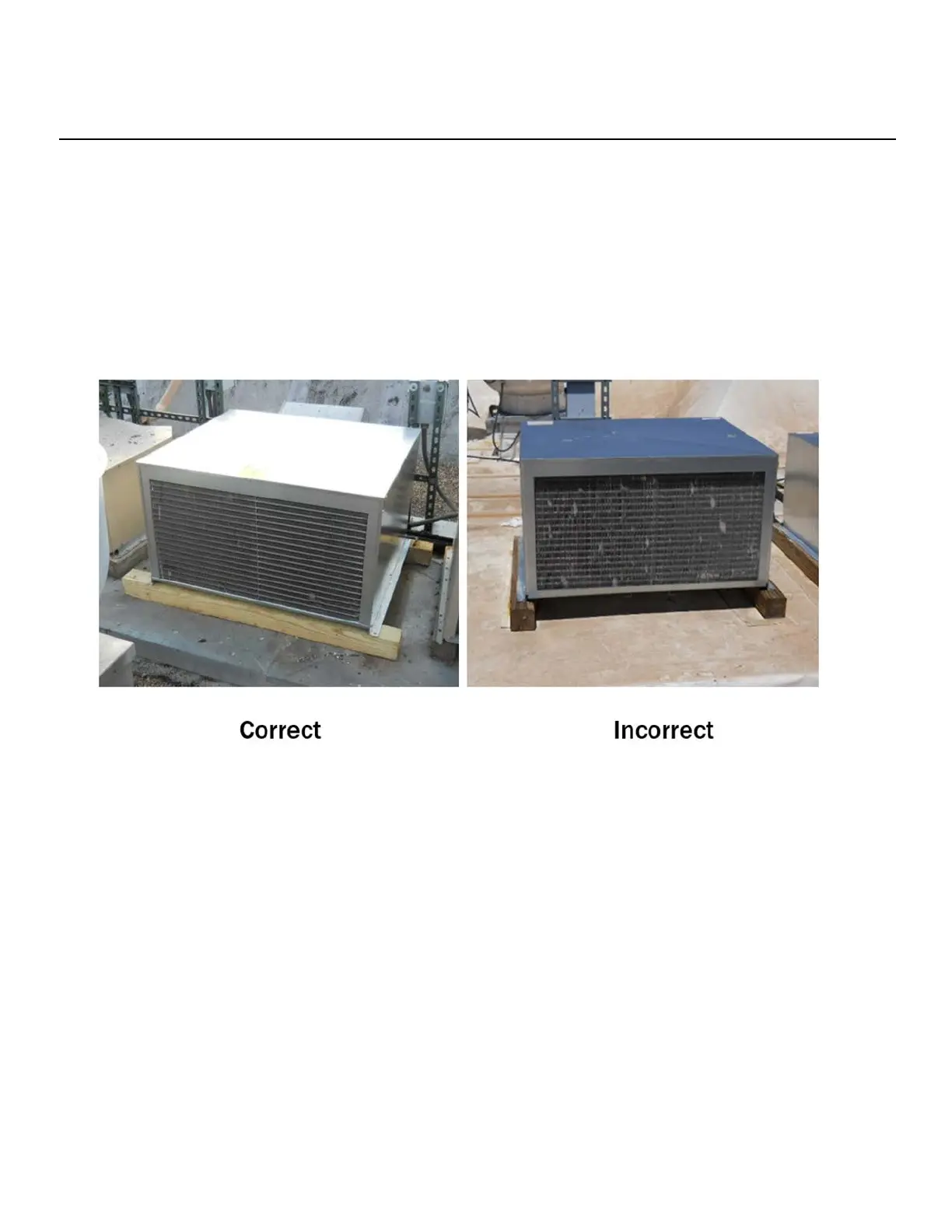

• Mount the condensing unit base to pads or structural rails using properly sized bolts through the unit base. Center of
condensing unit needs to be properly supported.
• Locate where there is a sufficient and unrestricted supply of clean ambient air.
• Locate where this is adequate space for the removal of the heated discharged air from the condensing unit area.
• Do not position multiple units so that discharge air from one unit is blowing into the condenser inlet air of the other
unit.
• All sides of the unit should be positioned a minimum distance equal to the total width of the condensing unit away
from any other unit, wall, or obstruction.
• Check the selected installation location to ensure that racks, braces, flooring, foundations, etc. are adequate to
support the condensing unit weight.
• The installation location is clean, dry, and level.
• Locate away from corrosive and noise sensitive atmospheres.
• Use the condensing unit skid and base when moving the unit. Do not remove unit from skid until the unit is moved to
the mounting location.
• Mount the condensing unit base to pads or structural rails using properly sized bolts through the unit base. Center of
condensing unit needs to be properly supported.
