Kolver K-DUCER KDU-NT - Screwdriving Phases

Vers. 111422 32
Screwdriving Phases

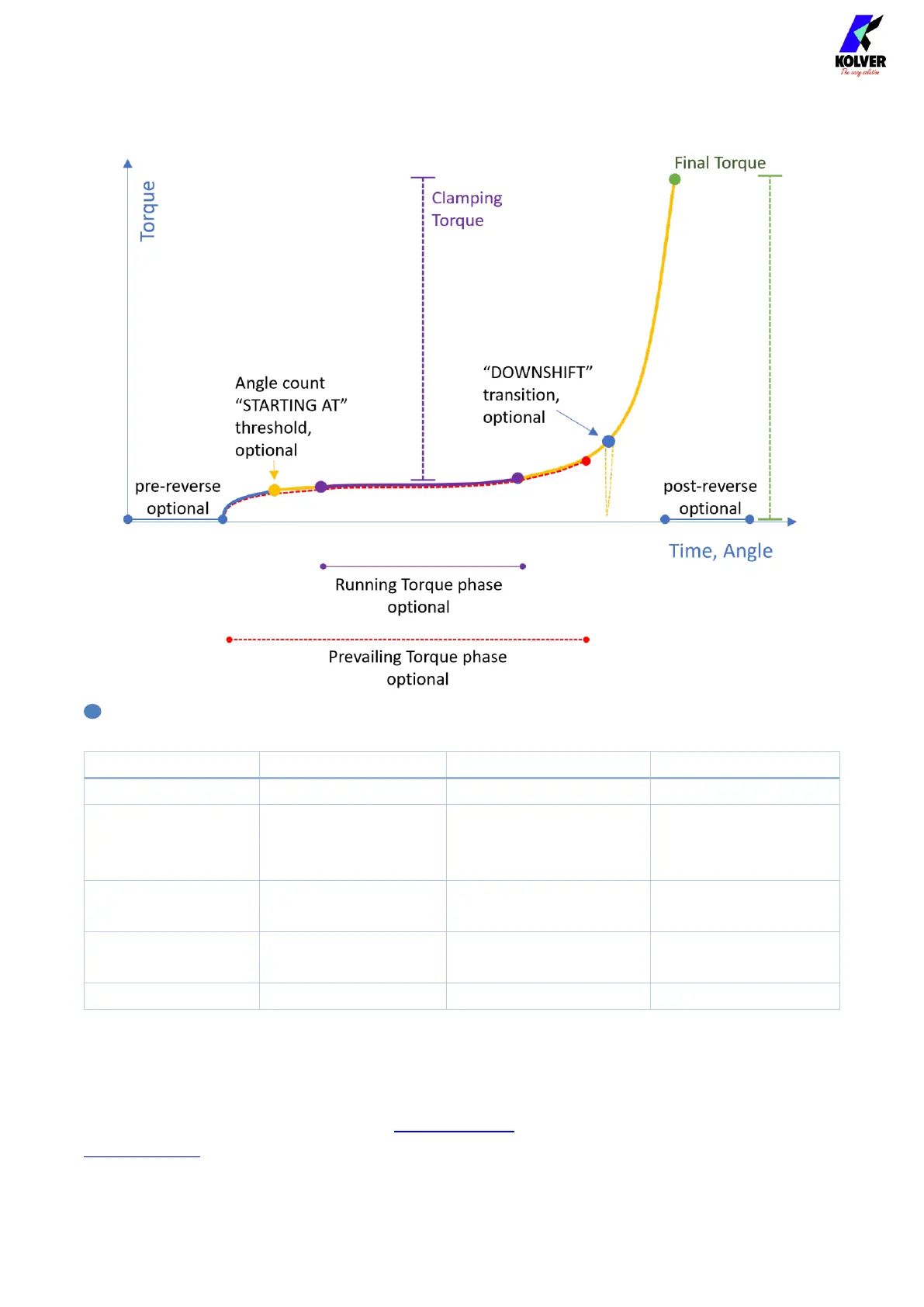

All colored circles in the diagram above represent configurable targets or thresholds.
Phase
Speed
Halting Torque
Halting Angle
Pre-reverse
Reverse speed
Reverse Torque
Pre-reverse setting
Prevailing Torque
Tightening speed*
Highest torque
achievable by KDS
screwdriver
Max angle (TC)
Target angle (AC)
Running Torque
Tightening speed*
Target torque (TC)
Max torque (AC)
Max angle (TC)
Target angle (AC)
Tightening
Tightening speed*
Target torque** (TC)
Max torque (AC)
Max angle (TC)
Target angle (AC)
Post-reverse
Reverse speed
Reverse Torque
Post-reverse setting
TC = Torque Control Mode (i.e., Torque Targeting Mode)
AC = Angle Control Mode (i.e., Angle Targeting Mode)
* the tightening speed is equal to the FINAL SPEED after the Downshift threshold or if the
DOWNSHIFT function is OFF, otherwise it is equal the DOWNSHIFT RPM setting
** plus the running torque value, if Running Torque Compensate mode is enabled
