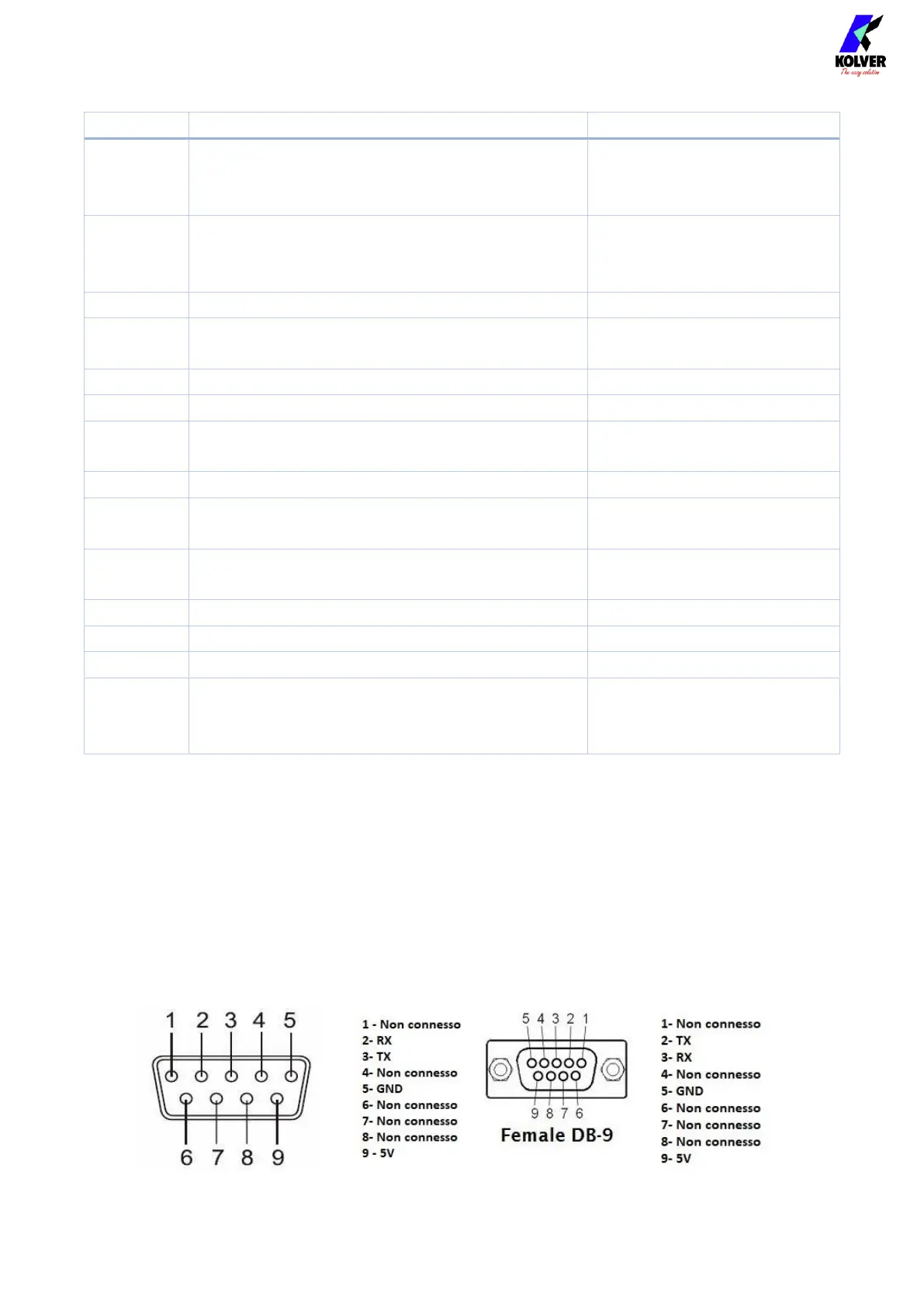

Kolver K-DUCER KDU-NT - Page 34

Vers. 111422 34
Section
Description
Example
Barcode
Printout of the scanned barcode. In dual
barcode modes, only the serial number
barcode is printed.
BC: 7612320103052
Result
OK or NOK depending if tightening
completed respecting the configured
parameters
OK
Program
The program number used for the tightening
PR: 8
Model
The screwdriver model used for the
tightening
KDS-PL10
Serial Nr
The serial number of the screwdriver
s/n: 1814914
Target
The target torque or angle
TARGET: 2.0Nm
Screw
Time
The duration of the tightening in seconds
ST: 1.23
Speed
The closing speed of the tightening
S: 600rpm
Screw
count
Number of successfully tightened screws / total
number of screws in program
Screw: 1/8
Sequence
Current sequence and program within
sequence (program is positional: current/total)
Seq: 1/3
Torque
Final torque of the tightening
T: 1.99Nm
Angle
Final angle of the tightening
A: 114deg
Date-time
Date time of the tightening
18/01/18 17.44.50
Notes or
Errors
Notes such as “PROGRAM END” for OK
results, or error details such as “Err Angle
Max” for NOK results
PROGRAM END, or
Err Angle Max
For example:
BC: 7612320103052 OK PR: 8 KDS-PL10 s/n: 1814914 TARGET: 2.0Nm ST:
1.23 S:600rpm Screw:1/8 Seq: A 1/1 T: 1.99Nm A: 114deg 18/01/18
17.44.50
NOK PR:26 KDS-MT1.5 s/n: 1964211 TARGET:10.00lbf.in ST: 10.166
S:300rpm Screw:0/7 Seq:1/1 T: 0.00lbf.in A: 20008deg 20/02/30
11.33.10 Err Angle Max
